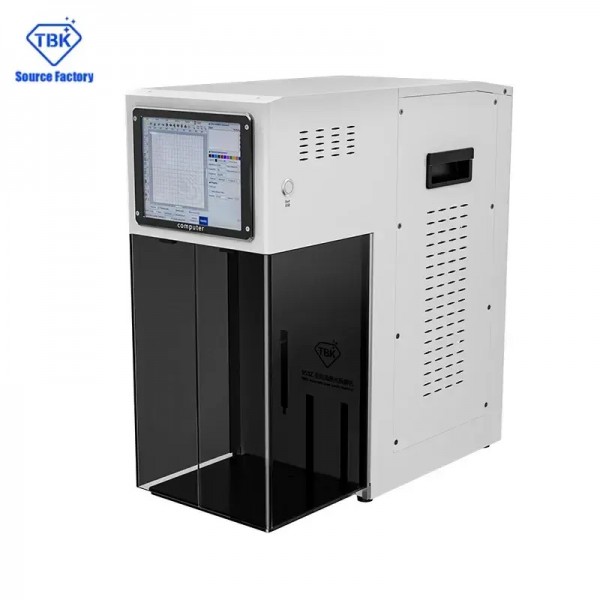

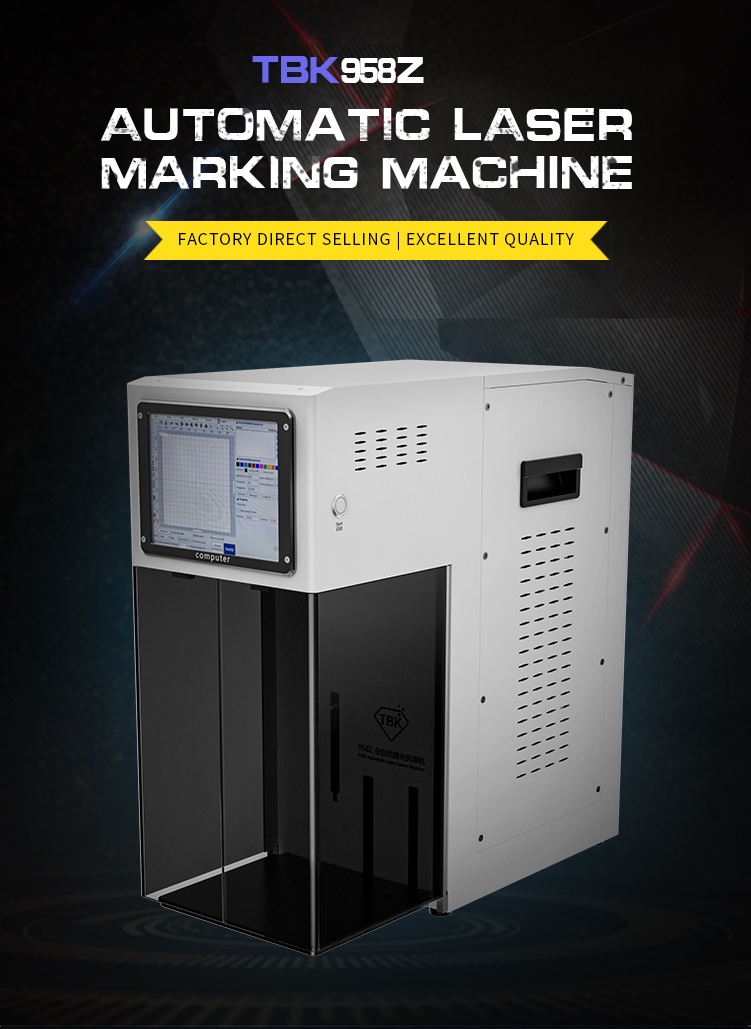

TBK-958Z | Dual-Door All-in-One 5W UV Phone Laser Machine with Built-in Computer | For iPhone Back Glass Repair, Metal & Logo Engraving

  • Product Code: TBK 958Z UV Phone Laser Machine
  • Availability: In Stock
  • 2 950.00$


TBK-958Z | Dual-Door All-in-One 5W UV Phone Laser Machine with Built-in Computer | For iPhone Back Glass Repair, Metal & Logo Engraving.


The TBK-958Z is a versatile and efficient automatic laser engraving machine designed for a wide range of applications. Its unique dual-door design provides a larger working area and more convenient access for various projects. While it excels as a specialized tool for professional mobile phone repair—capable of removing the back glass from a mobile phone in 4-8 minutes—its capabilities also extend to detailed engraving on numerous materials. With its high-precision laser, the TBK-958Z can easily etch designs, logos, photos, and text onto objects made from metal, plastic, wood, and leather. The machine integrates a user-friendly HD computer and features advanced functions like automatic smart focus, making it a fast, accurate, and ideal all-in-one solution.

High Efficiency: Removes iPhone back glass in approximately 2 minutes.
Primary Application: Specialized for iPhone back glass removal for efficient repairs.

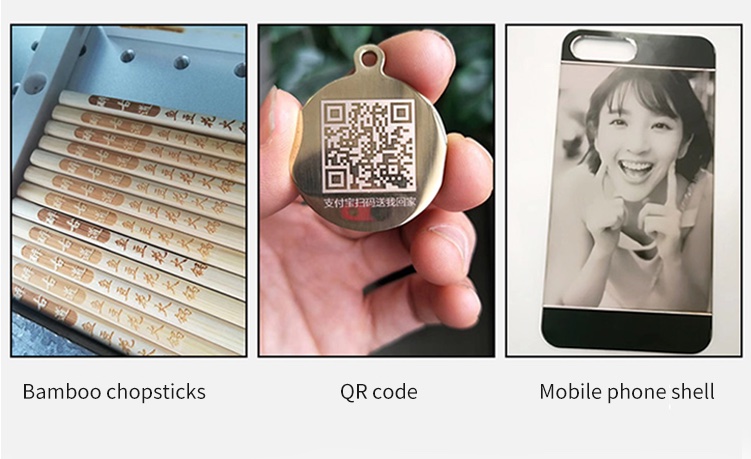

Versatile Engraving: Capable of engraving and etching on a wide variety of materials, including metal, plastic, acrylic, stainless steel, wood, and leather.
Design & Usability:

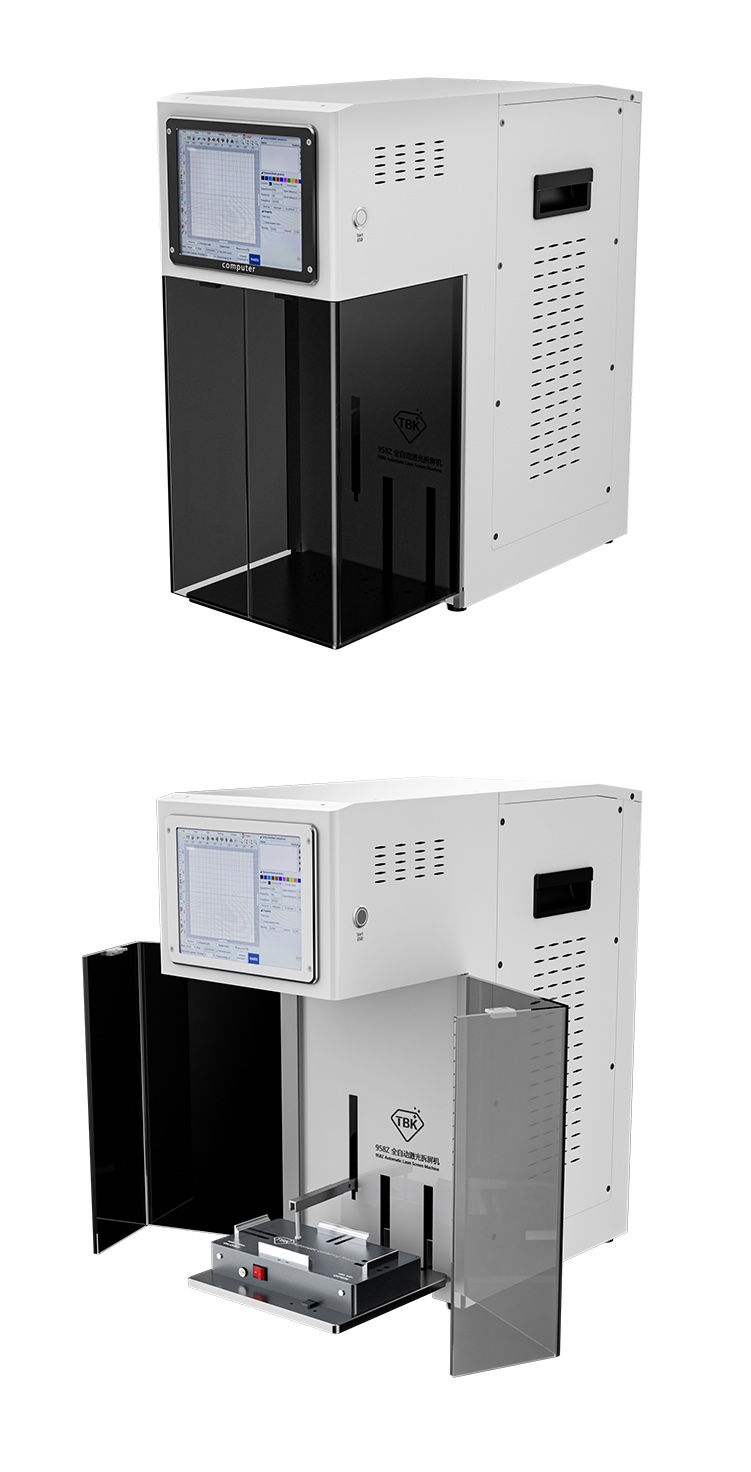

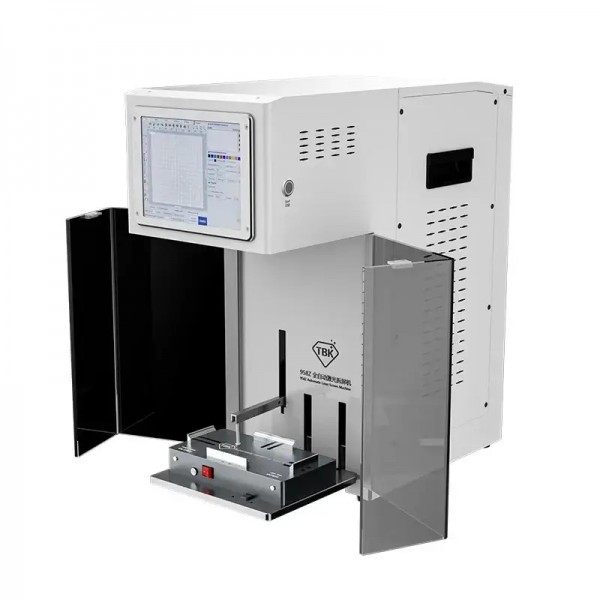

Dual-Door Design: Provides a larger working area and convenient, easy access.

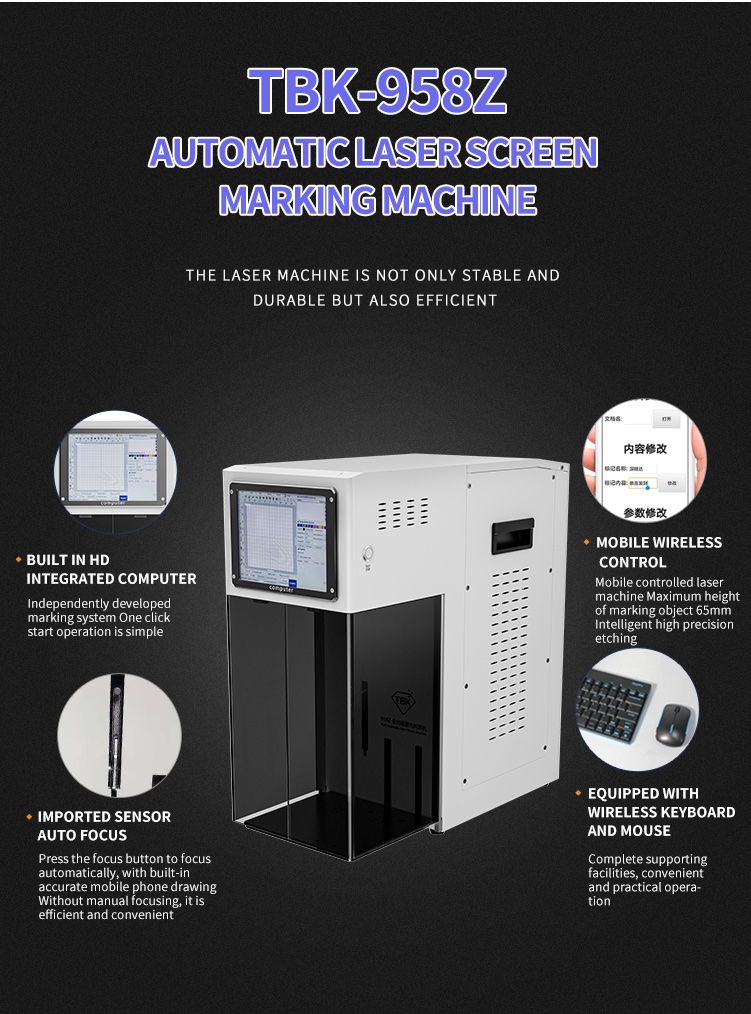

All-in-One Design: Features a built-in HD integrated computer for simple, one-click operation.

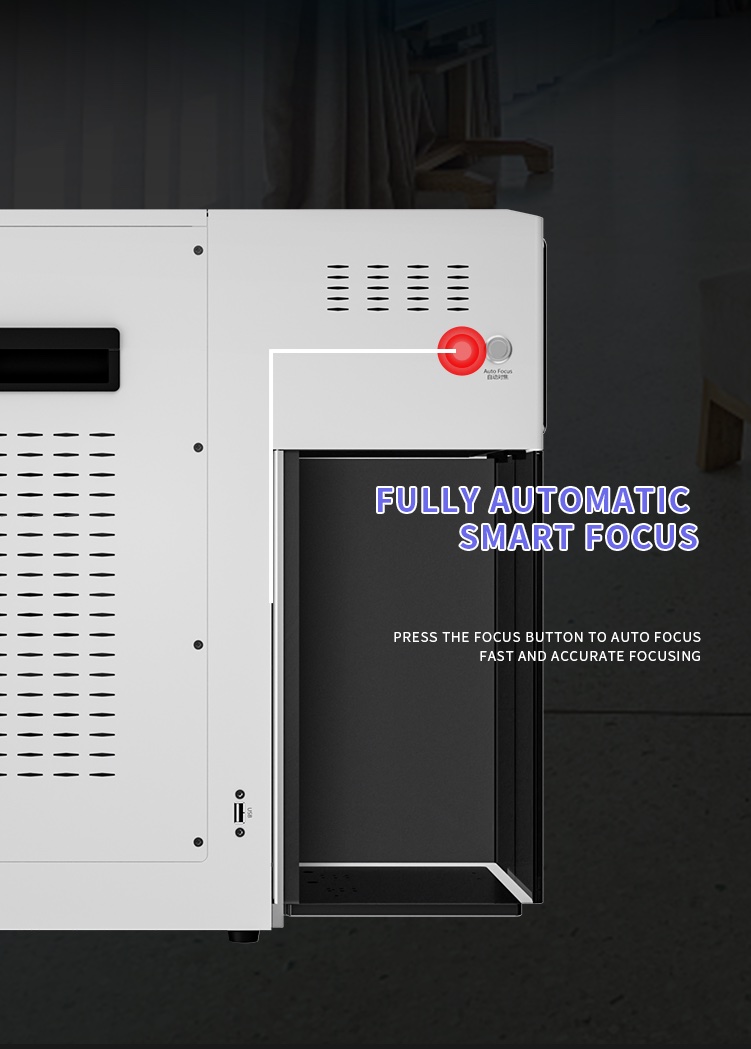

Automatic Smart Focus: Employs an imported sensor to automatically focus the laser with the press of a button.

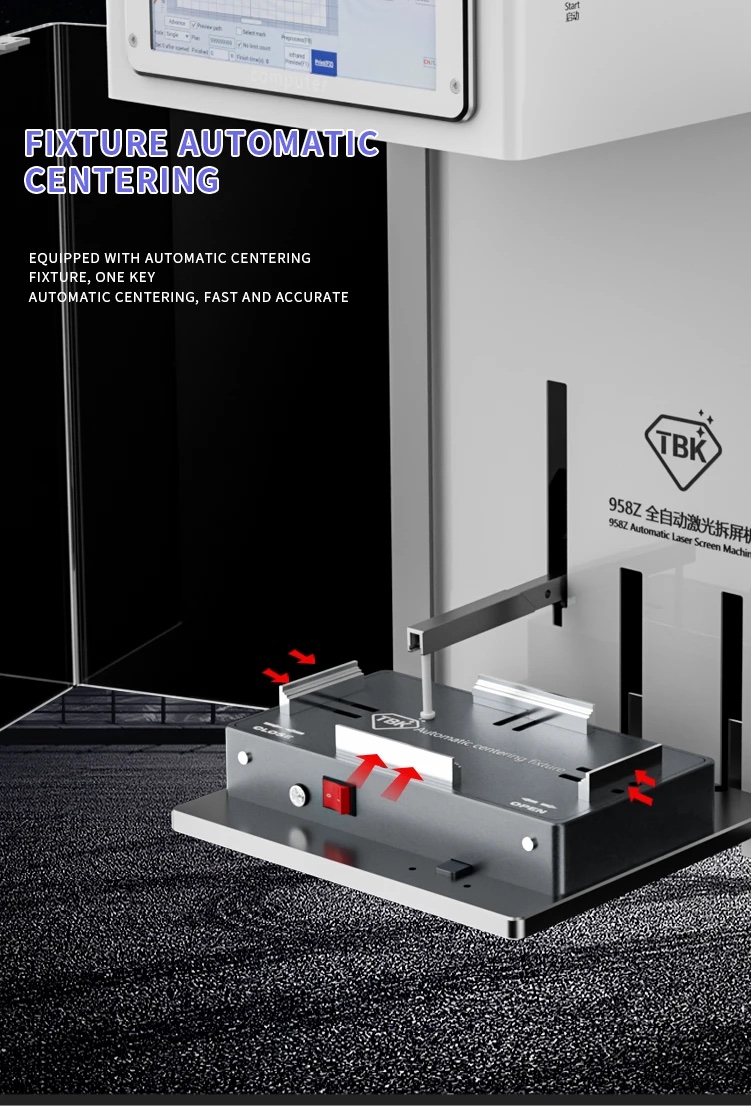

Fixture Automatic Centering: Includes an automatic centering fixture to securely and precisely position objects.

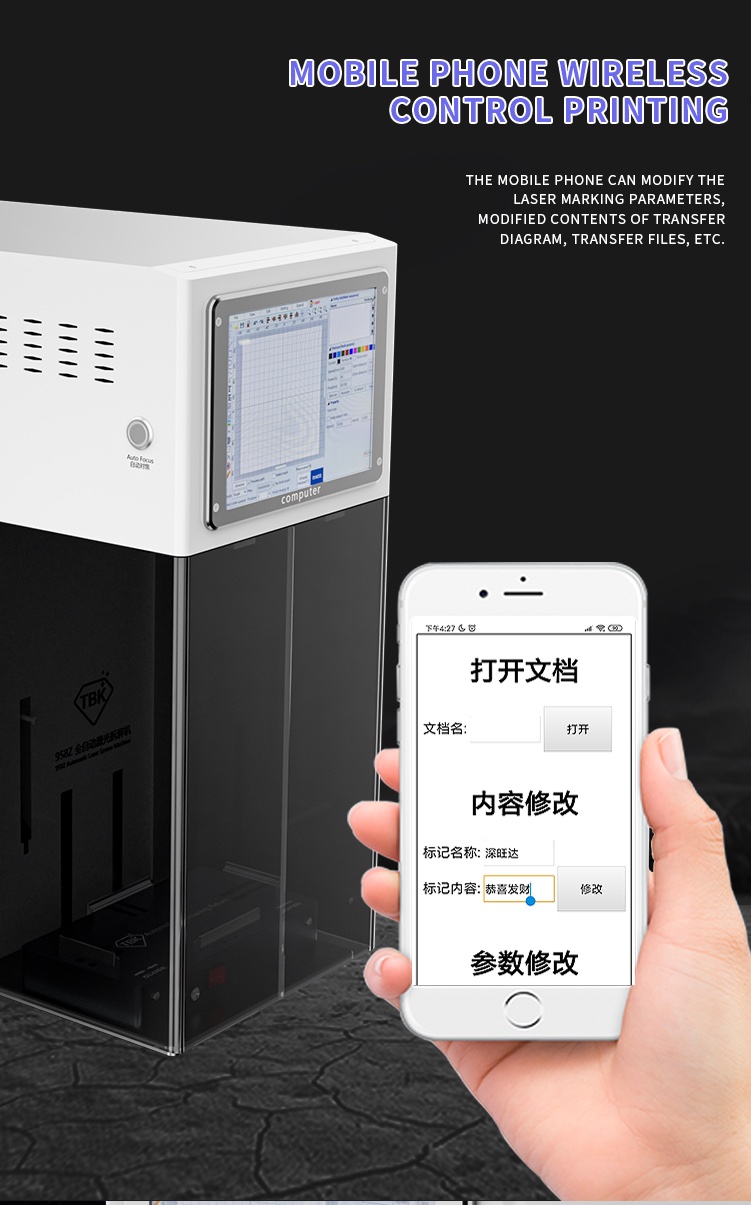

Wireless Control: Allows for operation, file transfers, and parameter adjustments from a mobile phone.
Included Peripherals: Comes complete with a wireless keyboard and mouse.

Technical Specifications

Laser Power: 5W
Marking Speed: ≤7000 mm/s
Marking Accuracy: ≤0.1 mm

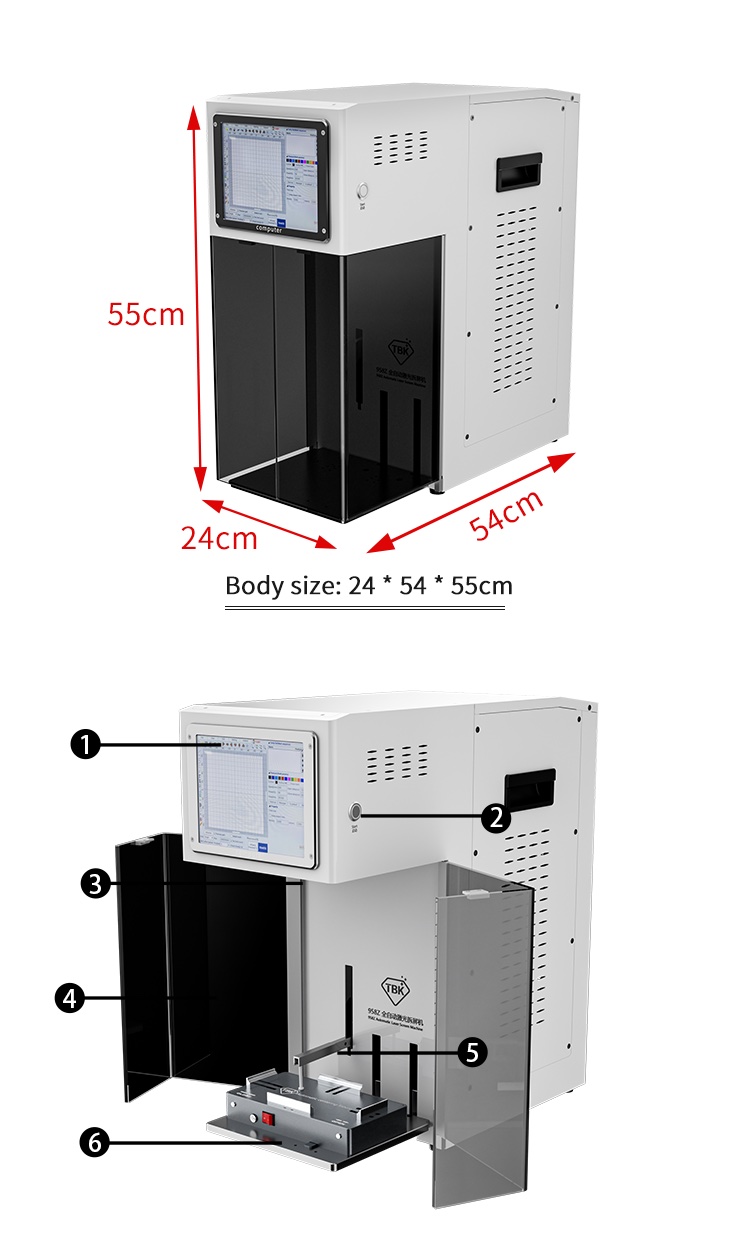

Product Dimensions: 24cm * 54cm * 55cm
Net Weight: 33kg

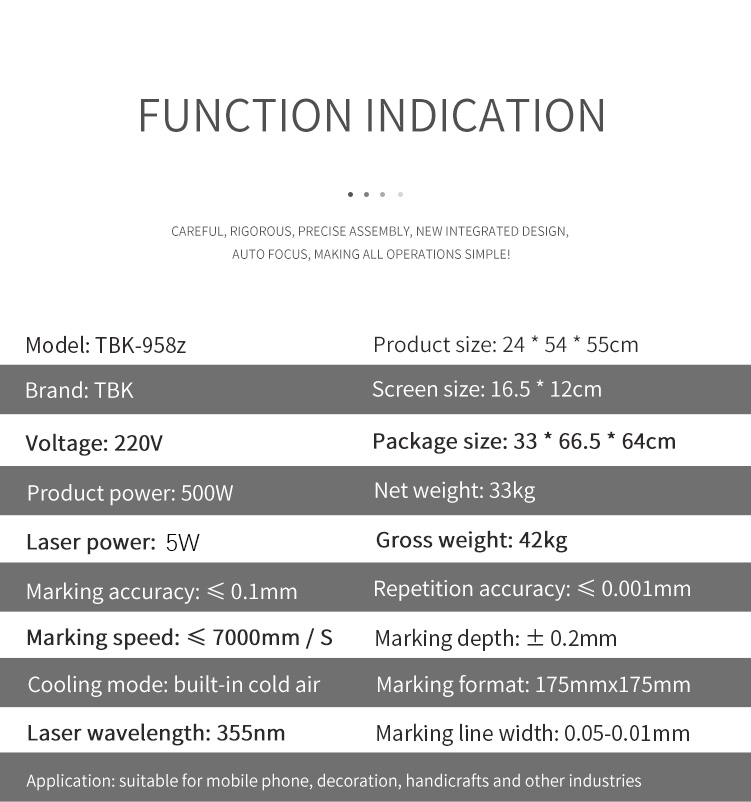

General Information
Brand: TBK
Model: TBK-958Z
Physical Characteristics
Product Dimensions: 24cm * 54cm * 55cm
Package Dimensions: 33cm * 66.5cm * 64cm
Screen Size: 16.5cm * 12cm
Net Weight: 33kg
Gross Weight: 42kg
Performance & Technical Data
Product Power: 500W
Laser Power: 5W
Voltage: 220V
Laser Wavelength: 355nm
Marking Area: 175mm x 175mm
Marking Speed: ≤ 7000 mm/s
Marking Accuracy: ≤ 0.1mm
Repetition Accuracy: ≤ 0.001mm
Marking Depth: ± 0.2mm
Marking Line Width: 0.05mm - 0.01mm
Features & Application

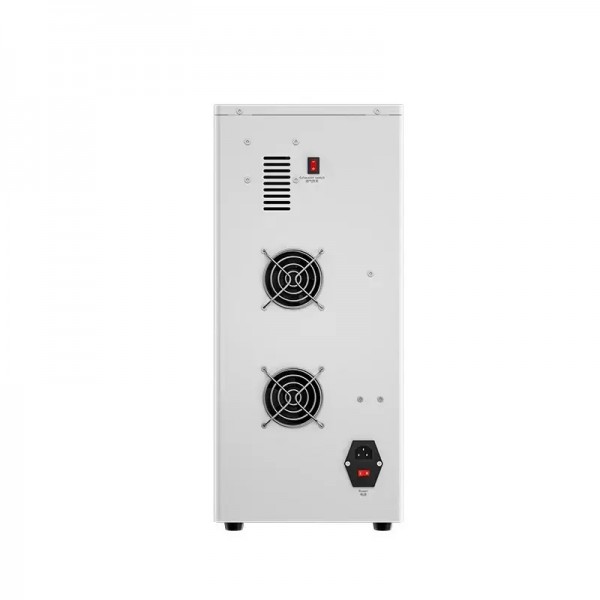

Cooling Mode: Built-in Air Cooling
Application: Suitable for mobile phone repair, decoration, handicrafts, and other industries.
