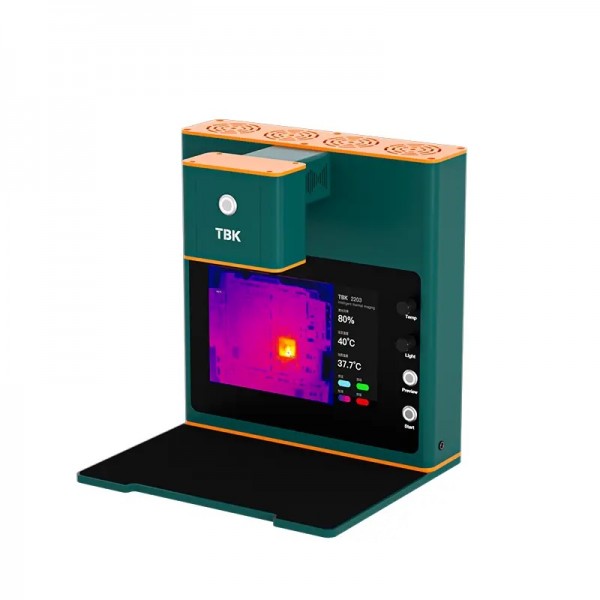

TBK 2206 Laser Soldering Machine with Thermal Imaging & HD Microscope

  • Product Code: TBK 2206 Laser Soldering Machine
  • Availability: In Stock
  • 1 365.00$


TBK 2206 Laser Soldering Machine with Thermal Imaging & HD Microscope.


The TBK-2206 is an advanced Laser Soldering Machine designed for highly efficient component removal and welding. Going beyond standard repair, it features integrated thermal imaging to quickly diagnose motherboard fault points by detecting heat anomalies. This station offers a safe and controlled alternative to traditional heat guns; by using focused laser heating, it ensures that only the target area is affected. This protects nearby components and significantly improves the success rate of complex motherboard repairs.

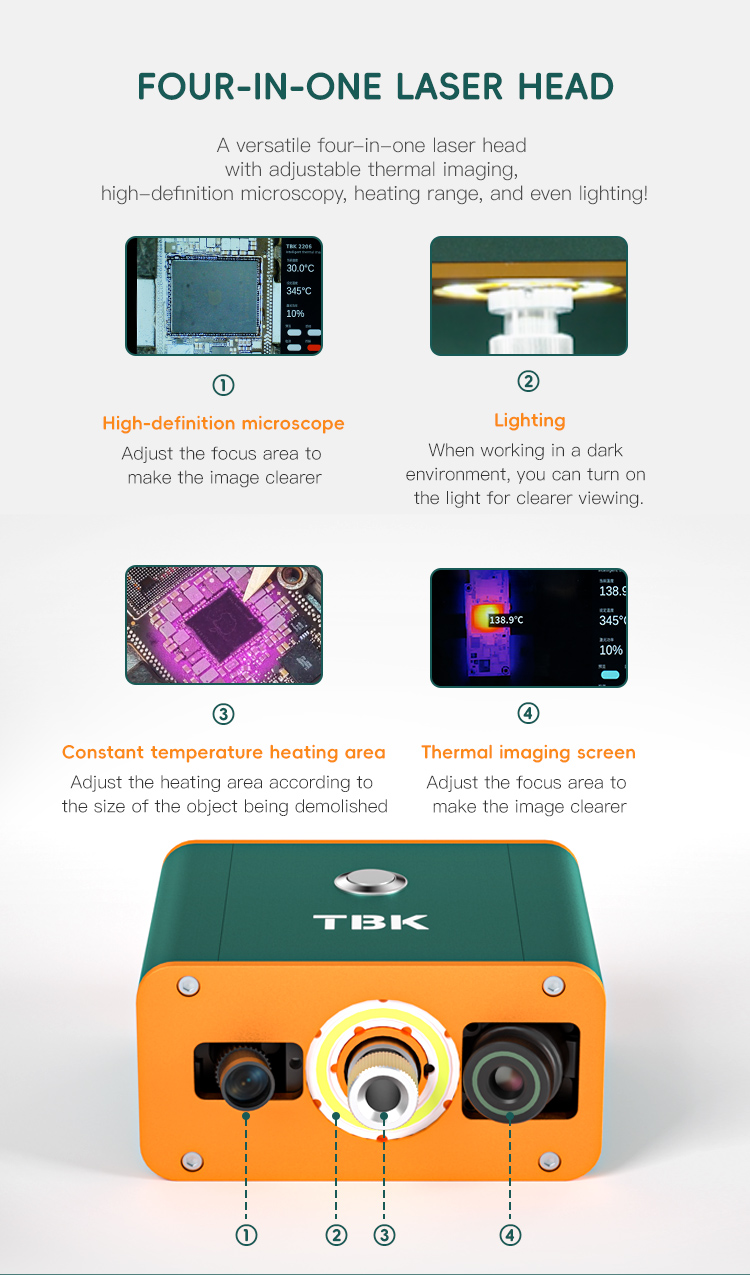

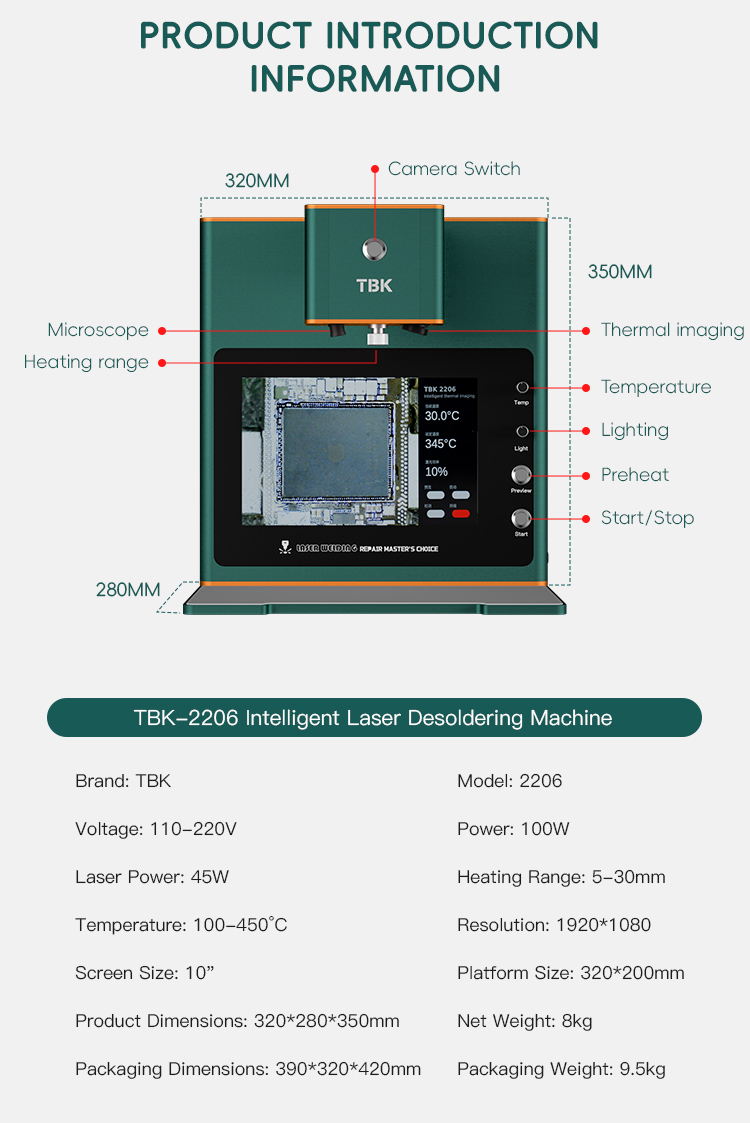

Integrated Four-in-One Head: Combines a high-definition microscope, thermal imaging camera, adjustable laser heater, and built-in lighting into a single, versatile head.

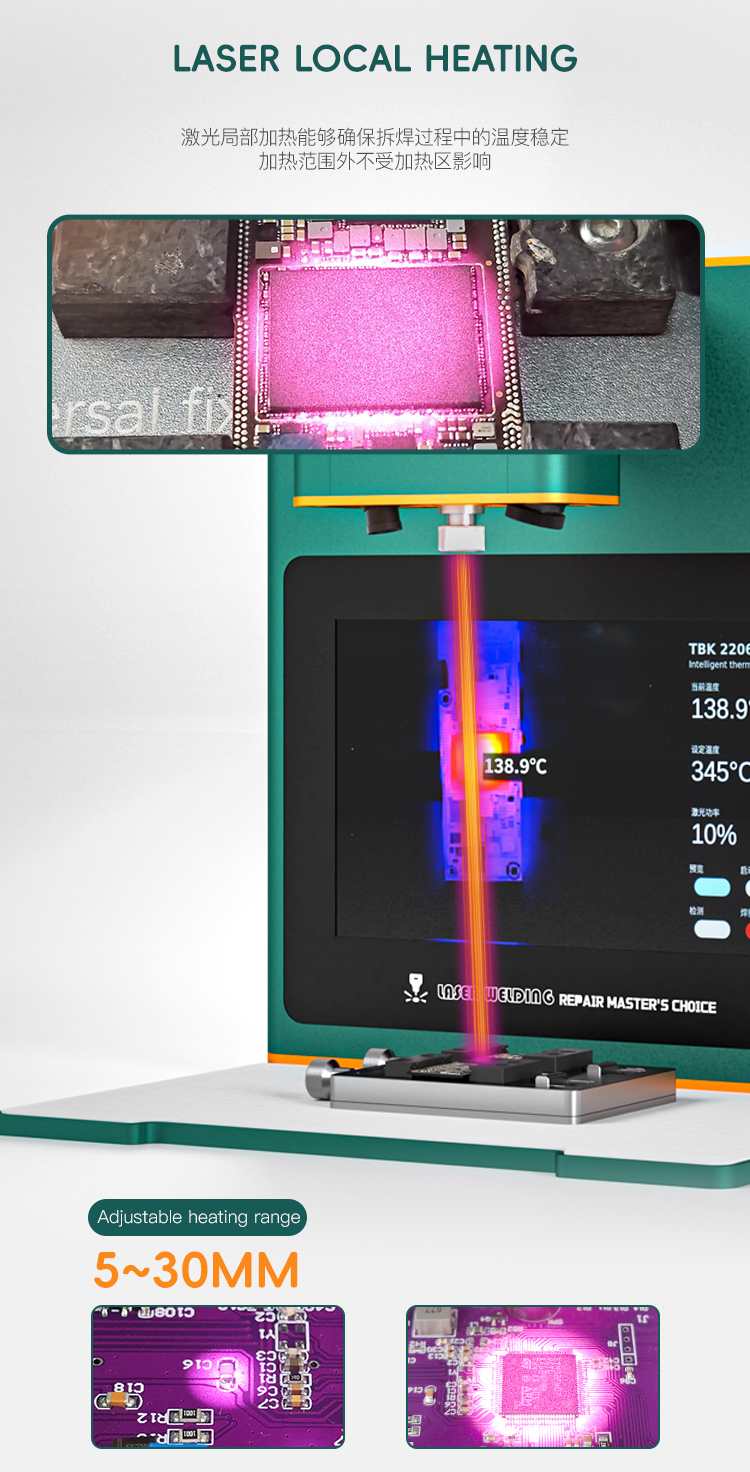

Efficient Micro-Component Repair: Specifically engineered for the highly efficient removal and welding of tiny components. The focused laser allows for rapid desoldering and resoldering of small chips without disturbing surrounding parts.

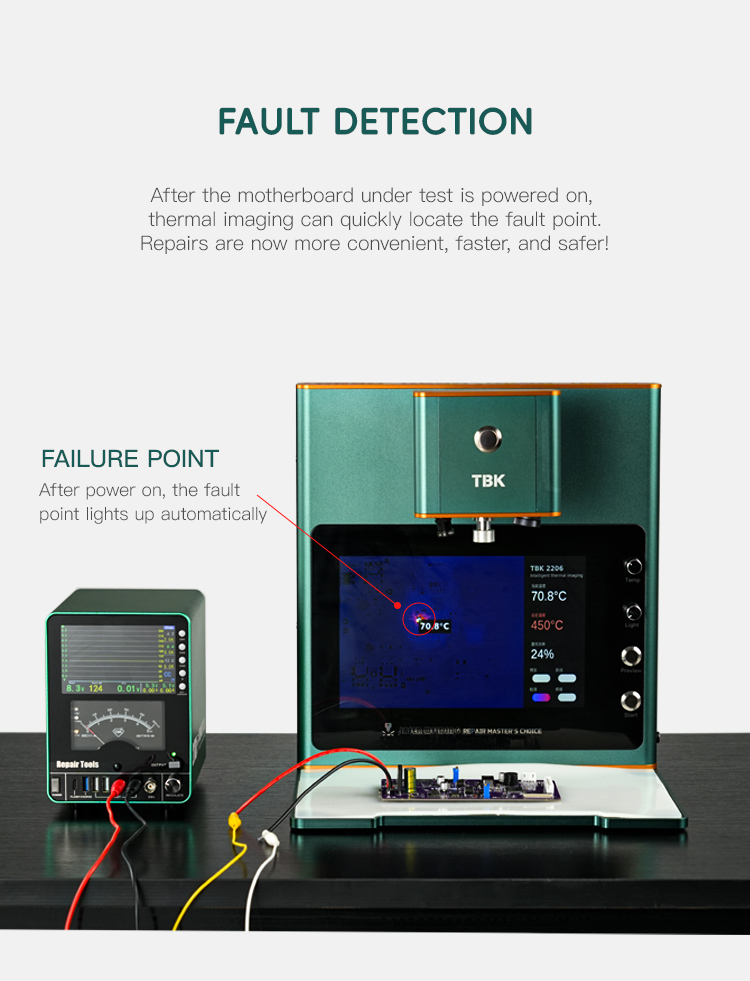

Thermal Imaging for Fault Diagnosis: Features integrated thermal imaging to quickly diagnose motherboard fault points. It detects heat anomalies on a powered board and automatically highlights short circuits or overheating areas on the screen for instant troubleshooting.

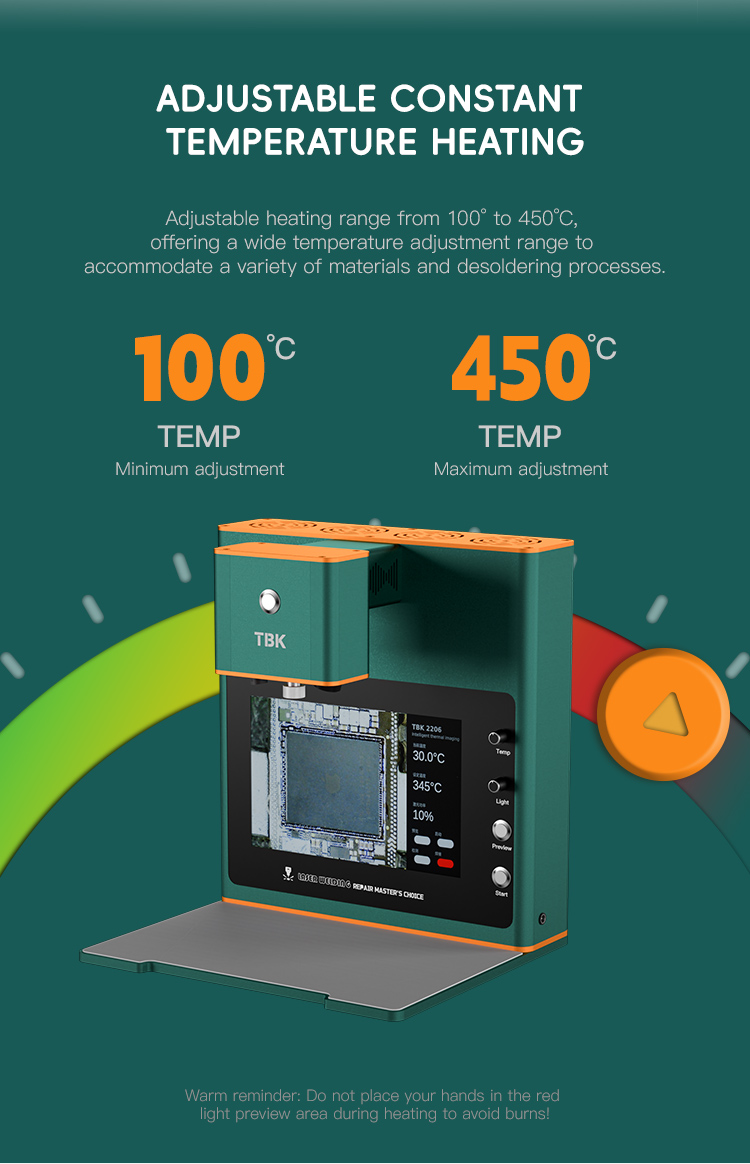

Precise & Adjustable Heating: The laser provides constant temperature heating with an adjustable temperature range of 100°C to 450°C and a customizable heating area from 5 mm to 30 mm.

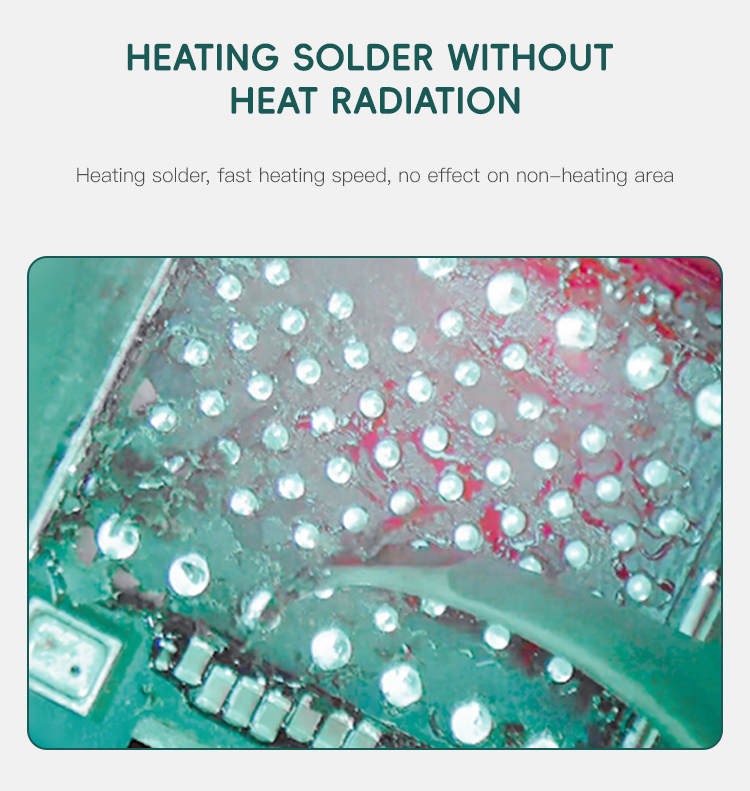

Safe and Focused Application: The laser heats solder rapidly without heat radiation, preventing damage to adjacent components on the board.
Durable Construction: Features an all-aluminum alloy body with multiple cooling fans for effective heat dissipation, ensuring durability and a long product life.
User-Friendly Interface: A large 10-inch screen and simple controls make operation straightforward, supplemented by a foot switch for hands-free control.

Specification Value
Brand TBK
Model 2206
Voltage 110–220V
Total Power 100W
Laser Power 45W
Temperature Range 100–450°C
Heating Range 5–30 mm
Screen Size 10 inches
Net Weight 8 kg
Product Dimensions 320 x 280 x 350 mm

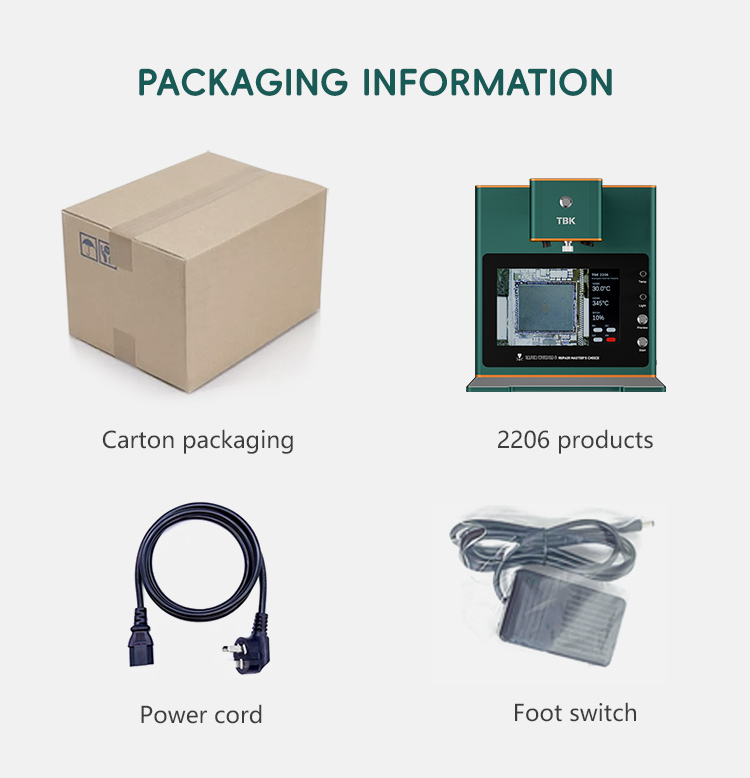

Carton Packing: 9.5KG/unit
Carton Dimensions: 390*320*420mm
