TBK 502 Flex Cable Bonding Machine for iPhone, Samsung Screen Repair | Display & Touch Issues.

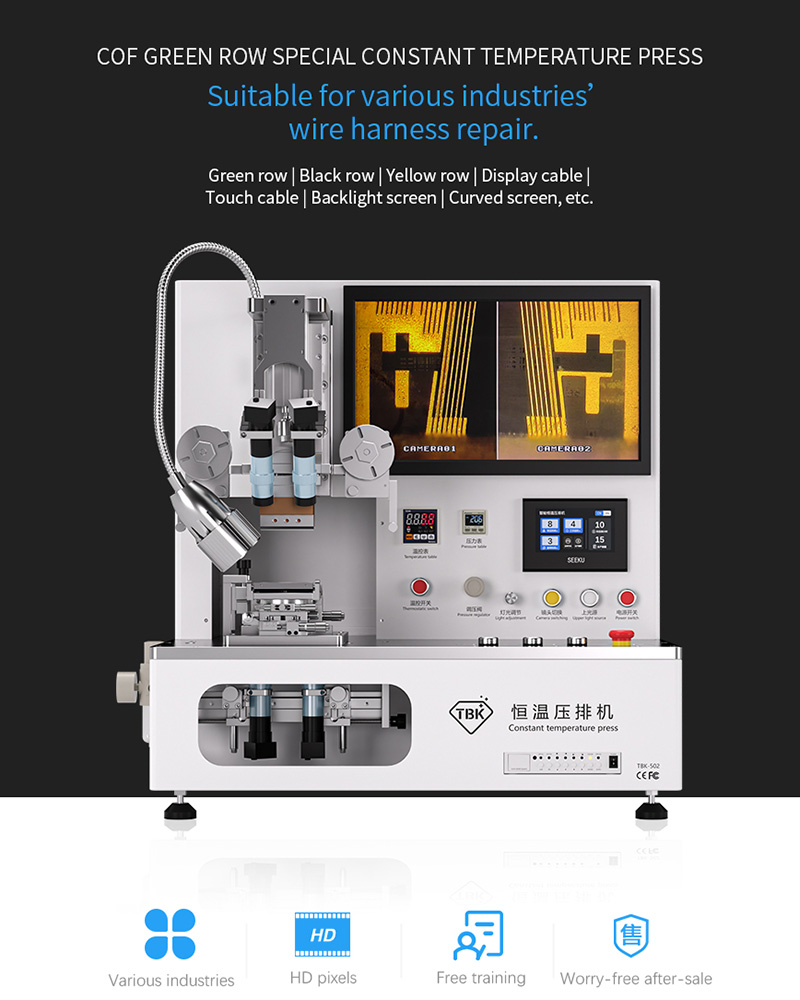

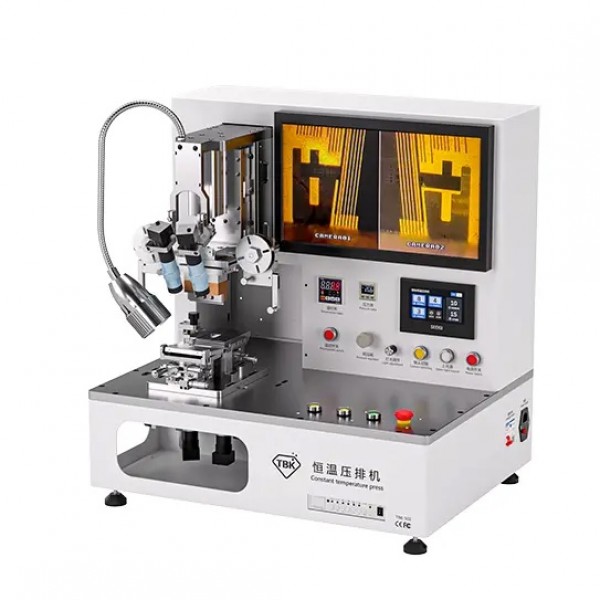

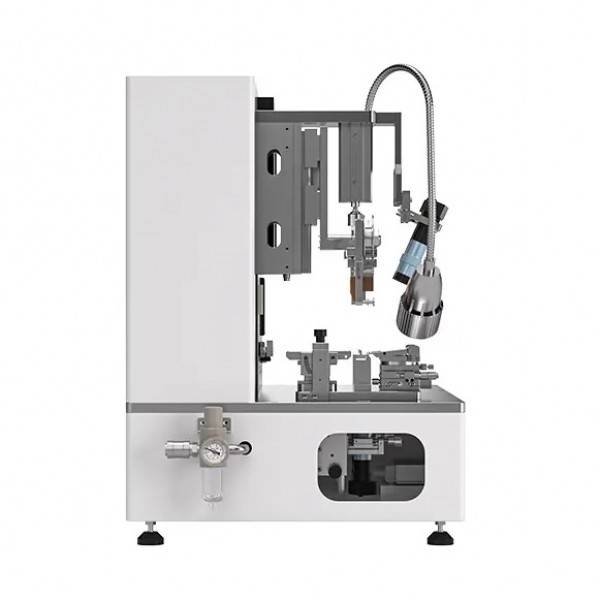

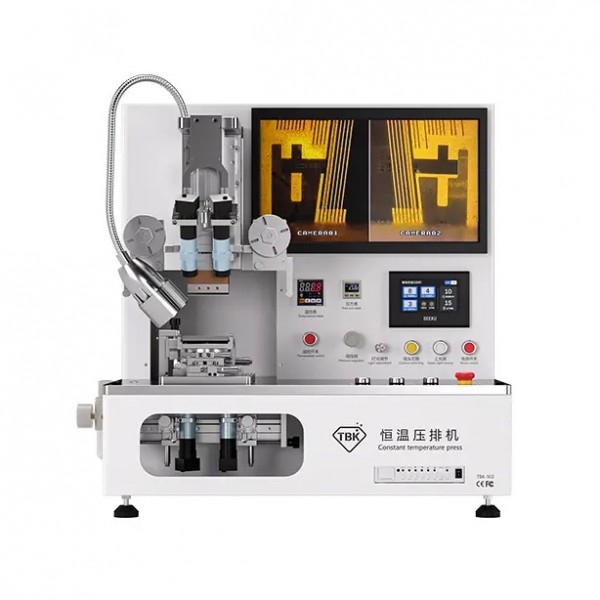

The TBK-502 is a constant temperature press machine engineered for the precise repair of flexible cables across a wide range of electronic devices. It is equipped with a high-definition, four-lens alignment system and a micrometer adjustment platform to ensure accurate positioning for various products, including mobile phone screens, tablets, and projectors.

Operation is streamlined through an intelligent PLC touch screen, which allows for easy control over temperature, pressure, and timing. The machine is built for durability and consistent performance, featuring a high-temperature resistant tungsten steel blade and offering optional platforms to handle both flat and curved flexible screens. Designed for versatility, the TBK-502 can repair a variety of common screen malfunctions, such as display failures, touch issues, and cable damage for major brands in the industry.

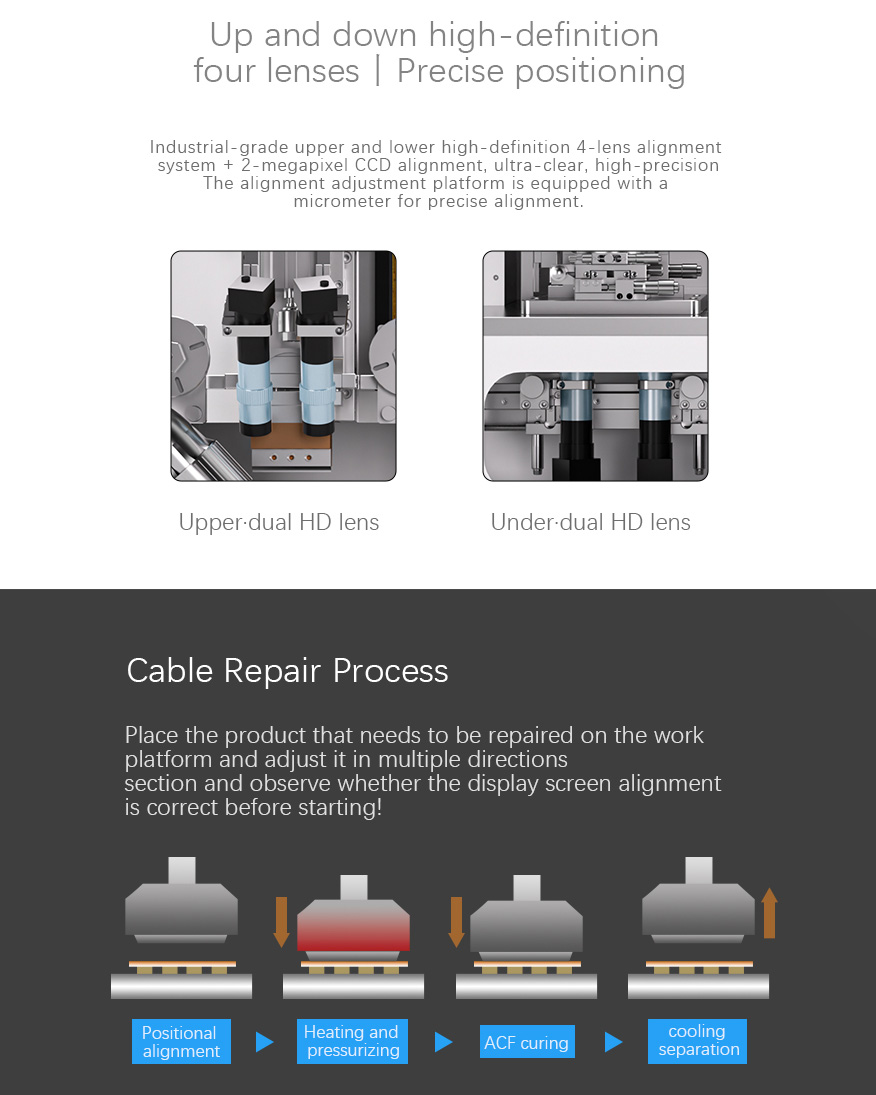

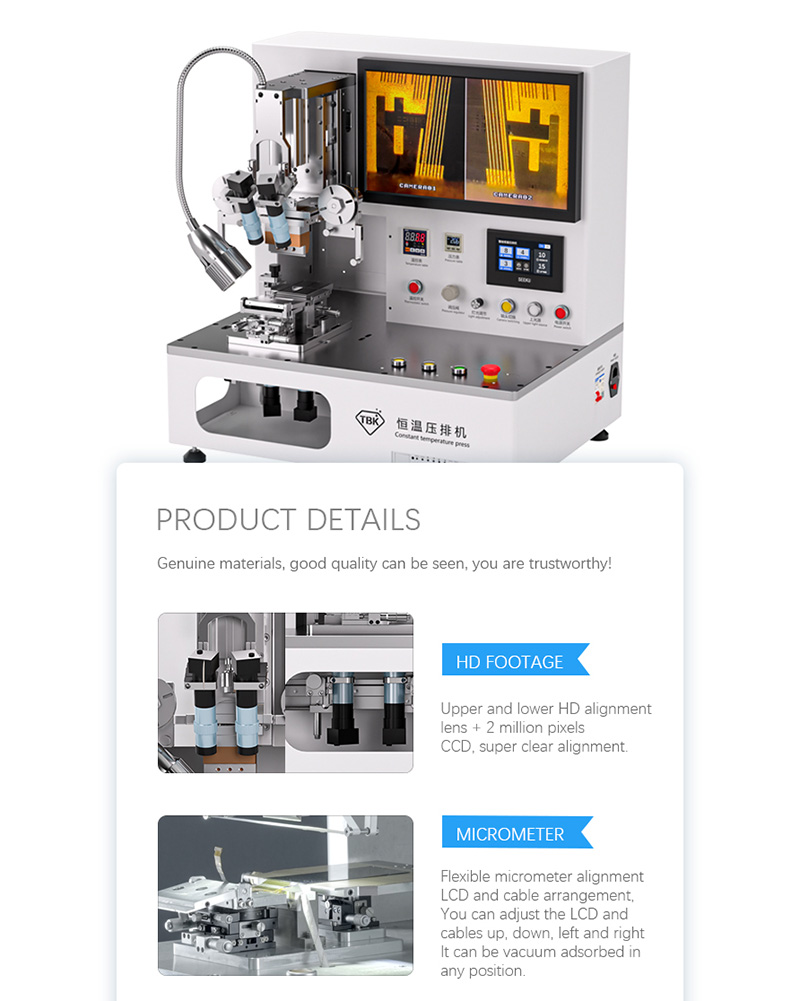

Precise Alignment System: Features an industrial-grade, upper and lower four-lens system with 2-megapixel CCDs and a micrometer for high-precision alignment.

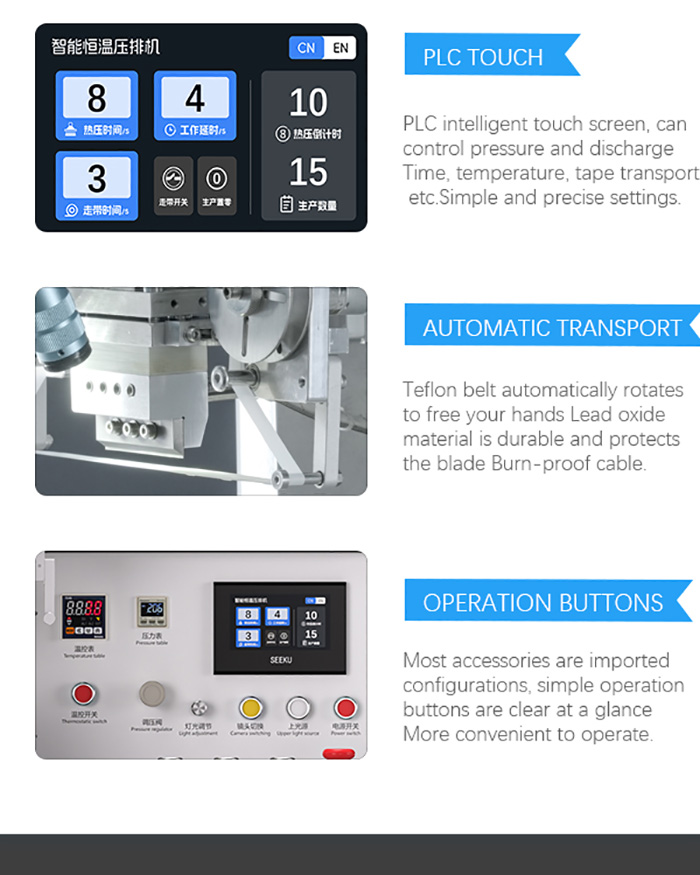

Intelligent PLC Touch Control: Allows for simple and precise settings for pressure, temperature, time, and automatic tape transport.

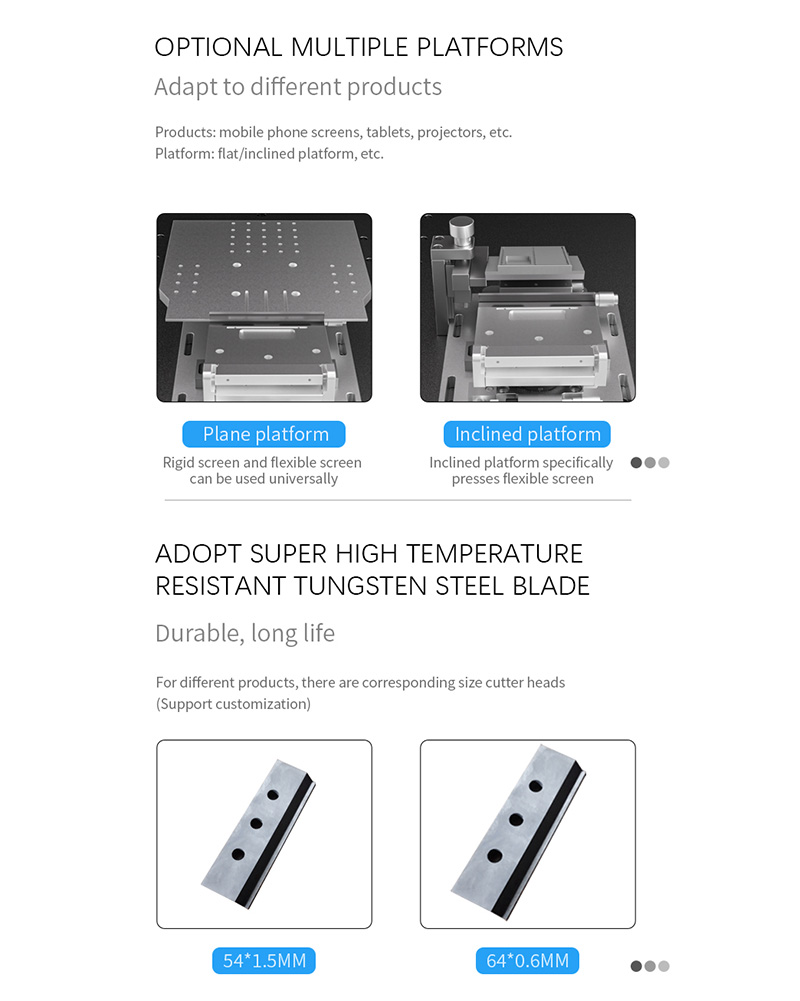

Durable Tungsten Steel Blade: Utilizes a super high-temperature resistant blade for long life and reliability, with customizable sizes available.

Versatile Working Platforms: Offers optional plane and inclined platforms to universally handle rigid, flexible, and curved screens.

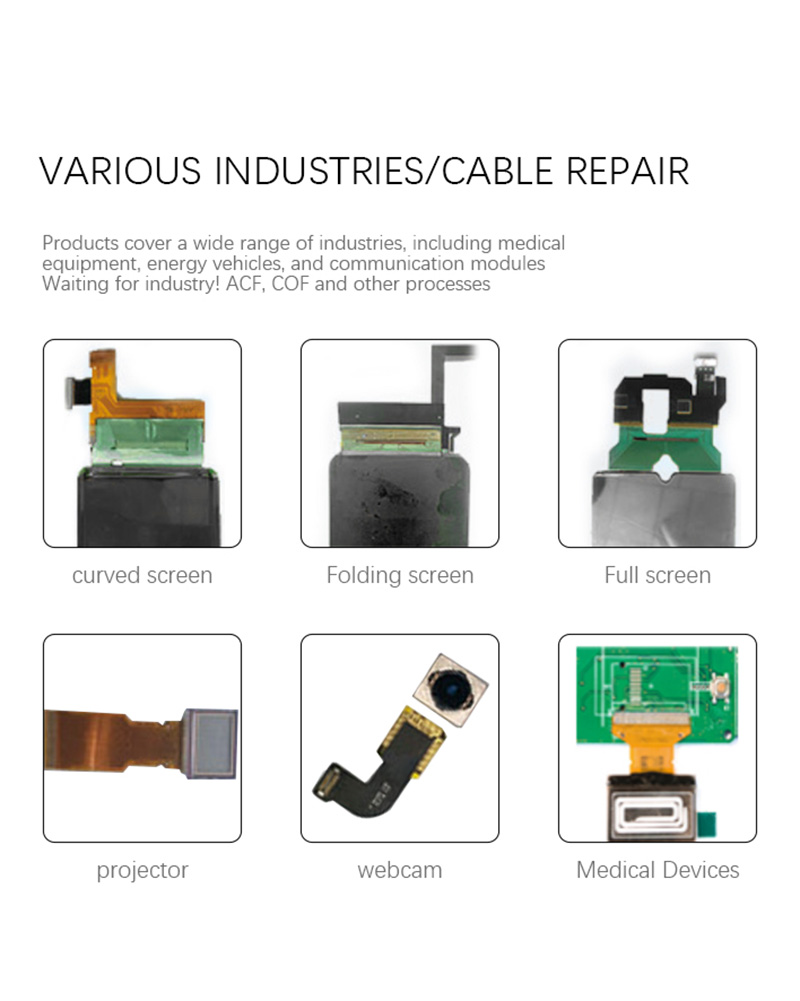

Wide Range of Applications: Suitable for repairing cable issues on devices from 2.4 to 7.0 inches, including phones, tablets, projectors, and medical equipment.

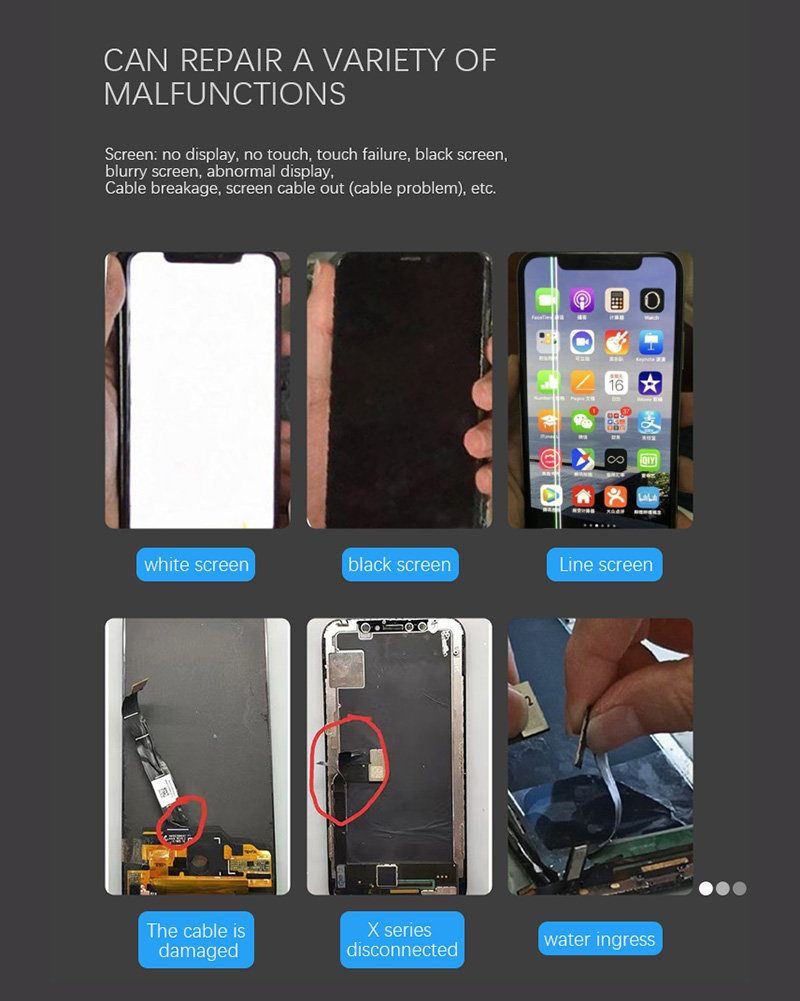

Comprehensive Repair Capability: Capable of fixing a variety of screen malfunctions, including no display, black/white screens, touch failure, and cable breakage.

Automated Transport System: A Teflon belt automatically rotates to protect the blade and allow for hands-free operation.

Product Model: TBK 502

Product Name: COF Constant Temperature Press

Device Functions: LCD screen cable binding and repair

Device Power Supply: AC220V 50/60Hz

Equipment Power: 800W

Processing Efficiency: 10-15S/pcs

Suitable for Products: 2.4 - 7.0 inch

LCD Platform: 182 x 180mm

Hot Pressing Accuracy: ±5μm

Working Air Source: 0.2 - 0.6Mpa

Blade Size: 54x1.5mm / 64x0.6mm (Customizable)

Dimensions (L x W x H): 730 x 500 x 700mm

Package Size (L x W x H): 750 x 600 x 950mm

Product Weight: 73kg

Product Gross Weight: 92kg

Repair Brand: Huawei, Apple, Xiaomi, Samsung, OPPO, etc.
