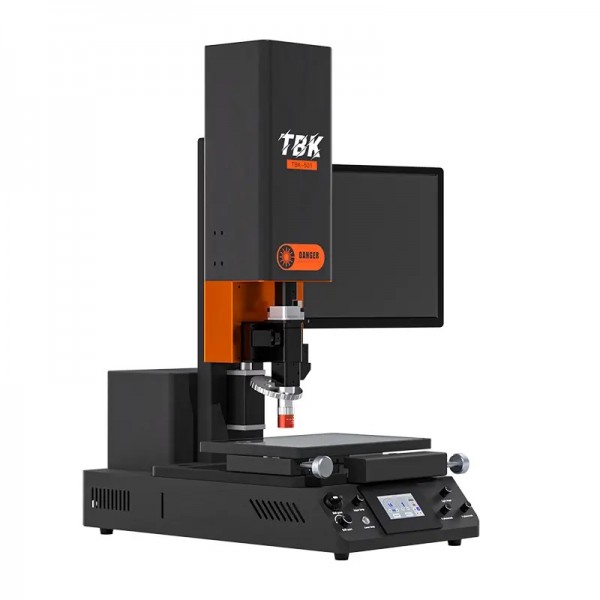

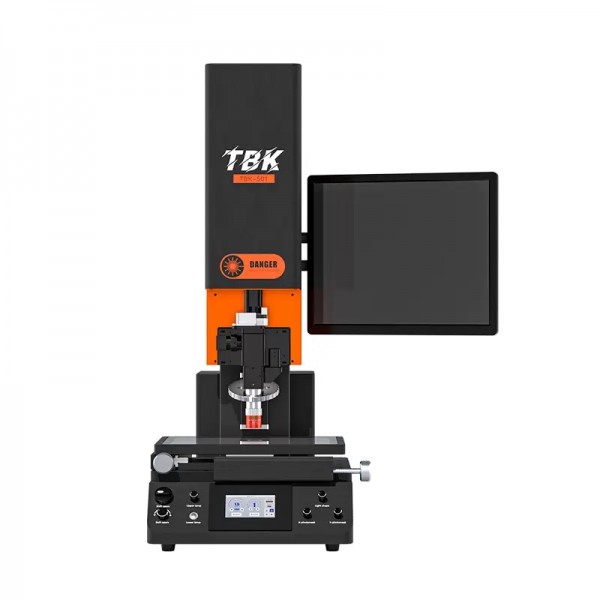

TBK 501 Professional Laser Wiring Machine for LCD & OLED Screen Repair

  • Product Code: TBK 501 Professional Laser Machine
  • Availability: In Stock
  • 9 030.00$


TBK 501 Professional Laser Wiring Machine for LCD & OLED Screen Repair.

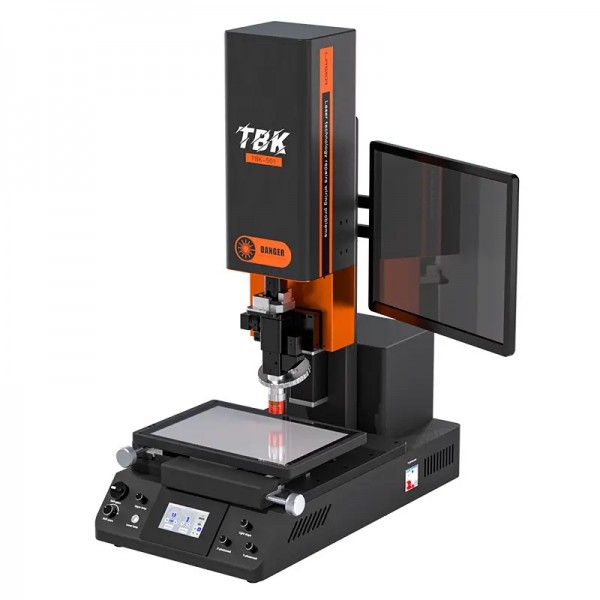

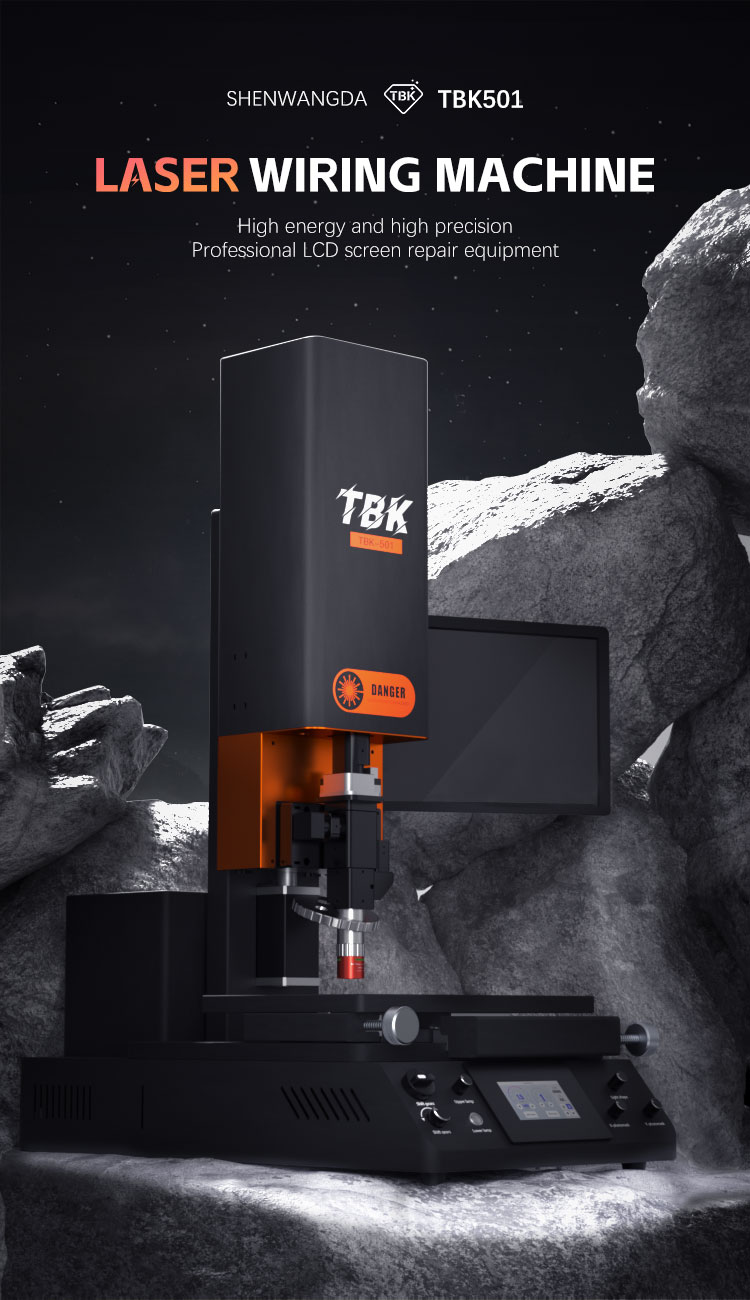

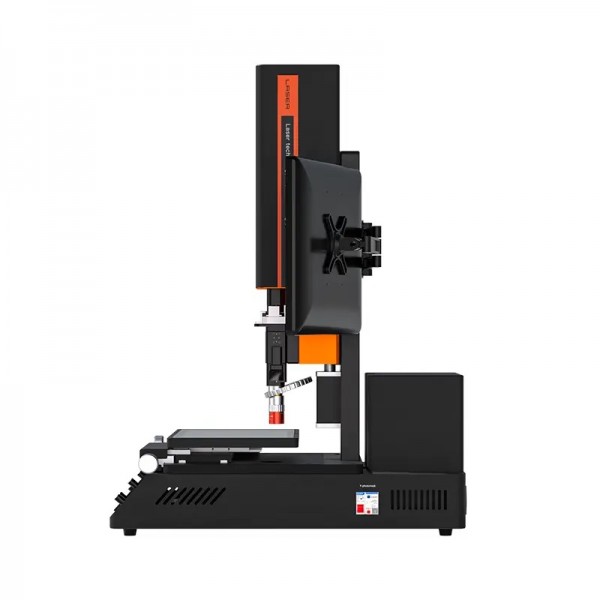

The TBK-501 is a professional laser wiring machine engineered for high-precision repair of LCD and OLED screens. It utilizes a stable, high-energy laser beam to accurately target and correct a variety of display defects, including lines, spots, and circuit faults. Designed for efficiency and ease of use, the machine features an HD industrial camera, a large 19-inch display for clear fault identification, and precise X-Y axis controls for accurate positioning. Its user-friendly interface and robust construction make it a reliable solution for restoring screens to their original condition.

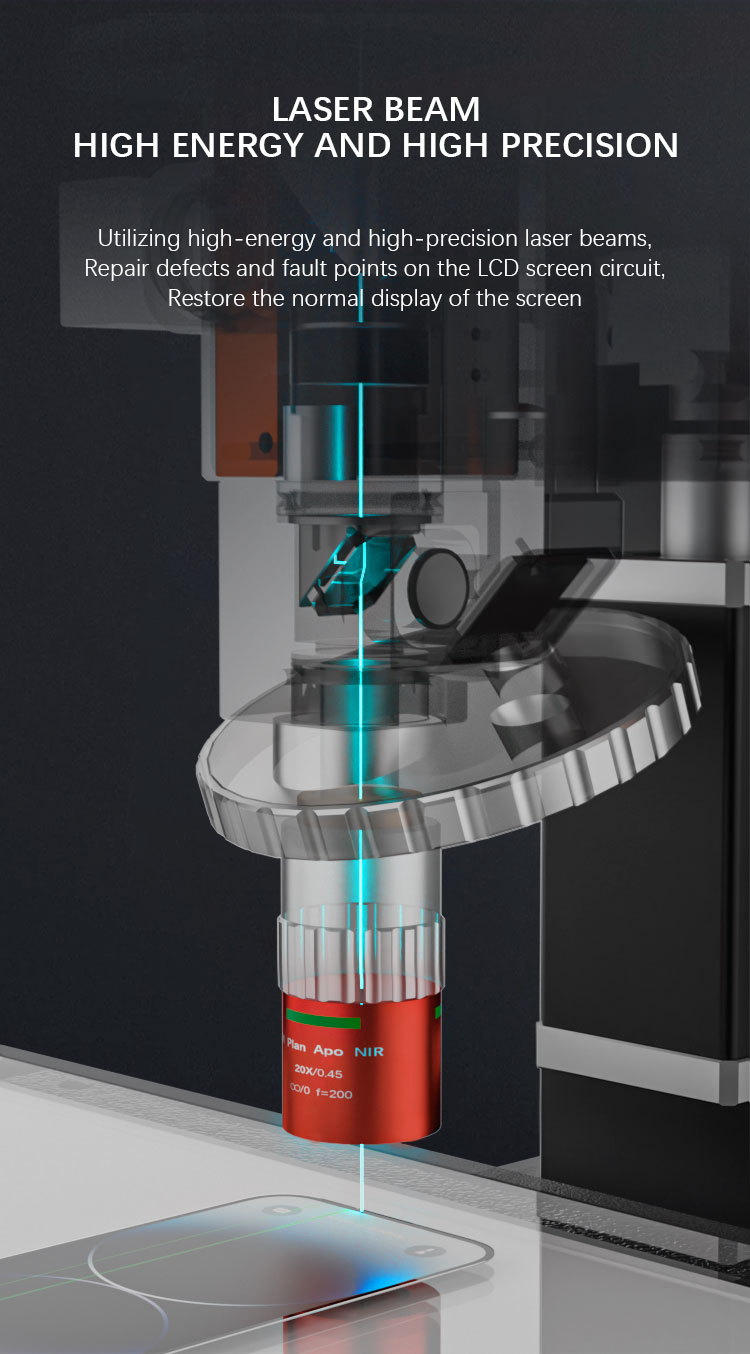

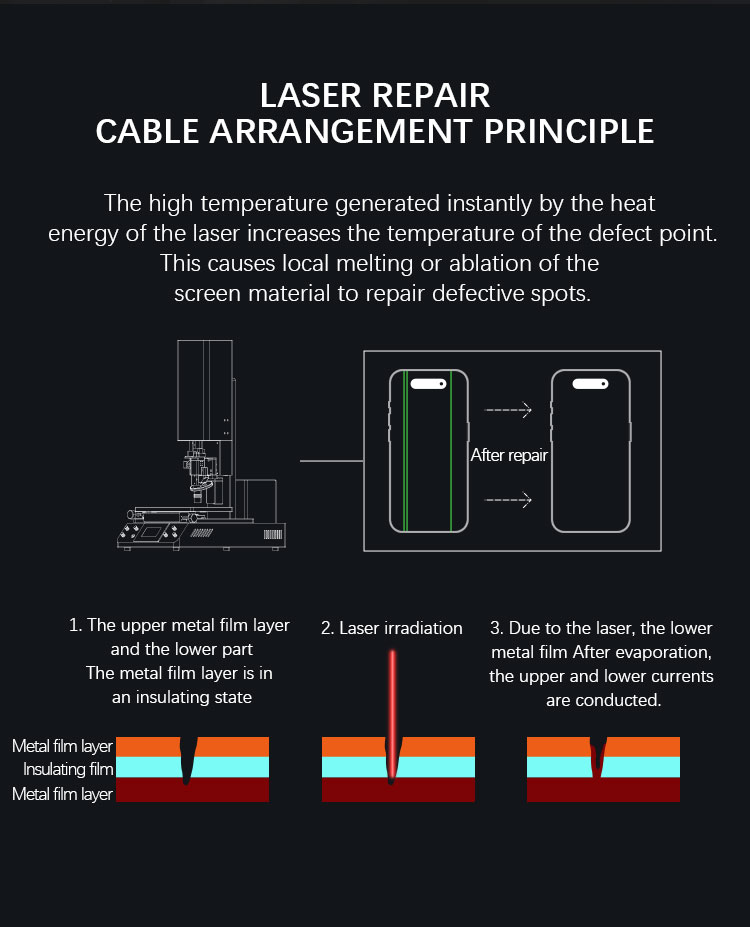

High-Energy Laser: Employs a high-energy, high-precision laser beam to effectively repair circuit faults on the screen.

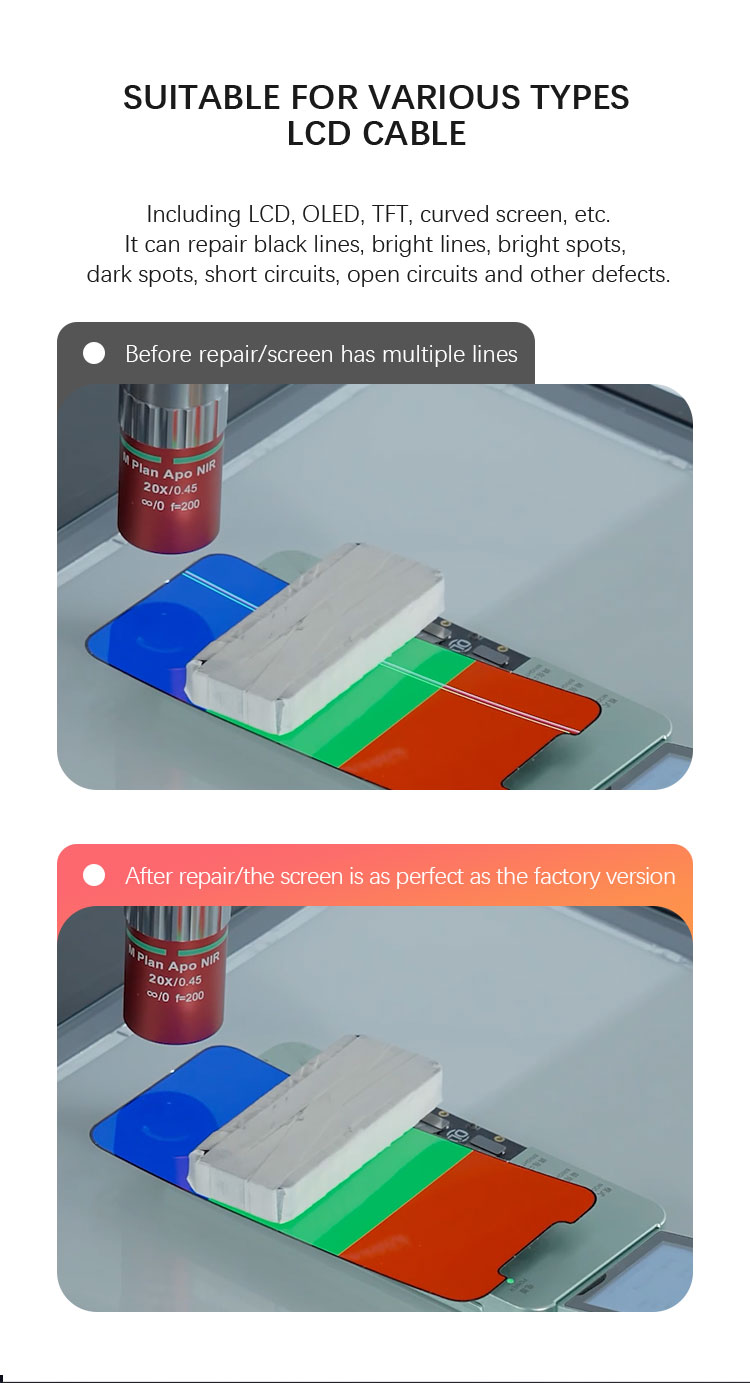

Versatile Screen Repair: Suitable for various screen types, including LCD, OLED, TFT, and curved displays. It can fix defects such as black lines, bright lines, bright spots, dark spots, and short or open circuits.

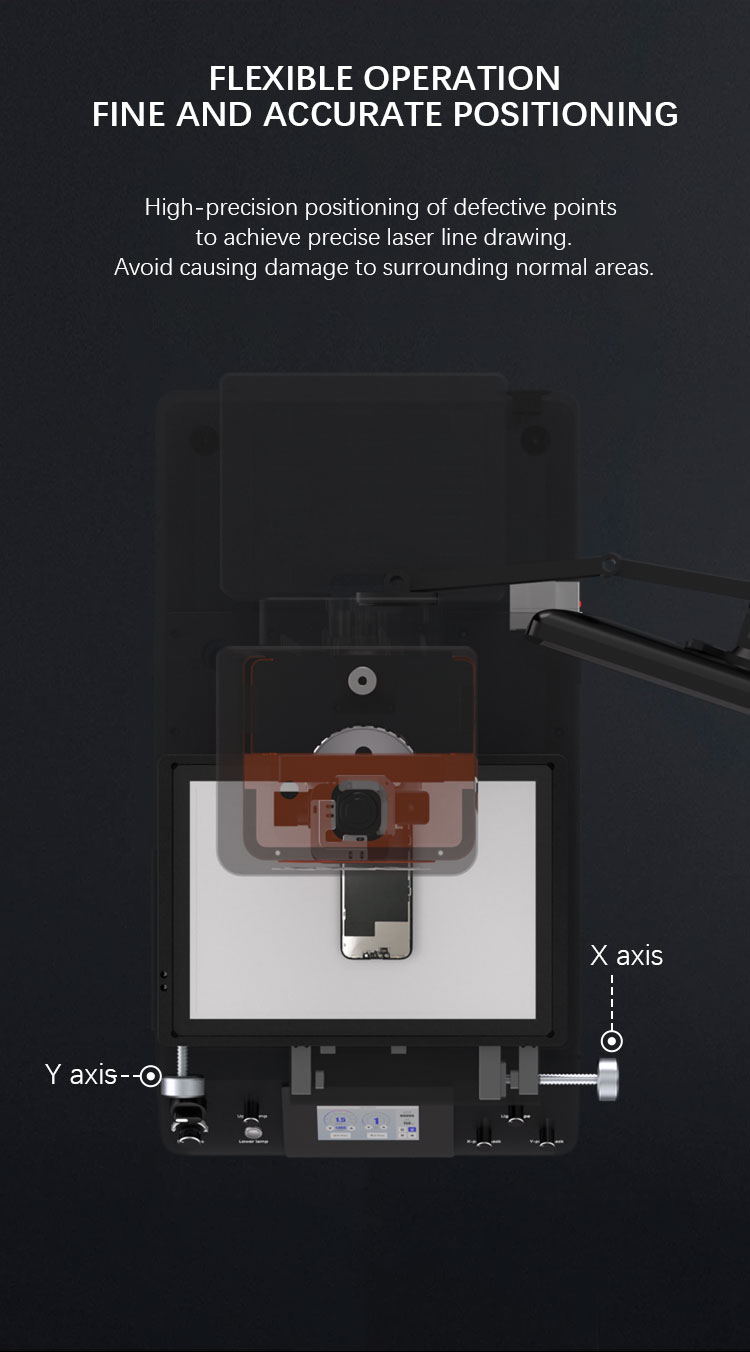

Precision and Accuracy: Equipped with a high-precision control system, manual X-Y axis adjustment, and electric focus for fine and accurate positioning on defective points.

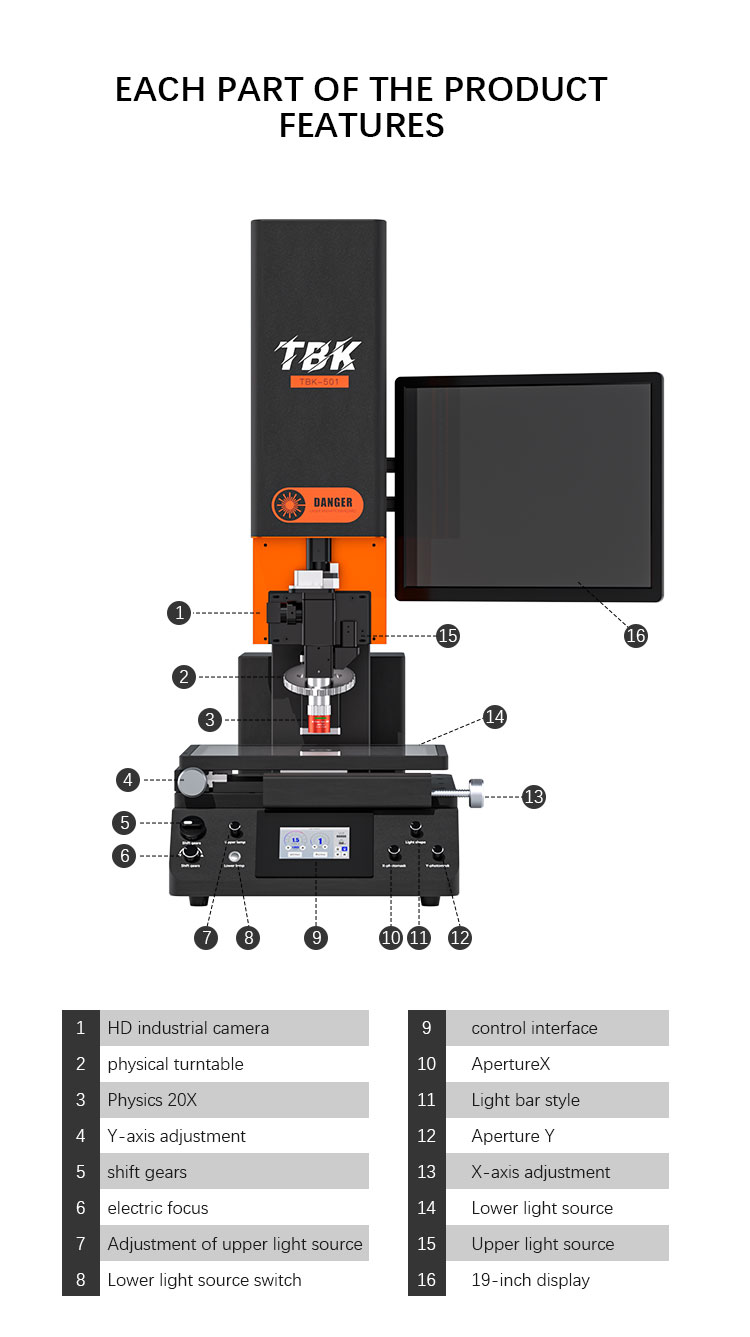

HD Vision System: Features an HD industrial camera with a 20X magnification lens and a large 19-inch display to clearly locate and inspect fault points.

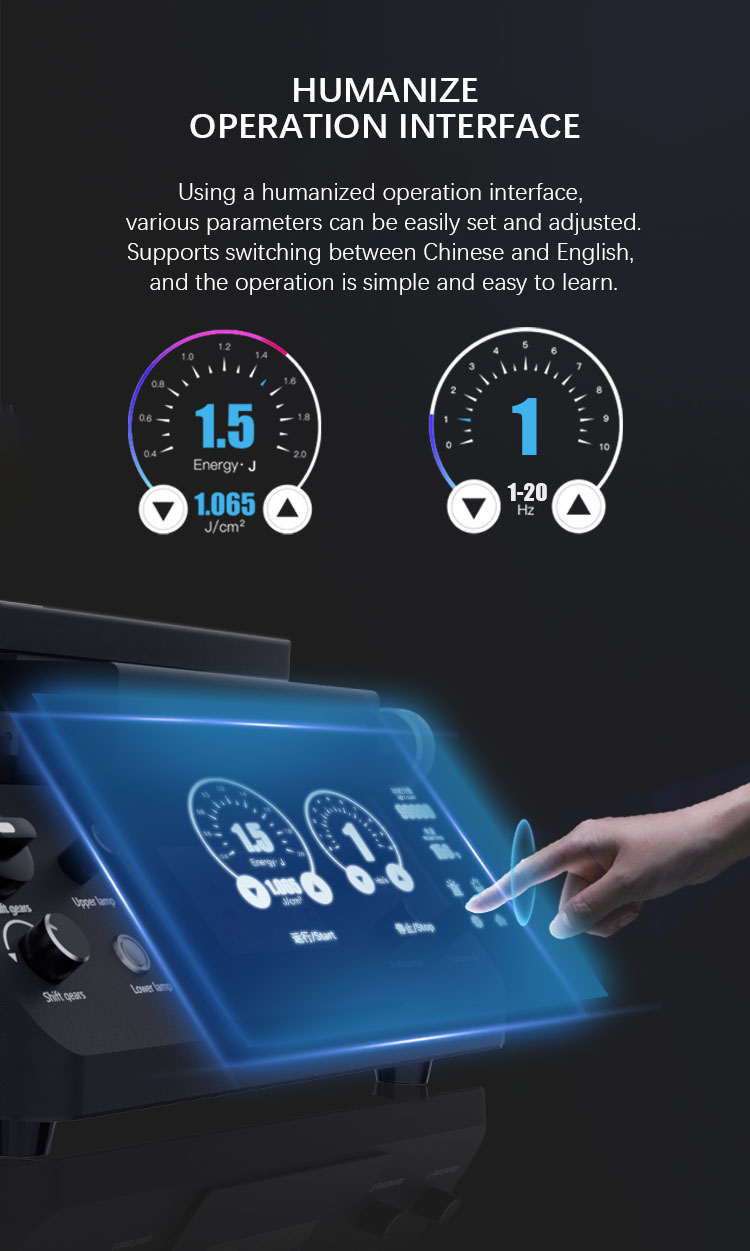

User-Friendly Operation: Includes an intuitive control interface for easy adjustment of parameters like energy and frequency, with support for both Chinese and English languages.
Efficient and Reliable: Designed for a high success rate and efficiency, helping to restore screens to factory-perfect condition.

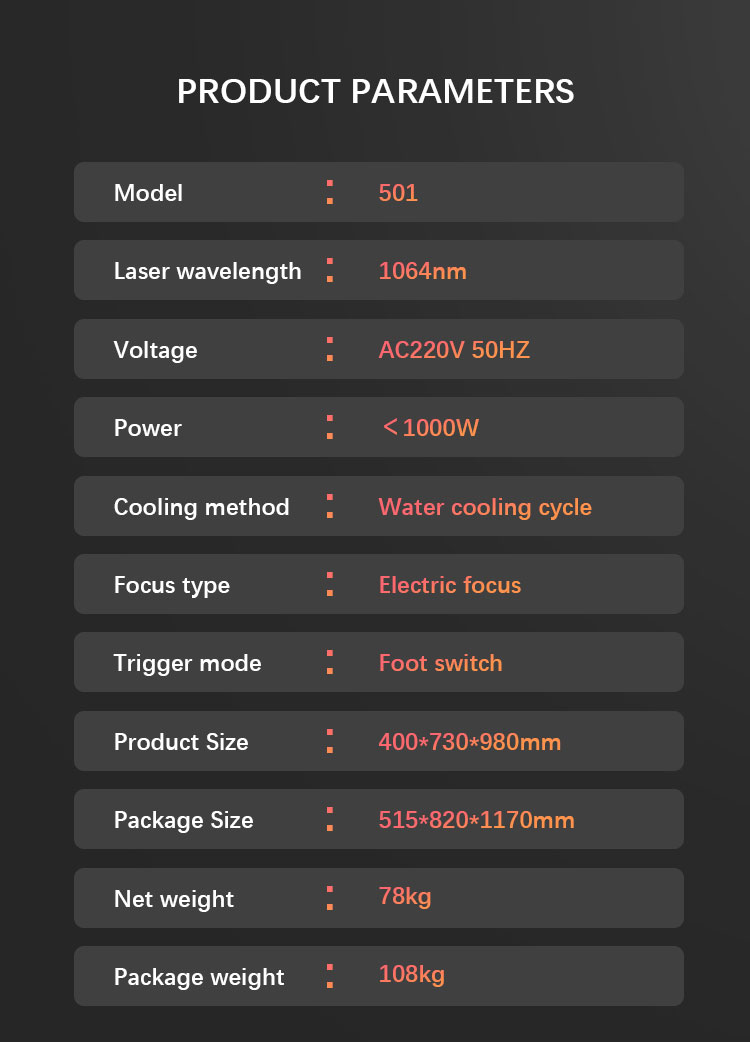

Model: 501
Laser Wavelength: 1064nm
Voltage: AC220V 50HZ
Power: < 1000W
Cooling Method: Water cooling cycle
Focus Type: Electric focus

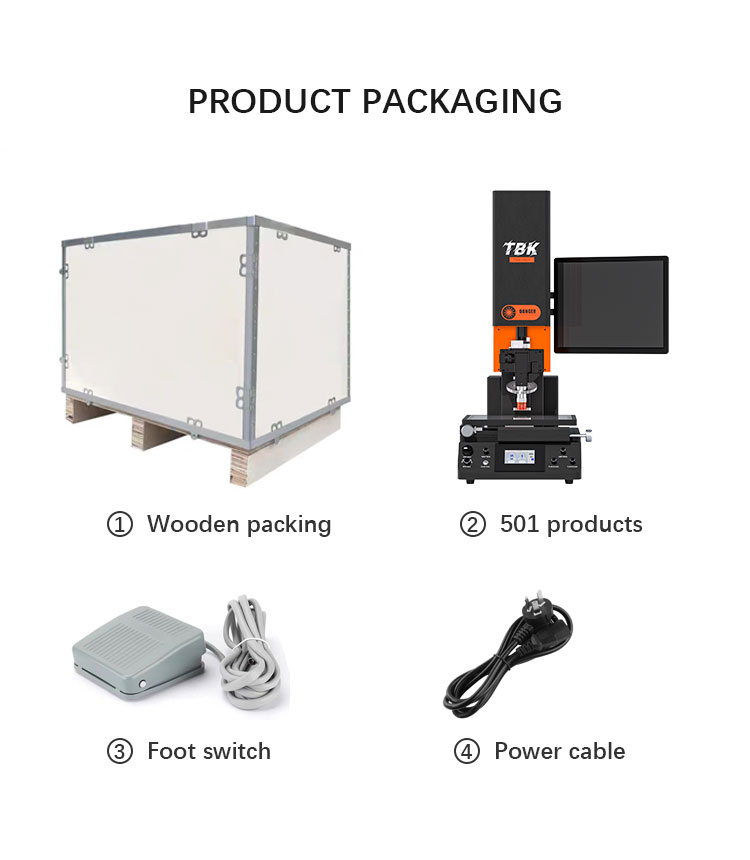

Trigger Mode: Foot switch
Product Size: 400 x 730 x 980 mm
Package Size: 515 x 820 x 1170 mm
Net Weight: 78 kg
Package Weight: 108 kg
