TBK 983B Automatic Glue Dispensing Machine with 0.02mm High-Precision, Programmable Path Control, and Adjustable Speed for Electronics and Screen Repair

  • Product Code: TBK 983B Glue Dispenser
  • Availability: In Stock
  • 1 080.00$


TBK 983B Automatic Glue Dispensing Machine with 0.02mm High-Precision, Programmable Path Control, and Adjustable Speed for Electronics and Screen Repair.

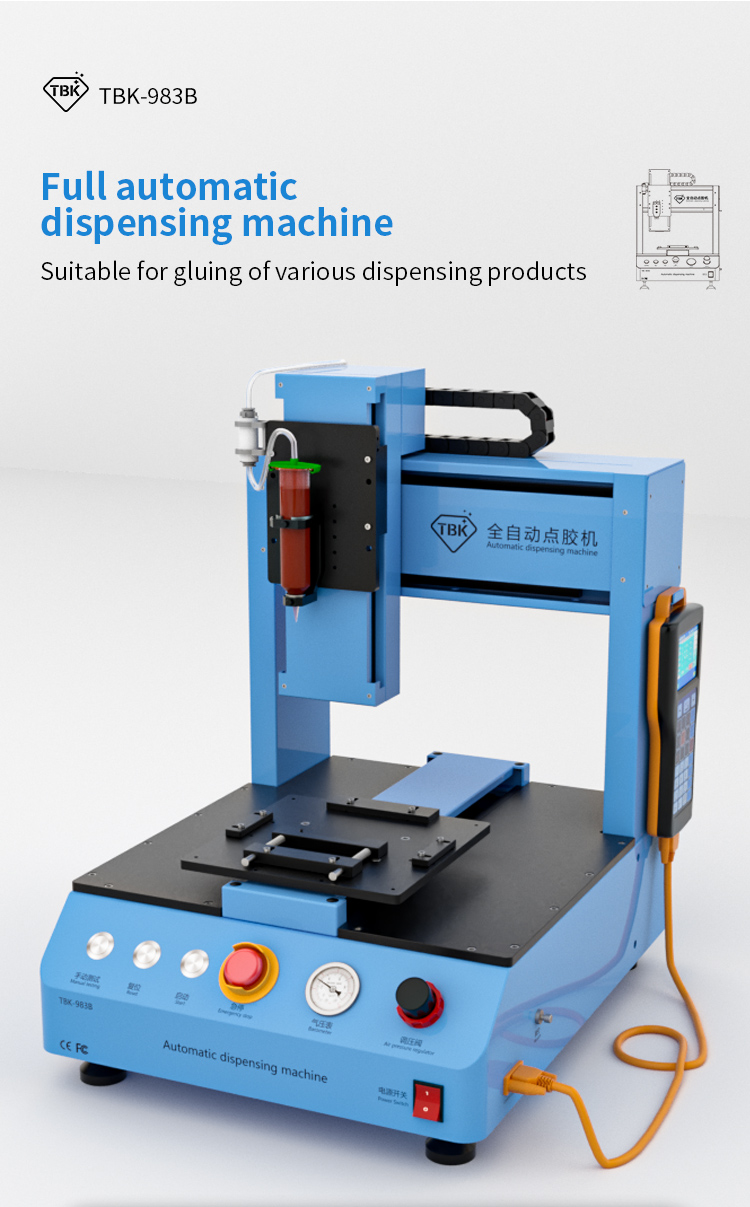

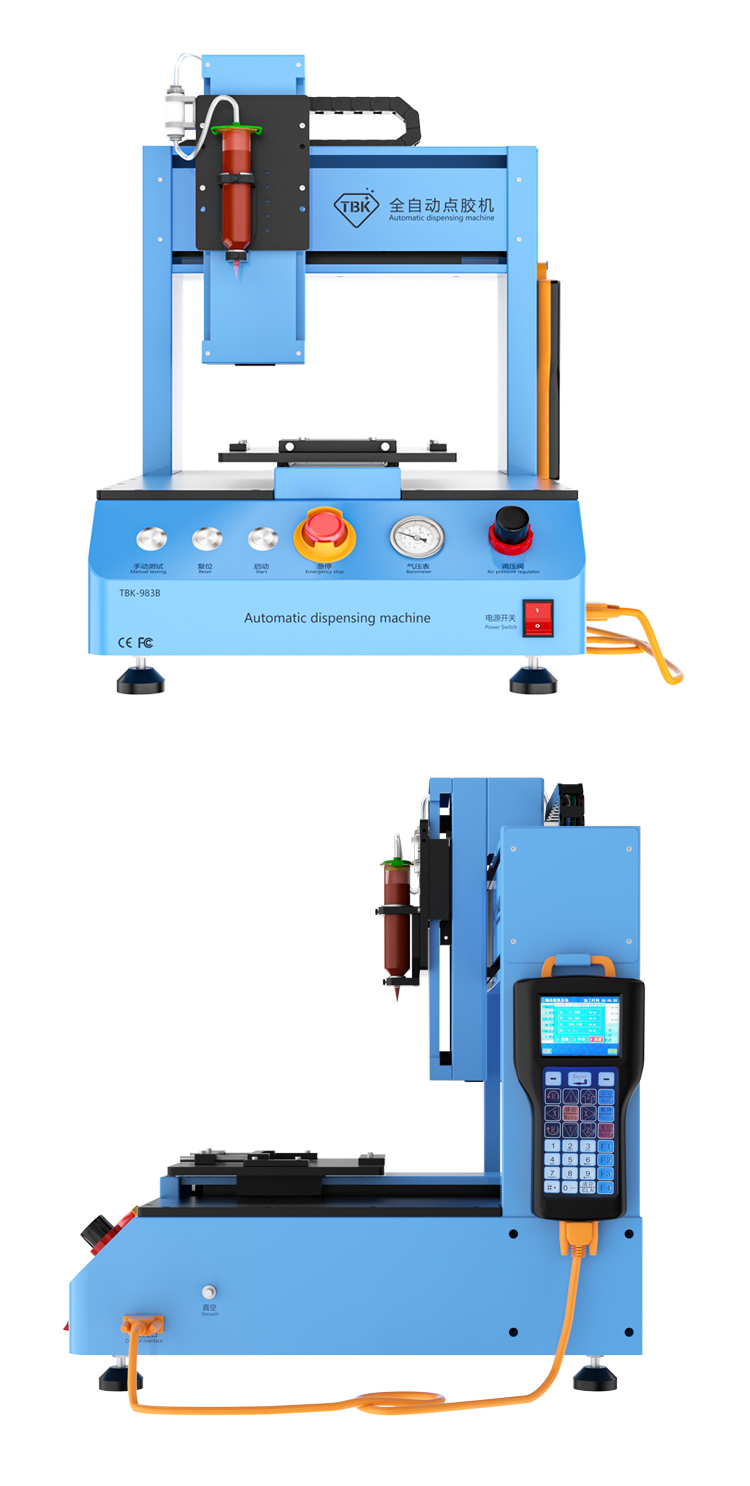

The TBK-983B is a fully automatic intelligent dispensing machine designed to solve the common issues of manual gluing, such as low efficiency and inconsistent application. It offers high-precision glue dispensing, ensuring a clean and professional finish with every use. With a user-friendly programmable control system, you can easily set complex paths including lines, arcs, and circles to perfectly match your product's requirements.
This machine allows for full control over the gluing process, with adjustable dispensing size, depth, and speed. The advanced pressure valve system ensures a uniform and smooth glue output, preventing common problems like wire drawing, leakage, or dripping. Built for versatility, the TBK-983B is suitable for a wide range of adhesives, including UV glue, AB glue, silica gel, red glue, PUR hot melt adhesive, solder paste, conductive silver paste, and anaerobic adhesive. It is widely used for detailed work on electronics, jewelry, vehicle logos, and more. It is an ideal solution for tasks like screen repair, reducing labor costs and significantly improving production quality.

High-Precision Dispensing: Achieves a positioning accuracy of 0.02mm for detailed and accurate glue application.

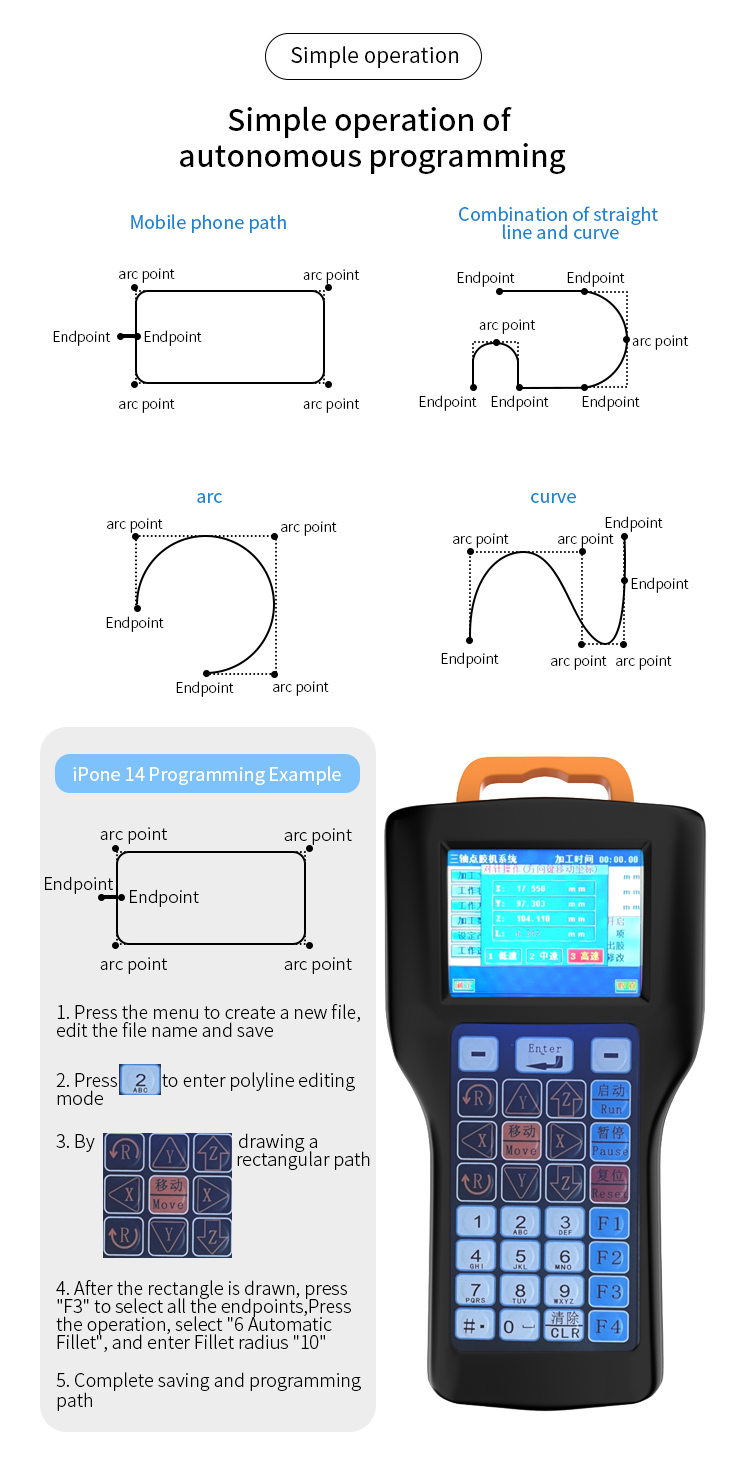

Autonomous Path Programming: Easily program custom dispensing paths (points, lines, circles, arcs) using the handheld controller. The system can store up to 1,000 different program groups.
Uniform Glue Discharge: A pressure regulating valve provides stable and even glue flow, preventing drips, leakage, and wire drawing.

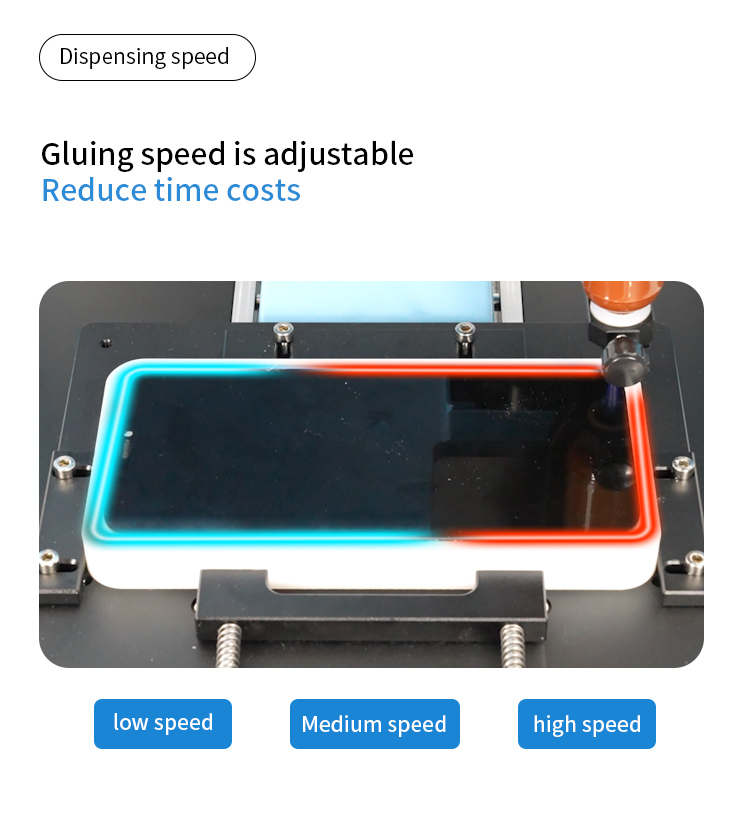

Adjustable Speed & Volume: The dispensing speed and the size/thickness of the glue line are all adjustable to meet different production needs.
Wide Application: Ideal for various tasks including dispensing on electronic products, medals, buttons, jewelry, and vehicle logos.
Versatile Glue Compatibility: Works with a wide variety of adhesives such as UV glue, AB glue, silica gel, red glue, solder paste, and more.
Simple Operation: Designed for ease of use, helping to reduce time and labor costs effectively.

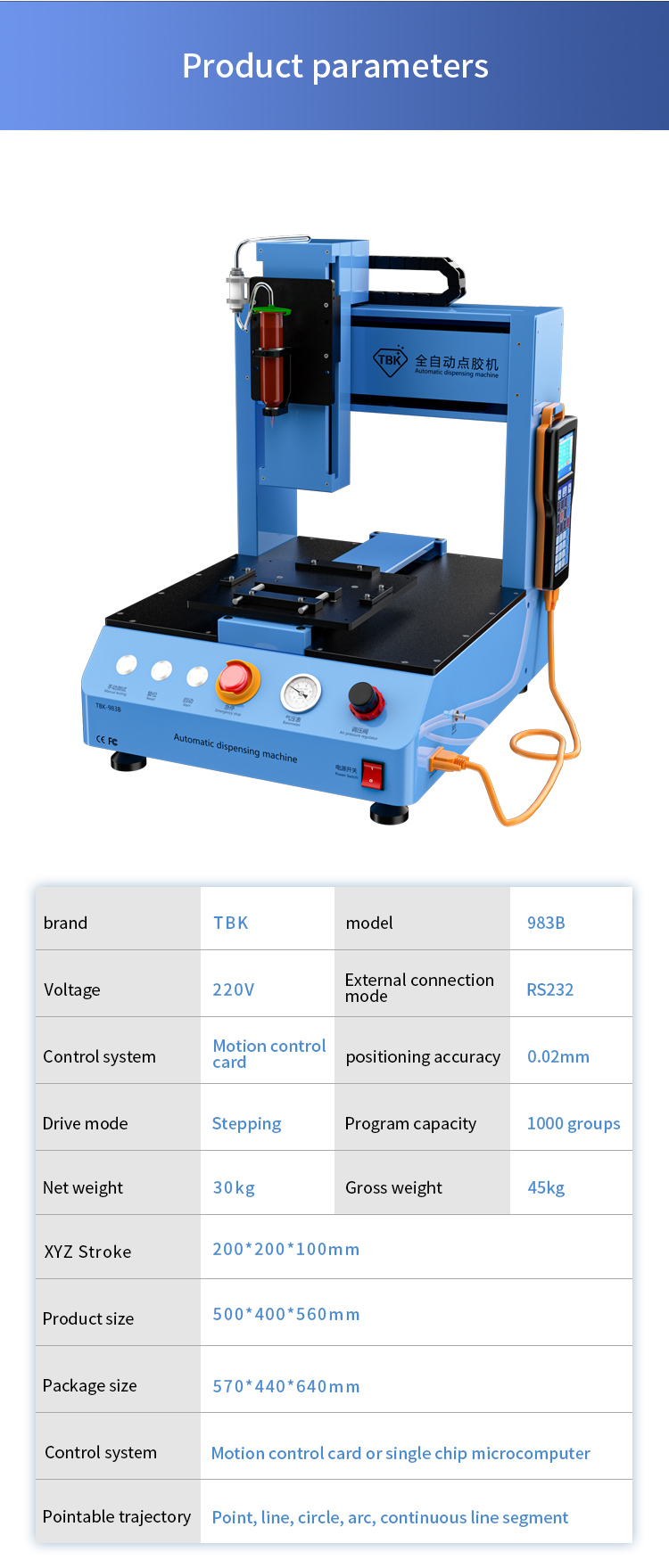

Brand TBK
Model 983B
Voltage 220V
Positioning Accuracy 0.02mm
XYZ Stroke 200mm * 200mm * 100mm
Drive Mode Stepping Motor
Control System Motion Control Card / Single Chip Microcomputer
Program Capacity 1000 Groups
Pointable Trajectory Point, line, circle, arc, continuous line segment
External Connection RS232
Product Size 500mm * 400mm * 560mm
Net Weight 30kg
Gross Weight 45kg
