TBK 217A DC Power Supply with Real-Time Curve Display & Short Circuit Repair

  • Product Code: TBK 217A DC Power Supply
  • Availability: In Stock
  • 92.00$

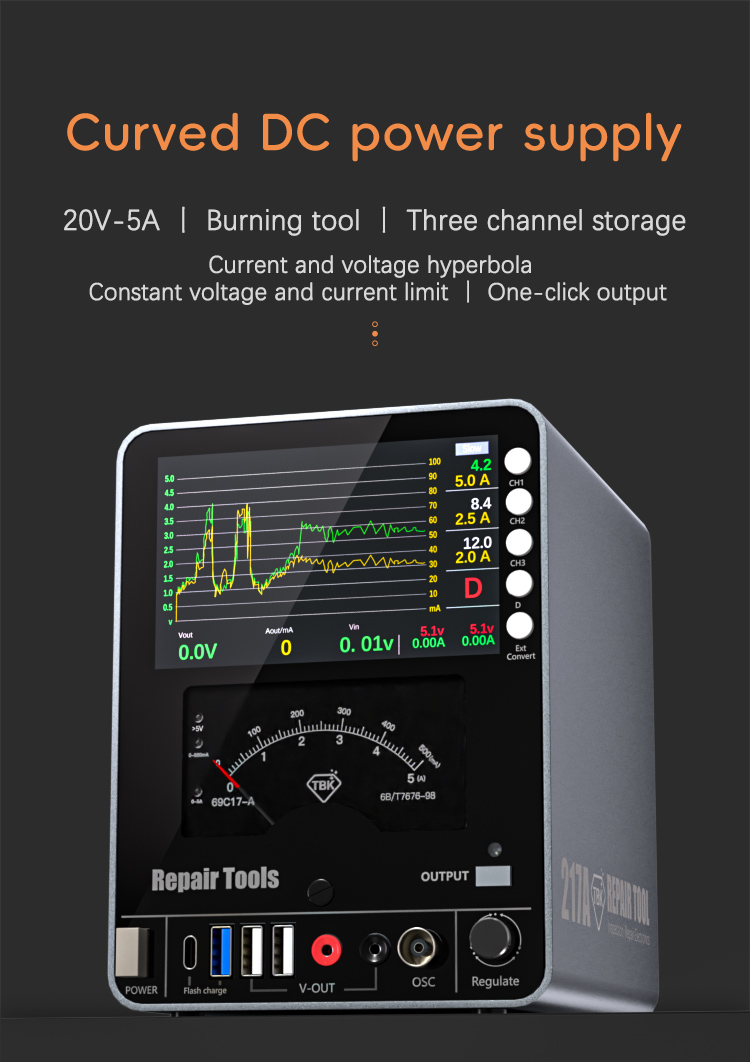

TBK 217A DC Power Supply with Real-Time Curve Display & Short Circuit Repair.

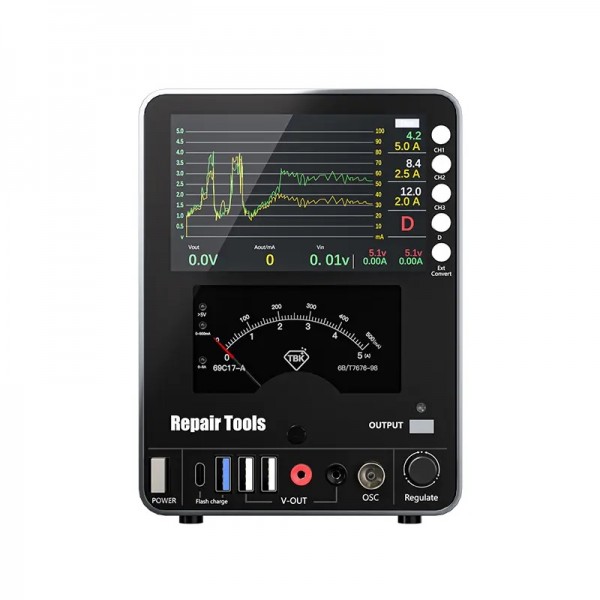

The TBK-217A is a professional DC power supply designed for electronics repair and diagnostics. It provides a stable, adjustable 20V/5A output and features a unique real-time curve display that helps visualize voltage and current changes in a circuit. This device integrates multiple functions into one compact unit, including three programmable memory channels for frequently used settings and a dedicated short-circuit repair tool. With multiple outputs, including dual fast-charging ports and an oscilloscope input, plus essential safety features like one-click output, the TBK-217A is a versatile and reliable tool for any technician's workbench.

Adjustable Power: Provides up to 20V and 5A of clean DC power.

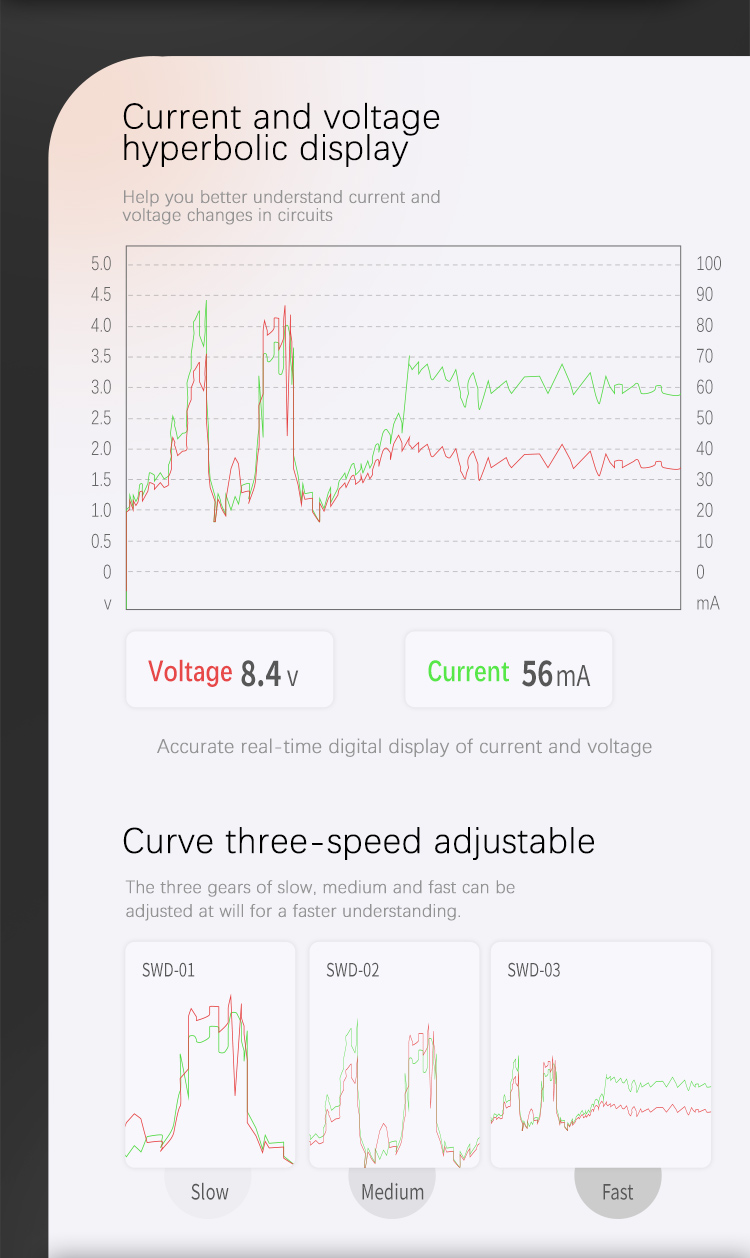

Curve Display: A large color screen displays real-time voltage and current curves for easy fault diagnosis.

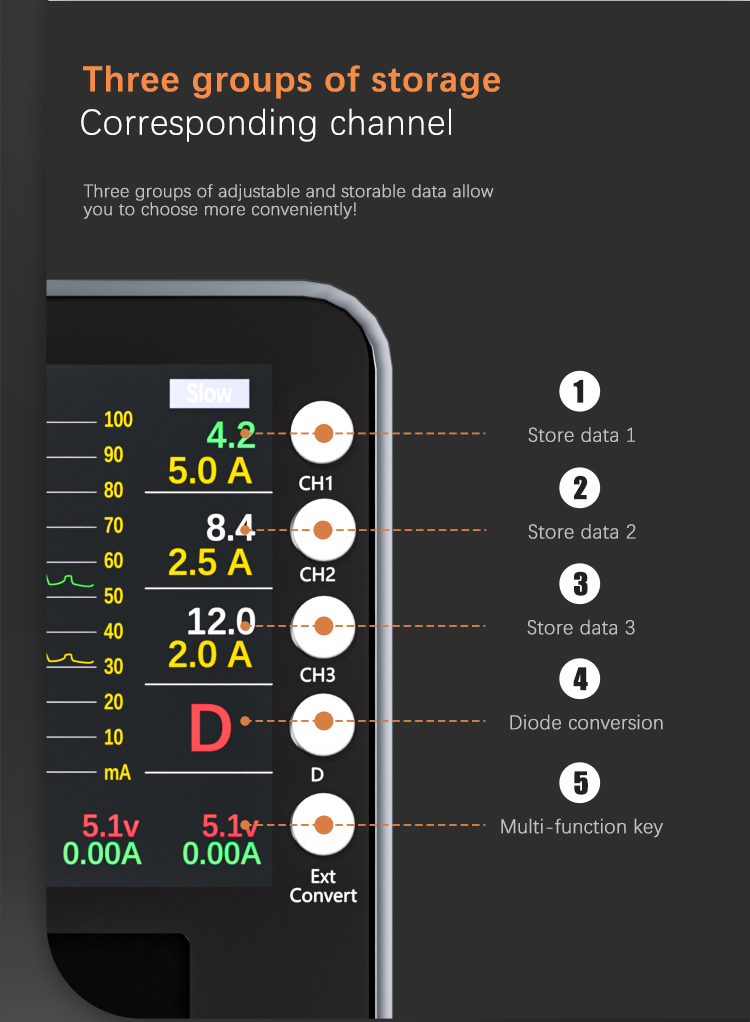

Three Memory Channels: Store and instantly recall three different voltage and current settings.

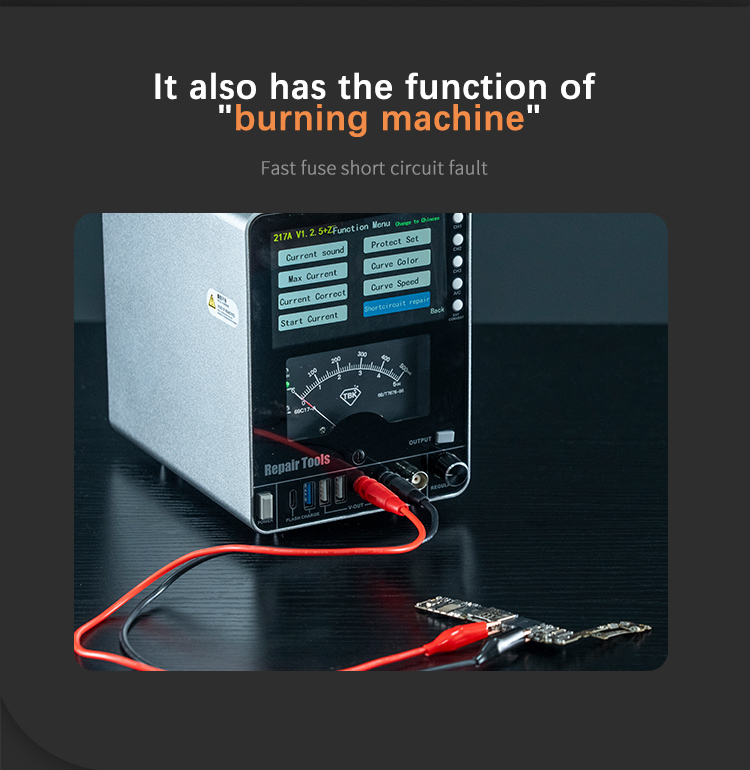

Short Circuit Repair: Features a "burning function" to help locate and fix short circuits on motherboards.

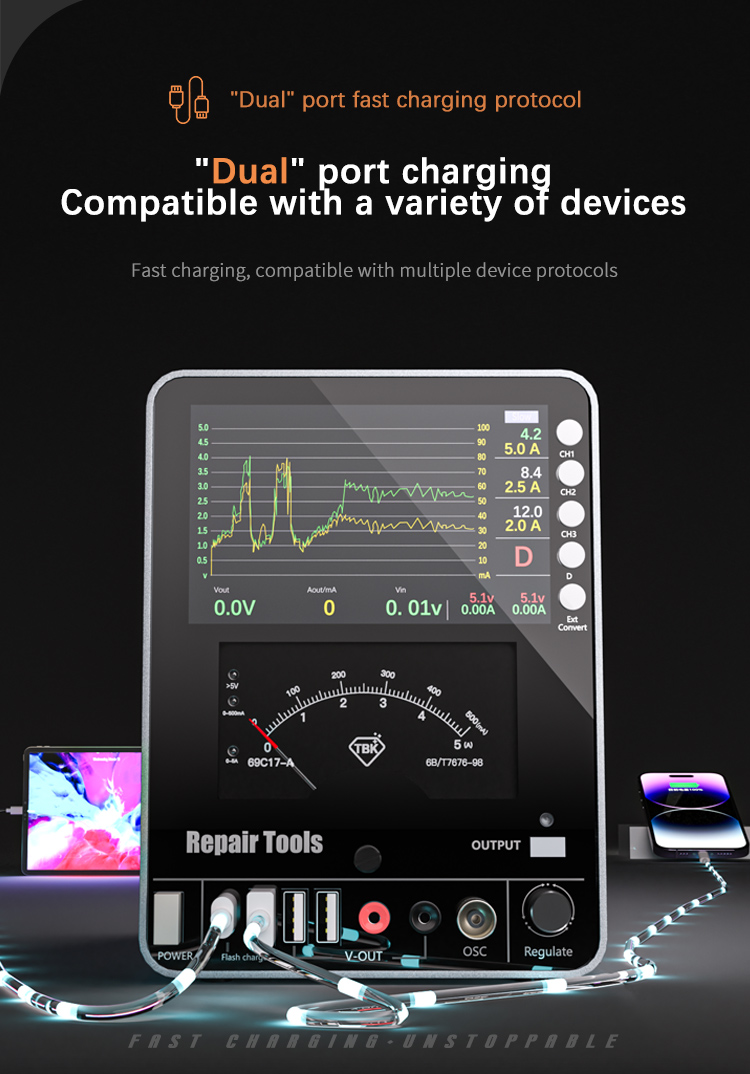

Fast Charging: Equipped with dedicated USB-A and USB-C ports that support multiple fast-charging protocols.

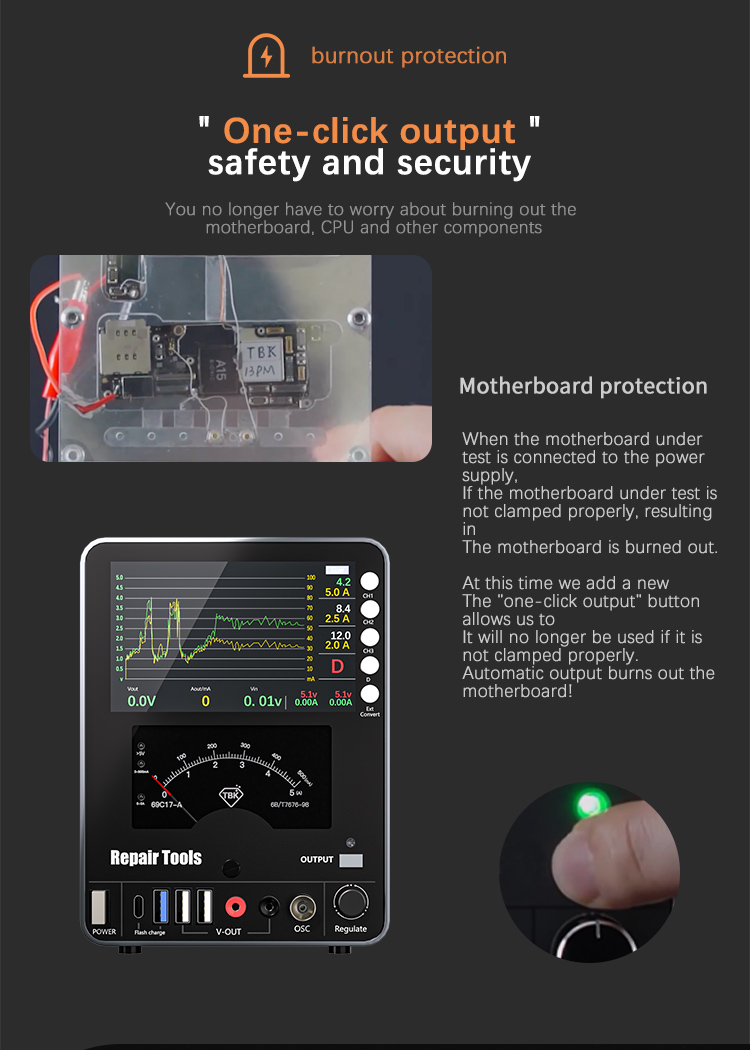

Safety Output Control: A "one-click output" button prevents accidental damage by only applying power when you're ready.

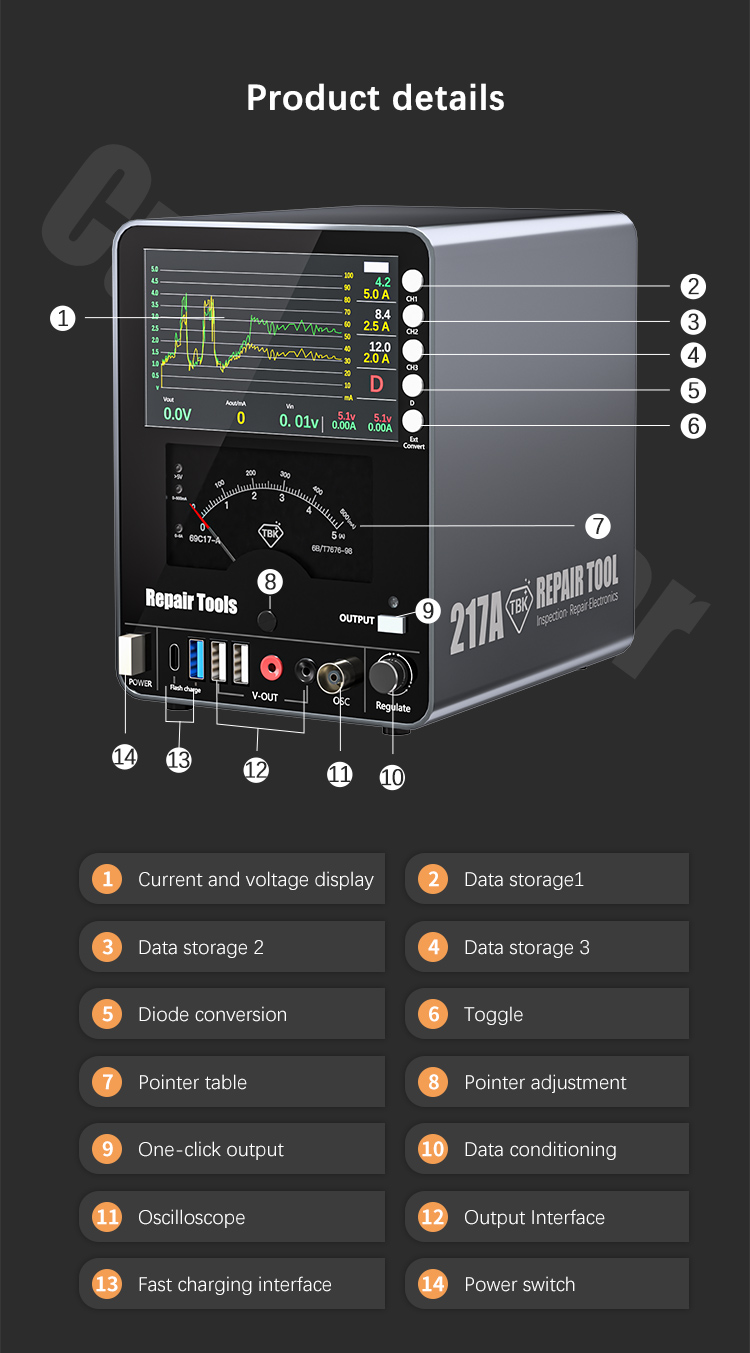

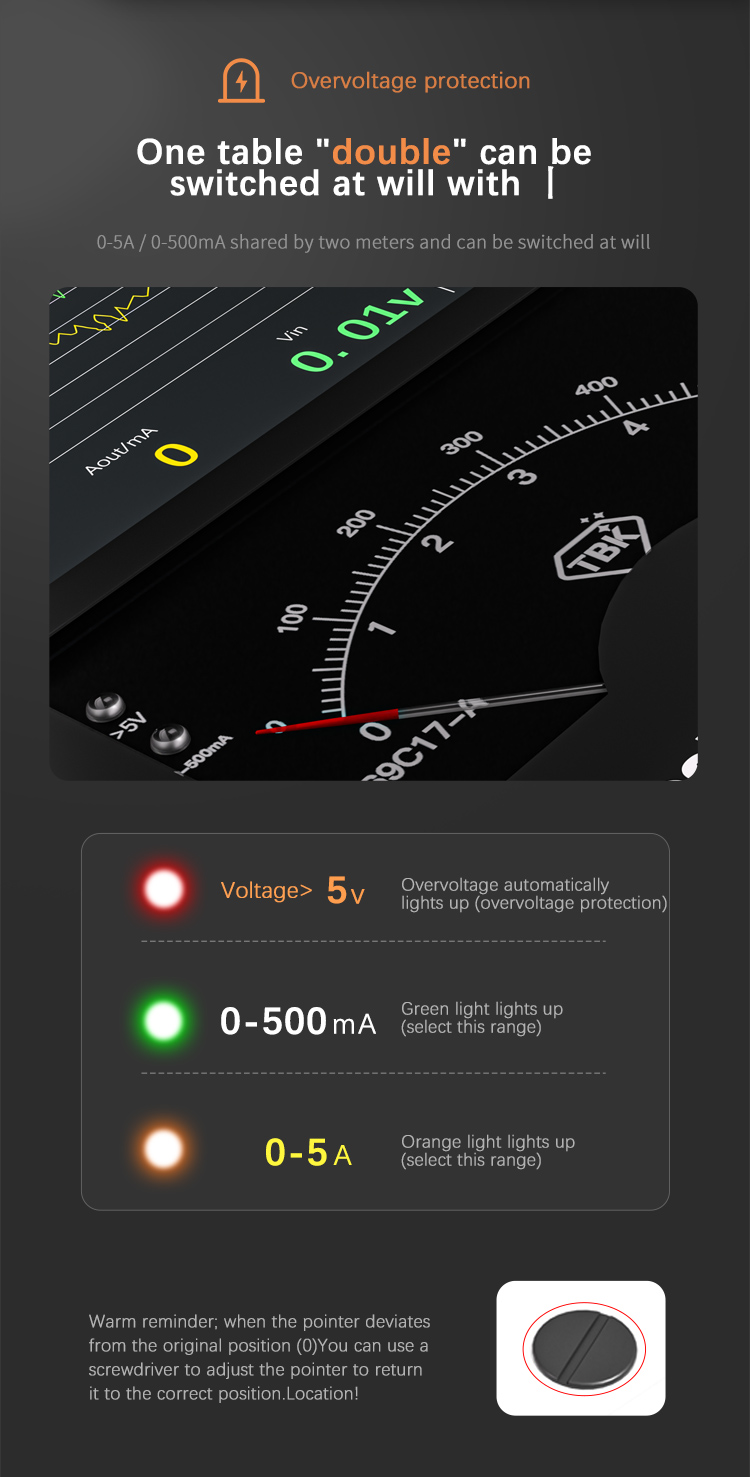

Dual Meter System: Combines a modern digital display with a classic analog pointer meter for comprehensive data reading.

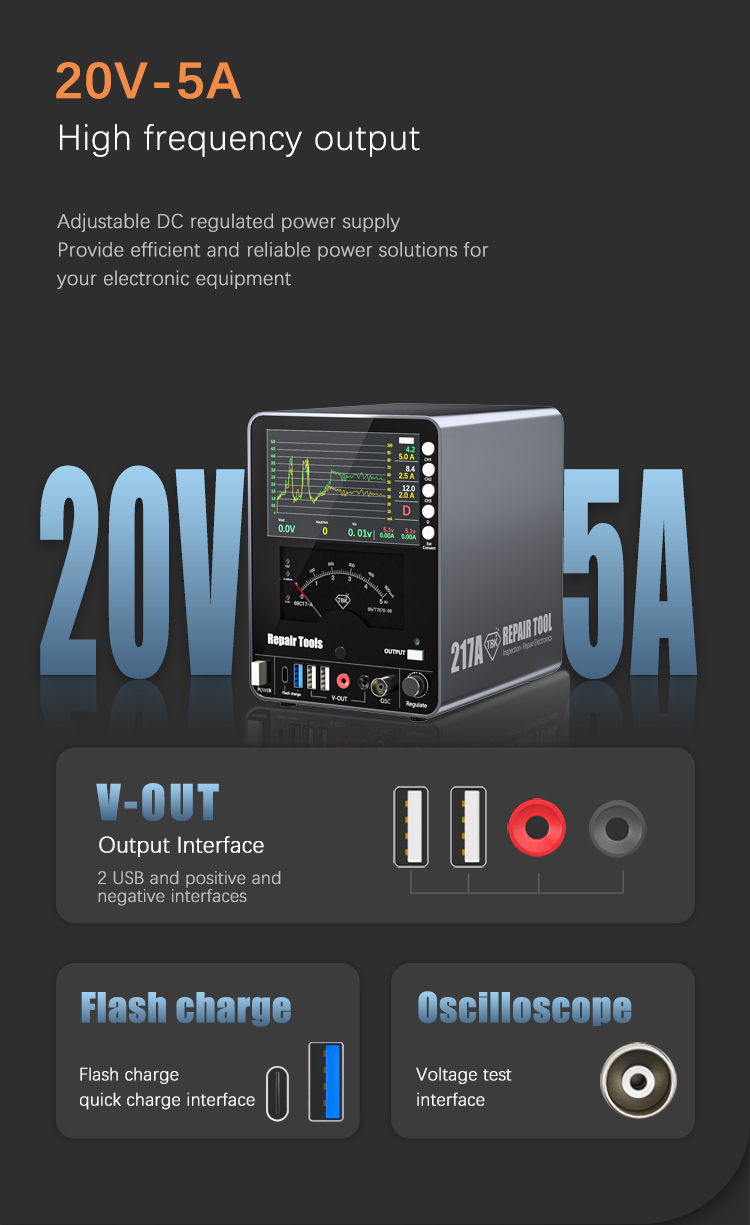

Multi-Function Interfaces: Includes standard V-OUT terminals, USB outputs, and an oscilloscope probe input.

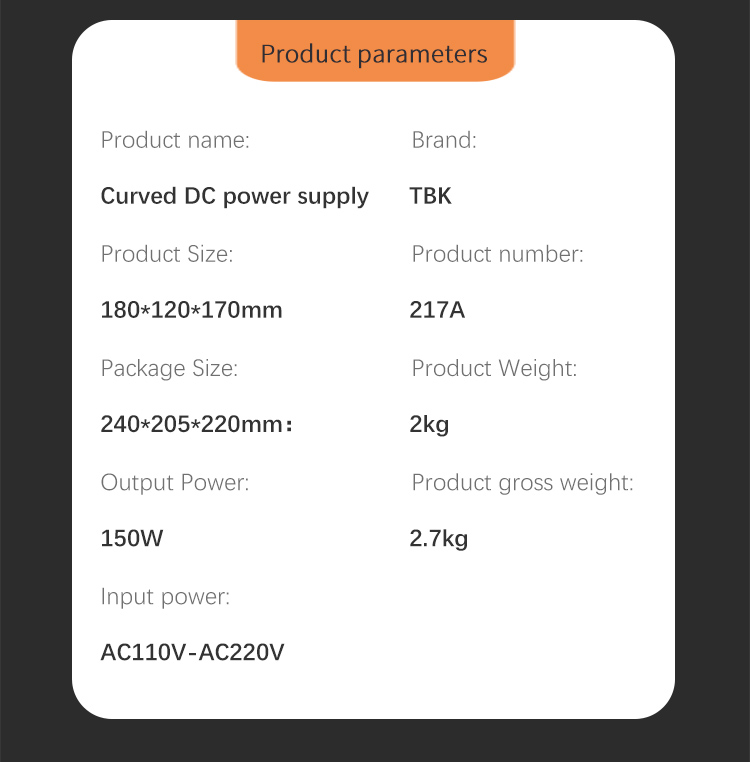

Product Name: Curved DC Power Supply
Brand: TBK
Product Number: 217A
Output Power: 150W
Input Power: AC 110V - 220V
Product Size: 180 x 120 x 170 mm
Product Weight: 2 kg
Package Gross Weight: 2.7 kg
