TBK 219 Soldering & Rework Station with Short Circuit Detector & USB Tester

  • Product Code: TBK 219 Soldering & Rework Station
  • Availability: In Stock
  • 145.00$


TBK 219 Soldering & Rework Station with Short Circuit Detector & USB Tester.

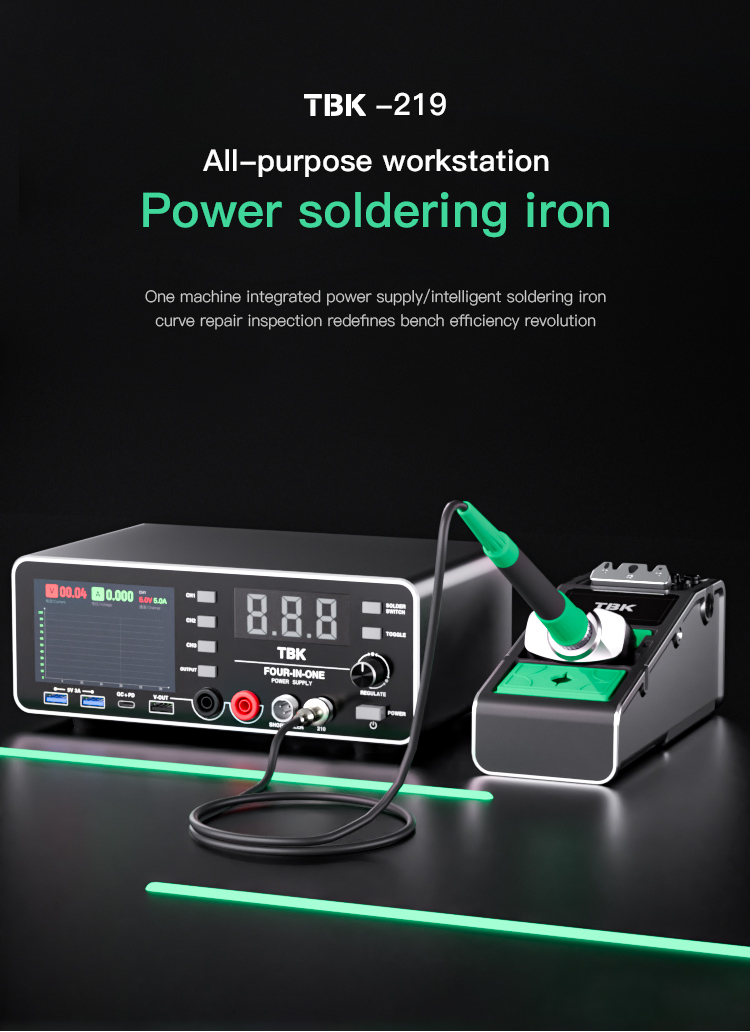

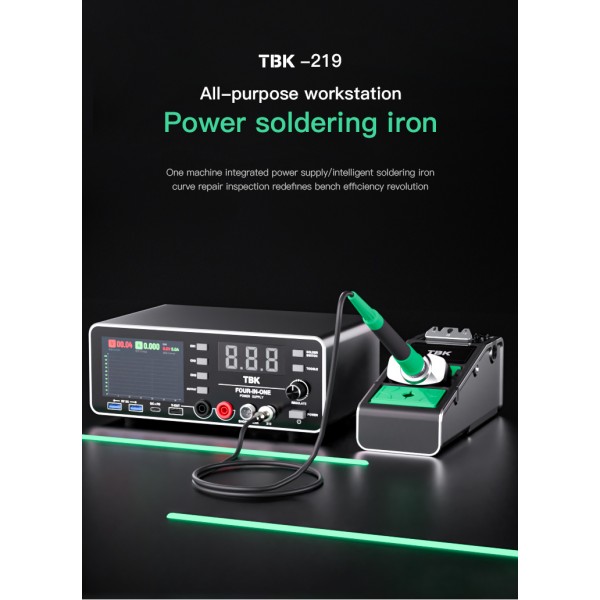

The TBK-219 is an all-in-one workstation designed to streamline your electronics repair process. This compact and powerful unit integrates four essential tools into one: a versatile DC power supply, a rapid-heating soldering iron, a short-circuit fault detector, and a real-time charging monitor. With its intuitive LCD screen, you can easily view output curves and monitor charging data for both USB-A and Type-C devices. The workstation also allows you to save and recall three custom voltage and current presets for frequently repeated tasks. From its one-second heat-up soldering to its precise short-circuit repair function, the TBK-219 is built to enhance bench efficiency for professionals and hobbyists alike.

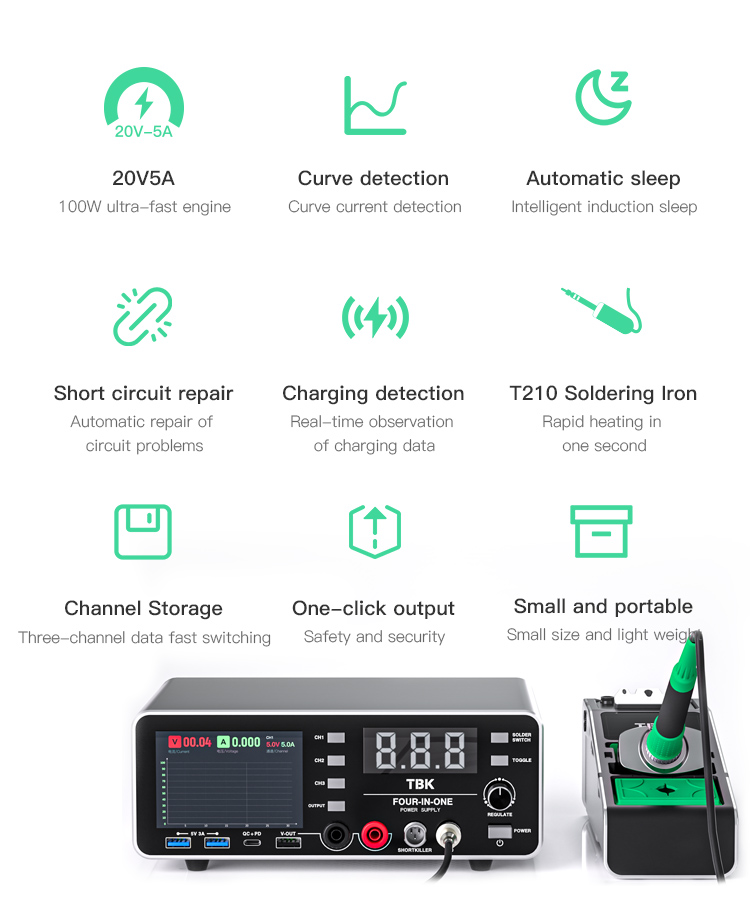

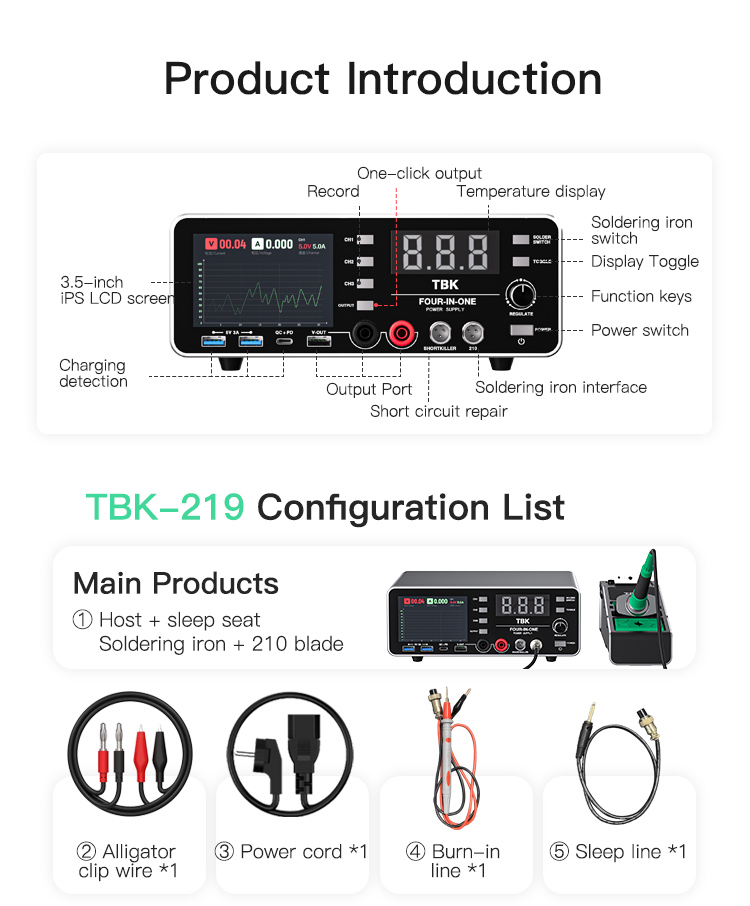

4-in-1 Integrated Design: Combines a DC power supply, intelligent soldering station, short circuit detector, and a charging monitor in a single compact unit.

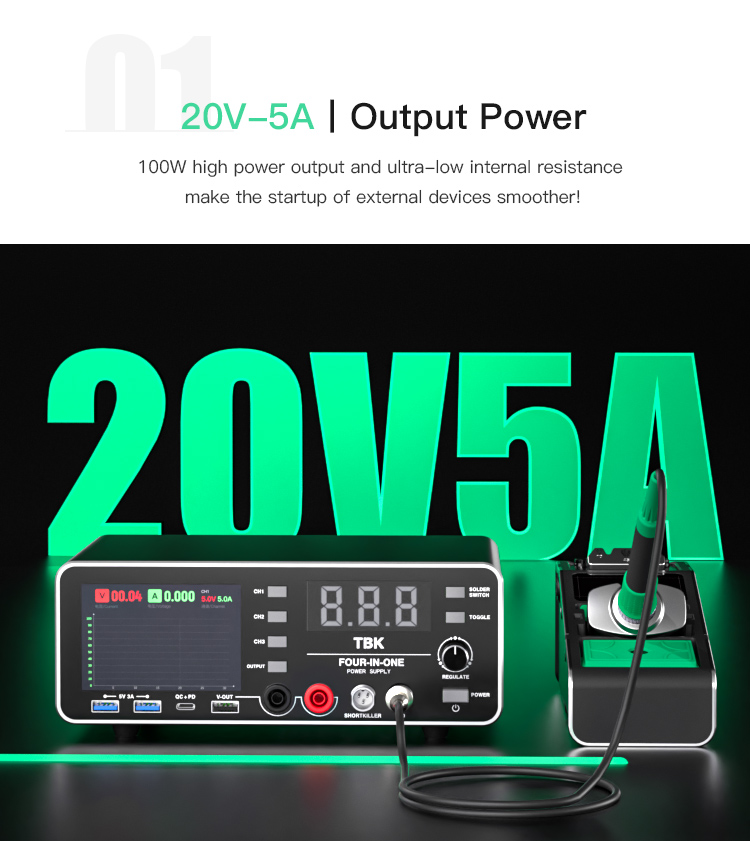

Powerful & Adjustable Output: Delivers up to 100W (20V/5A) of power, perfect for various electronic devices.

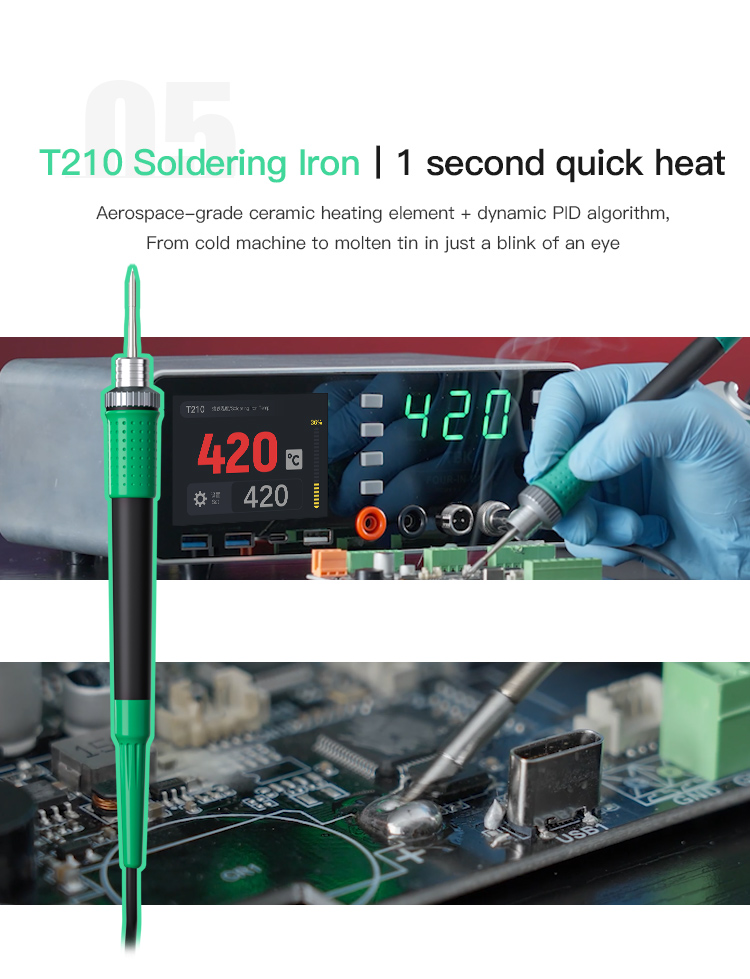

Rapid Heating Soldering Iron: Heats to the required temperature in just one second and features an intelligent auto-sleep function for safety and longevity.

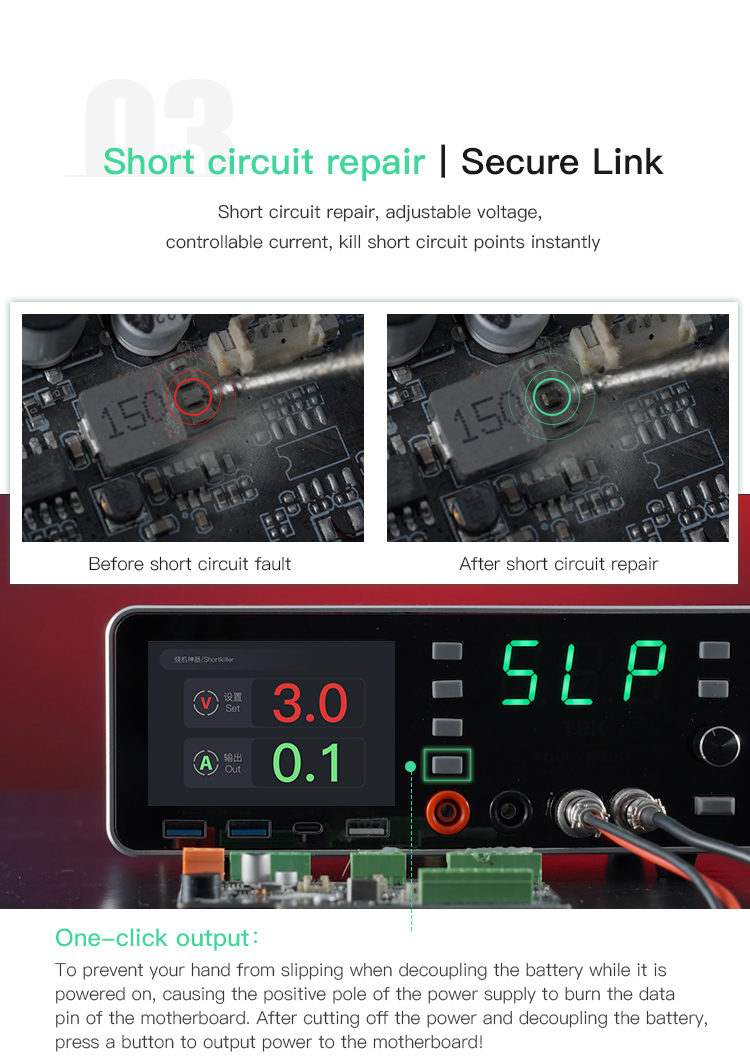

Short Circuit Repair: Quickly and safely locates and resolves short circuits with adjustable voltage and current.

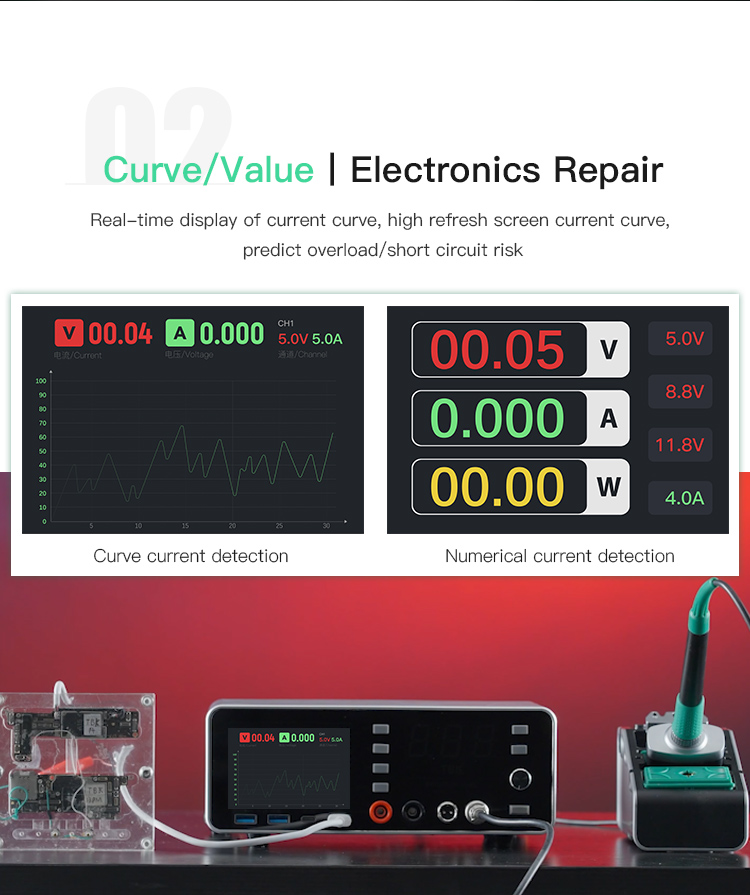

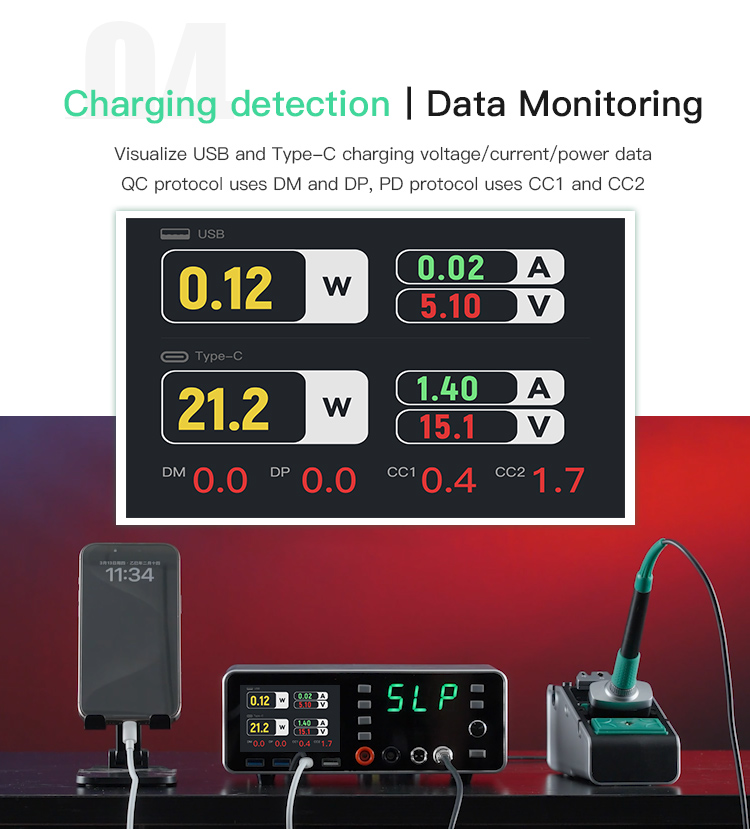

Real-time Data Monitoring: A 3.5-inch IPS screen displays current curves and charging status (Voltage, Amperage, Wattage) for USB and Type-C ports.

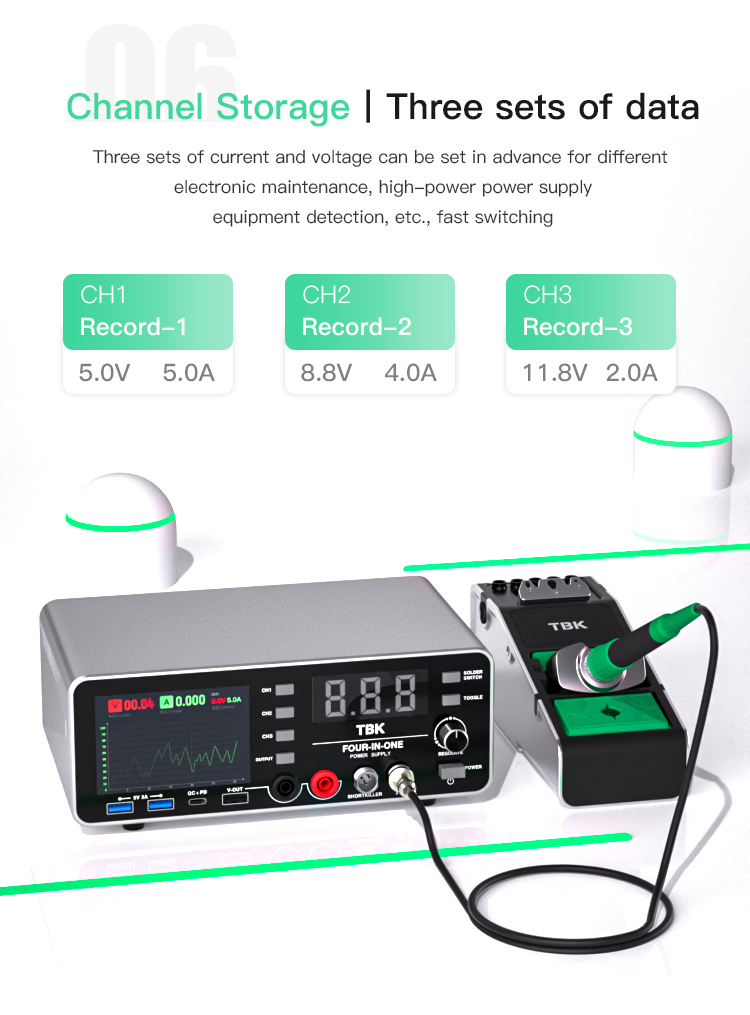

Channel Memory: Save up to three frequently used voltage and current settings for instant recall.
One-Click Output: A dedicated button for safe and controlled power delivery to the motherboard.

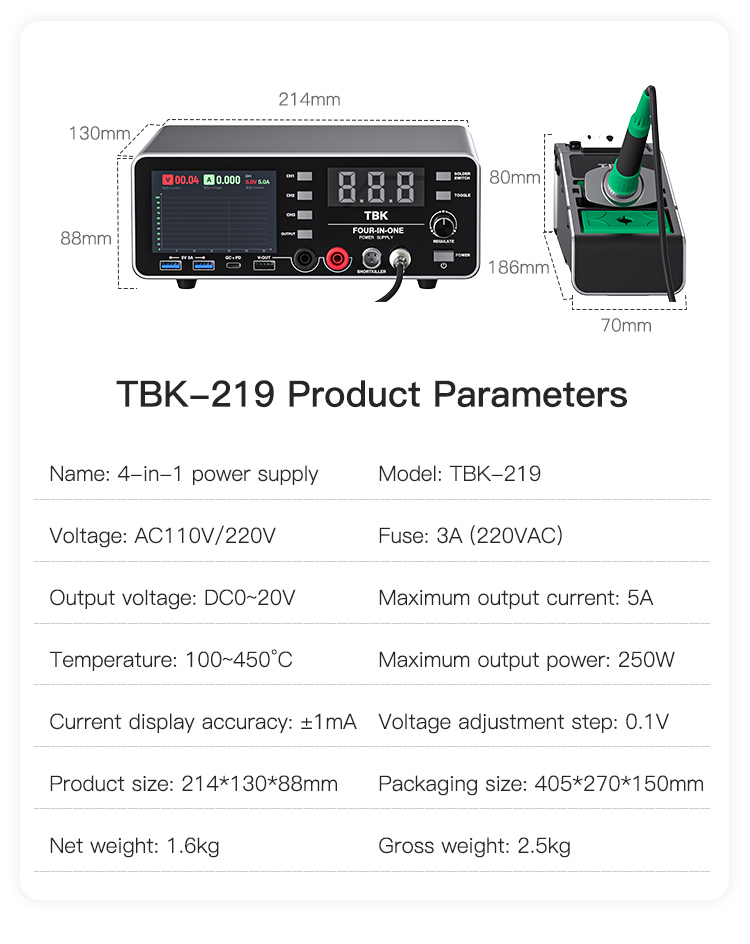

Name: 4-in-1 Power Supply
Model: TBK-219
Voltage: AC 110V / 220V
Fuse: 3A (220VAC)
Output Voltage: DC 0–20V
Maximum Output Current: 5A
Temperature: 100–450°C
Maximum Output Power: 250W
Current Display Accuracy: ±1mA
Voltage Adjustment Step: 0.1V
Product Size: 214 x 130 x 88mm
Packaging Size: 405 x 270 x 150mm
Net Weight: 1.6kg
Gross Weight: 2.5kg
