TBK R2202 Thermal Imaging Camera for PCB Short Circuit & Fault Diagnosis.

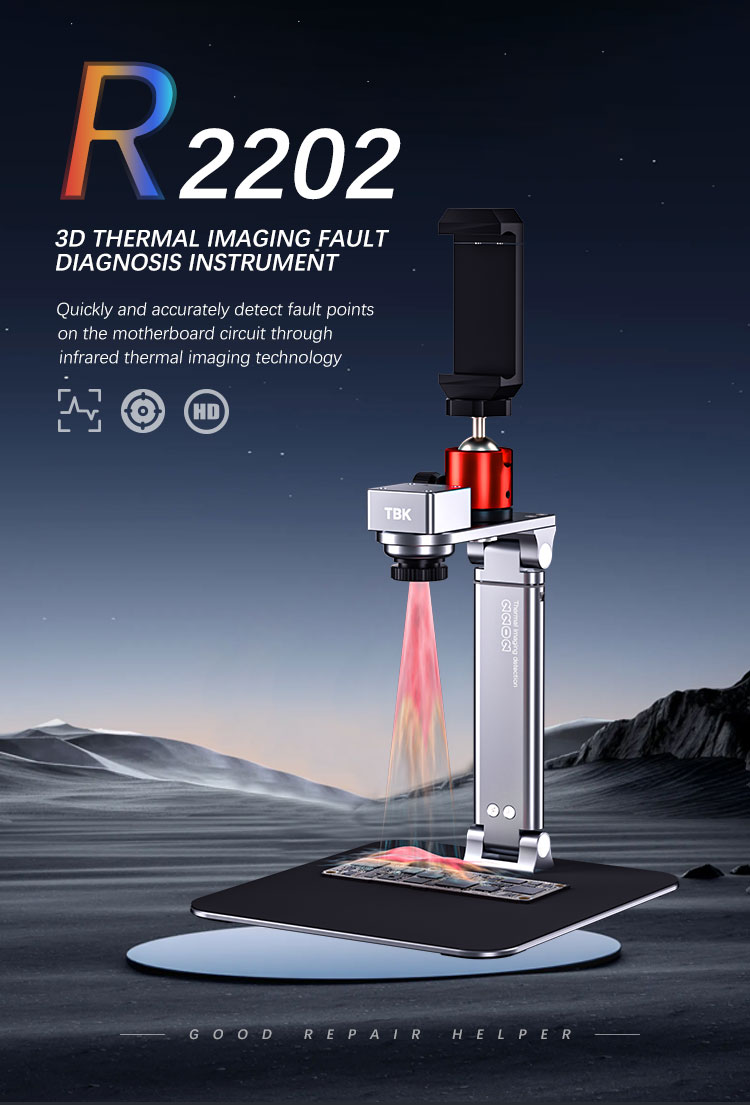

The TBK R2202 is a diagnostic tool designed for technicians and engineers who work with electronics. It uses thermal imaging technology to quickly find faults on printed circuit boards (PCBA), such as short circuits and current leakage. By visualizing heat patterns, this instrument helps make the repair and development process more efficient.

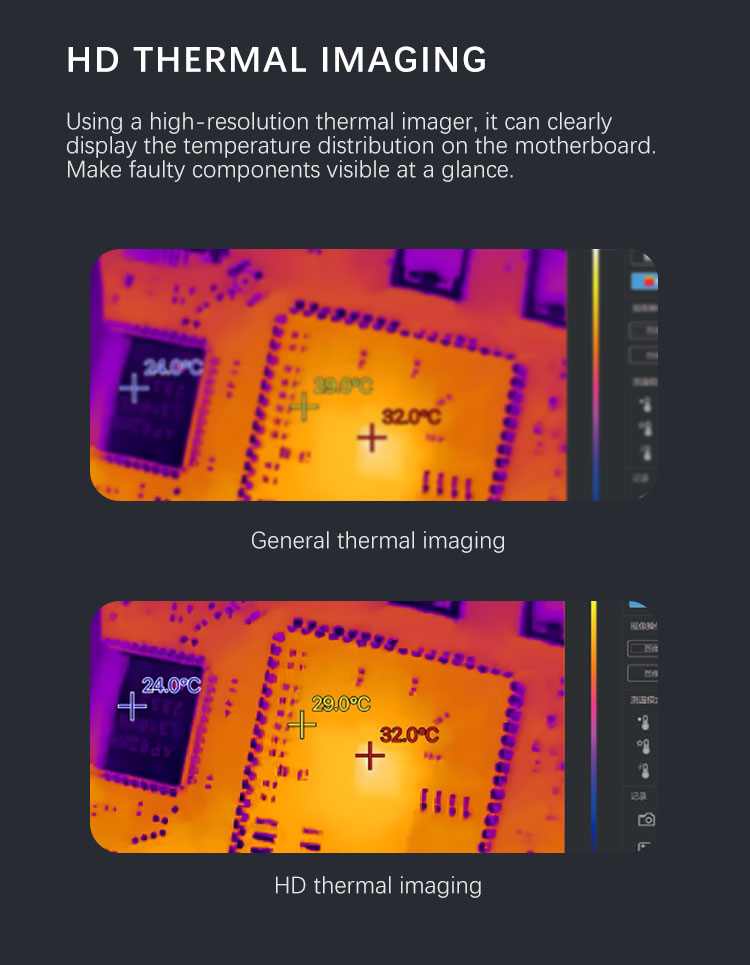

Clear Thermal Vision: Equipped with a high-resolution infrared thermal imaging camera that clearly displays the temperature distribution across a motherboard, making it easy to see faulty components.

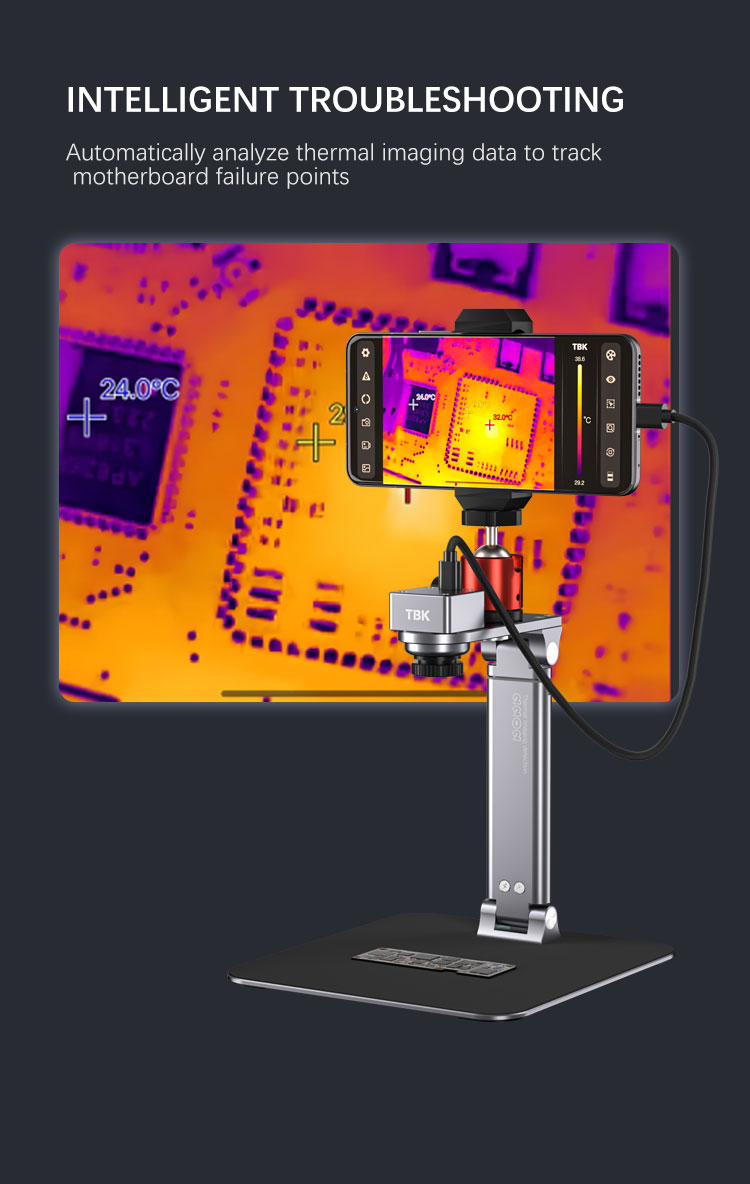

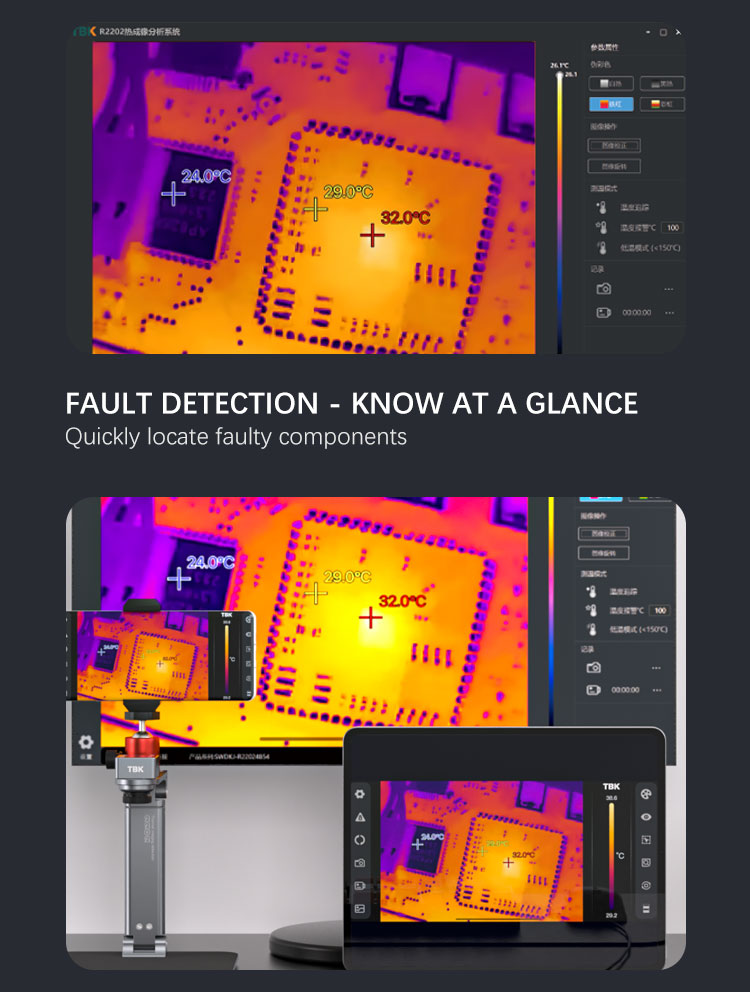

Intelligent Analysis: Automatically analyzes thermal data to help you track down failure points quickly.

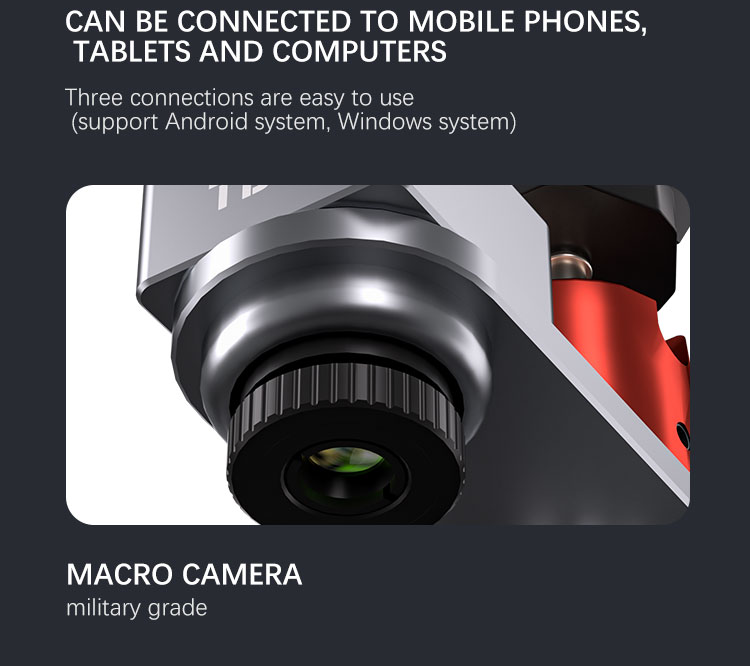

Broad Compatibility: Easily connects to and displays on Android mobile phones, tablets, and Windows computers.

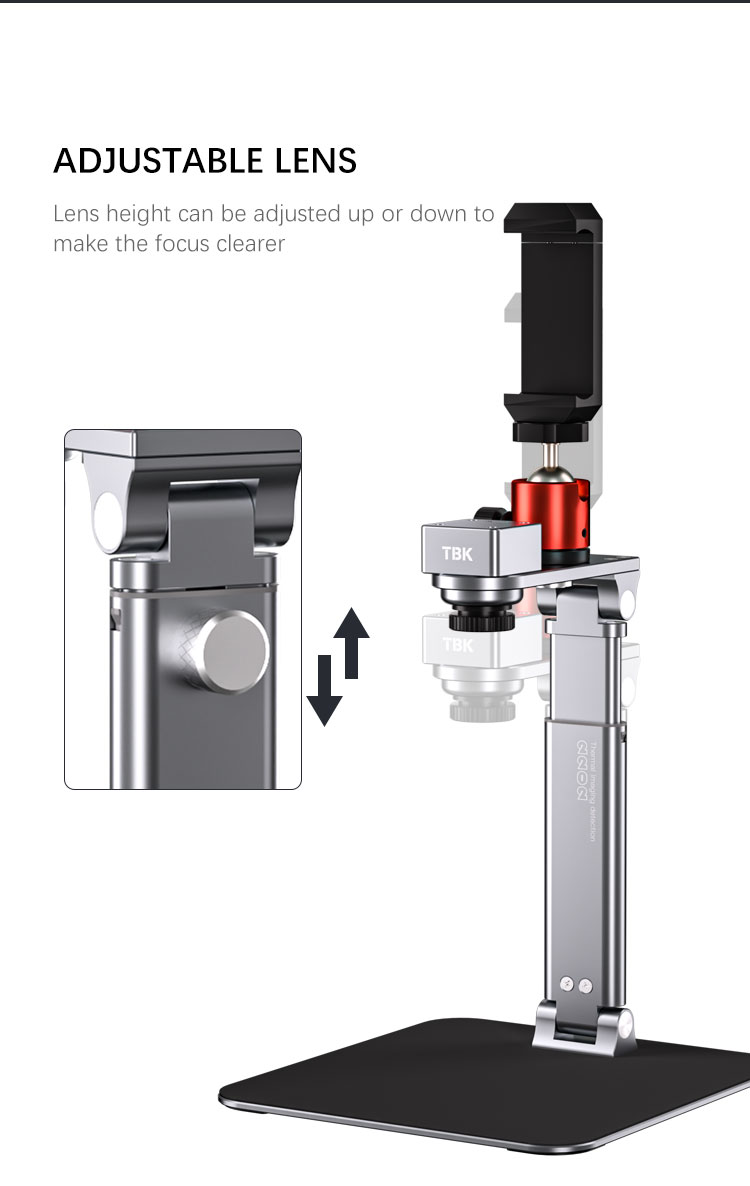

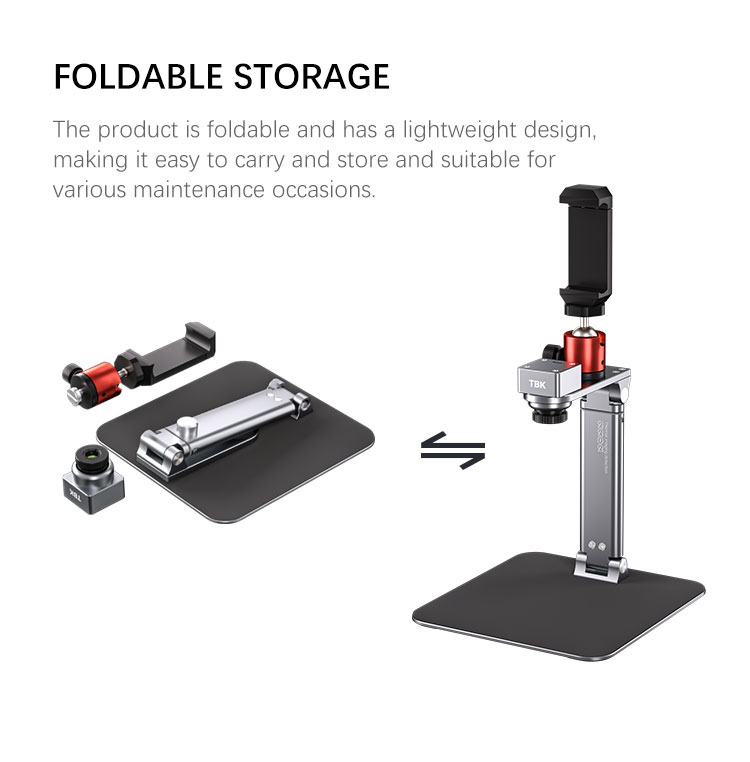

Adjustable & Portable: The lens height can be adjusted for a sharp focus, and the entire unit features a lightweight, foldable design for easy storage and transportation.

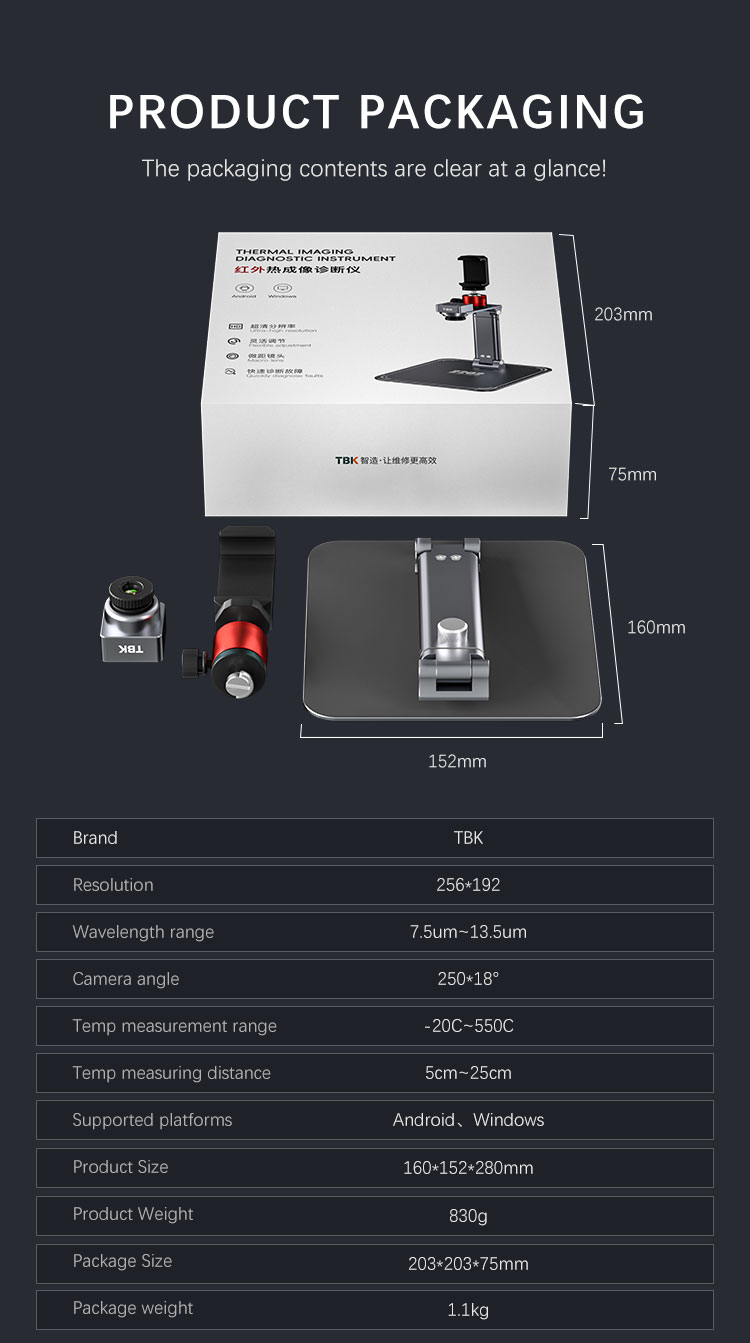

Brand: TBK

Resolution: 256×192 pixels

Wavelength Range: 7.5μm – 13.5μm

Camera Angle: 25∘×18∘

Temperature Range: −20∘C to 550∘C

Optimal Measuring Distance: 5 cm to 25 cm

Supported Systems: Android, Windows

Product Dimensions: 160 × 152 × 280 mm

Product Weight: 830 g
