TBK 2201: 3-in-1 Laser Soldering Machine with Thermal Camera & 4K Microscope

  • Product Code: TBK 2201 3-in-1 Laser Soldering Machine
  • Availability: In Stock
  • 1 450.00$

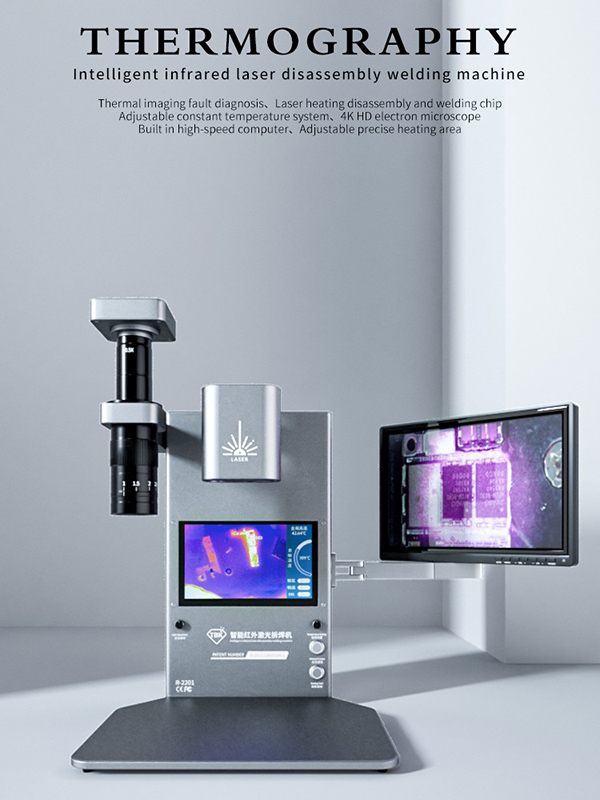

TBK R-2201 3-in-1 Laser Soldering Machine with Thermal Camera & 4K Microscope.


The TBK R-2201 is an advanced Laser Soldering Machine engineered for high-precision electronics repair. It utilizes a powerful laser for non-contact heating, allowing for extremely accurate soldering and desoldering of delicate components. To enhance its core function, this machine is integrated with a thermal imaging camera for pre-repair diagnostics and a 4K HD microscope for a crystal-clear, magnified view of the workspace. Featuring an adjustable heating spot, precise temperature control, and an efficient dual-display interface, this Laser Soldering Machine provides a complete and powerful solution for complex motherboard and micro-component repairs.

Precise Laser Soldering System:

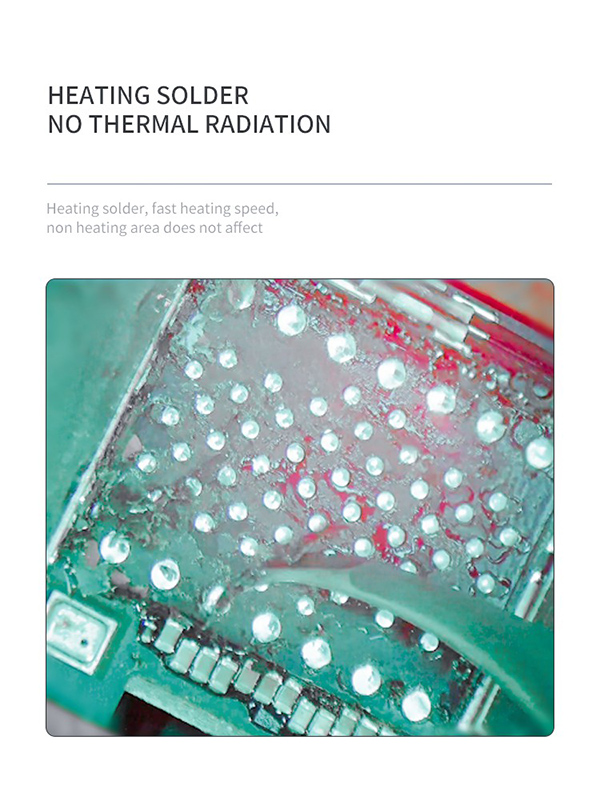

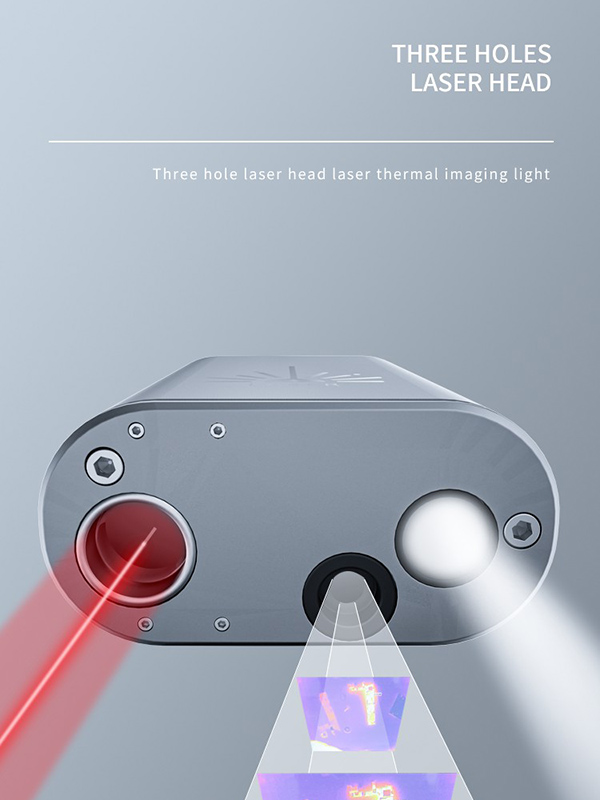

Utilizes non-contact laser heating, concentrating heat precisely to avoid damaging surrounding components.

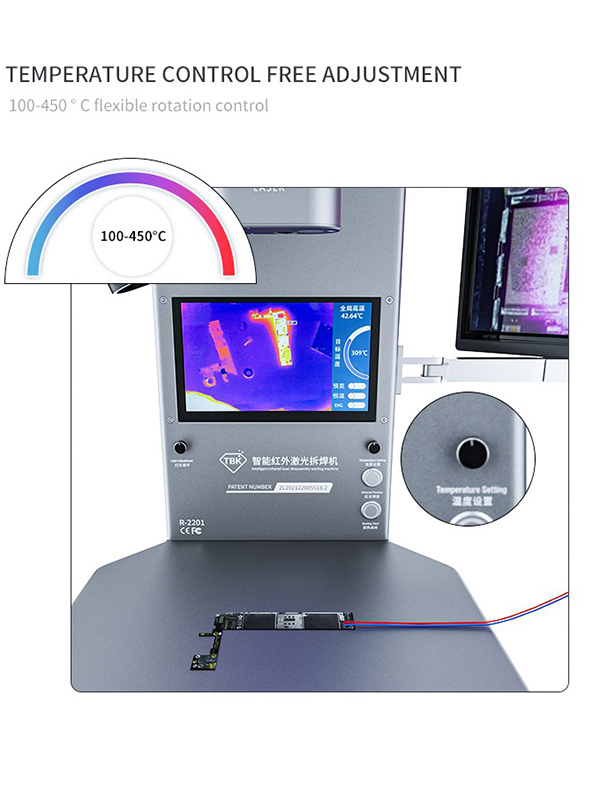

The heating spot size and temperature (100−450°C) are fully adjustable to suit a wide variety of delicate soldering tasks.
Infrared Thermal Imaging Diagnostics:

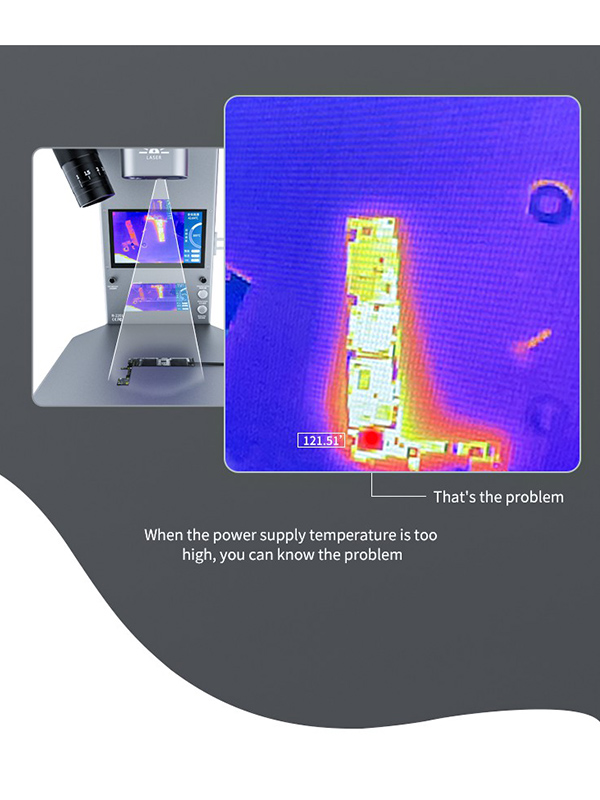

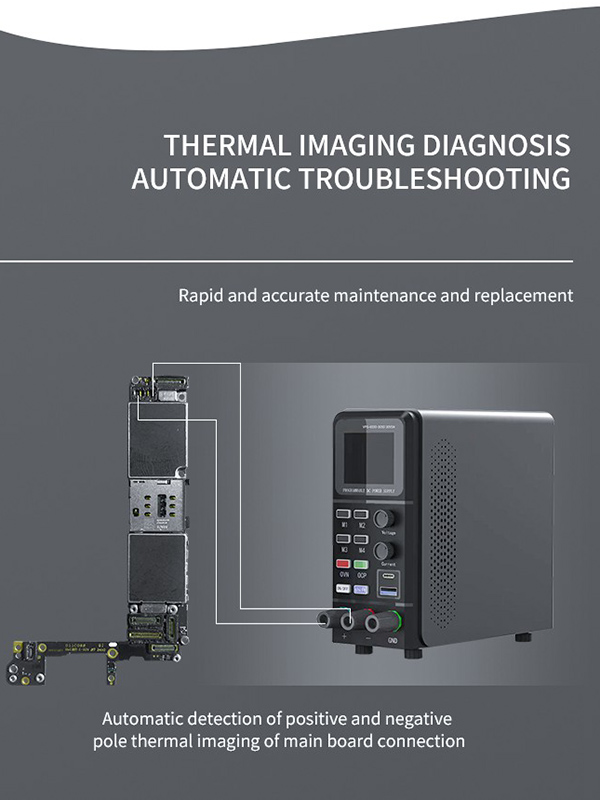

An integrated thermal camera quickly and accurately pinpoints faults on motherboards, such as short circuits and current leaks, significantly improving diagnostic efficiency.

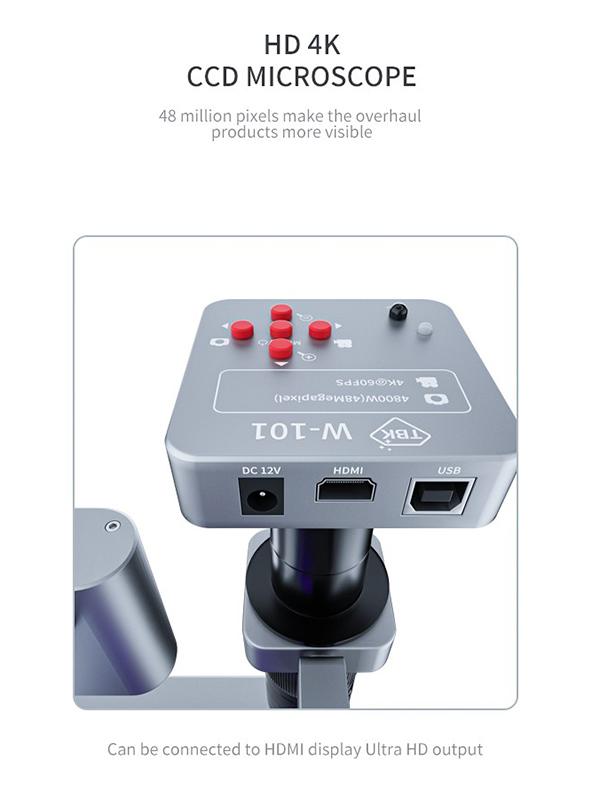

4K Ultra-HD Microscope:
Equipped with a 48-megapixel industrial-grade CCD camera that supports 4K/60FPS ultra-high-definition video output for a smooth and clear image.

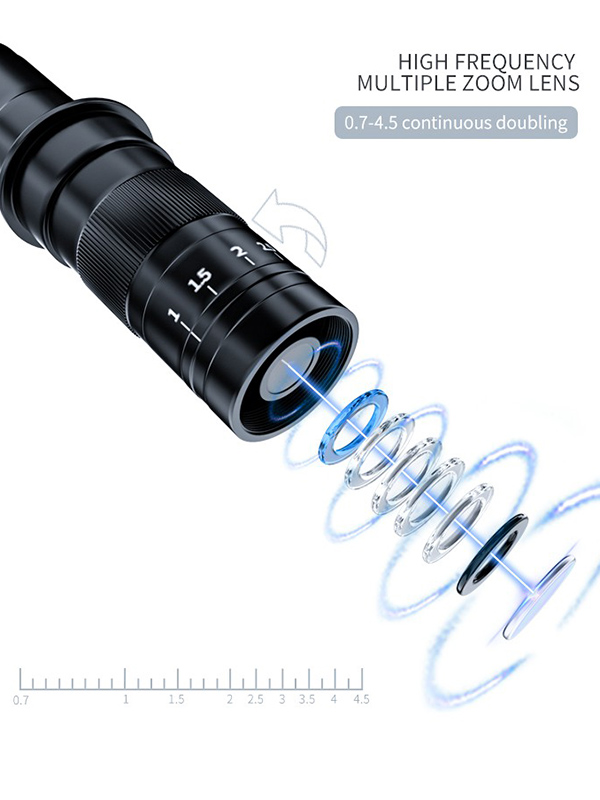

Offers high-magnification continuous zoom, making the smallest components and details clearly visible.
Dual-Screen Display for Enhanced Workflow:

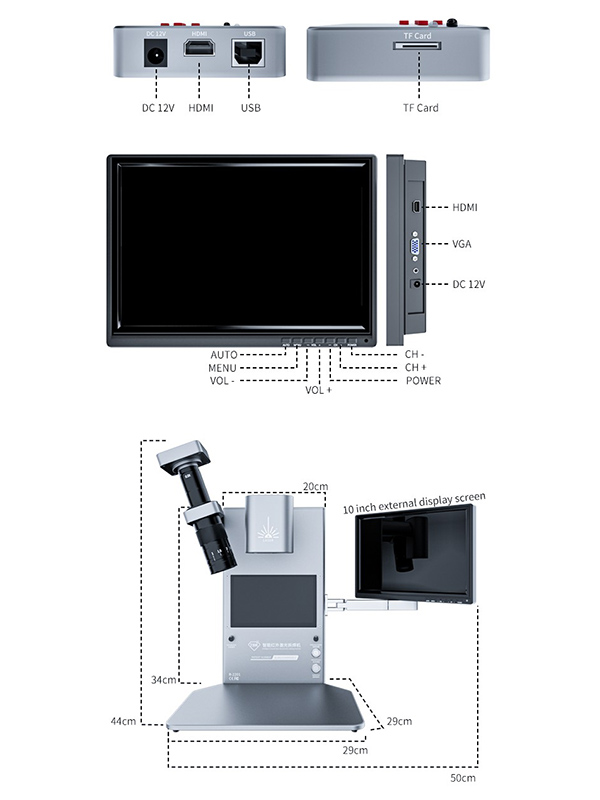

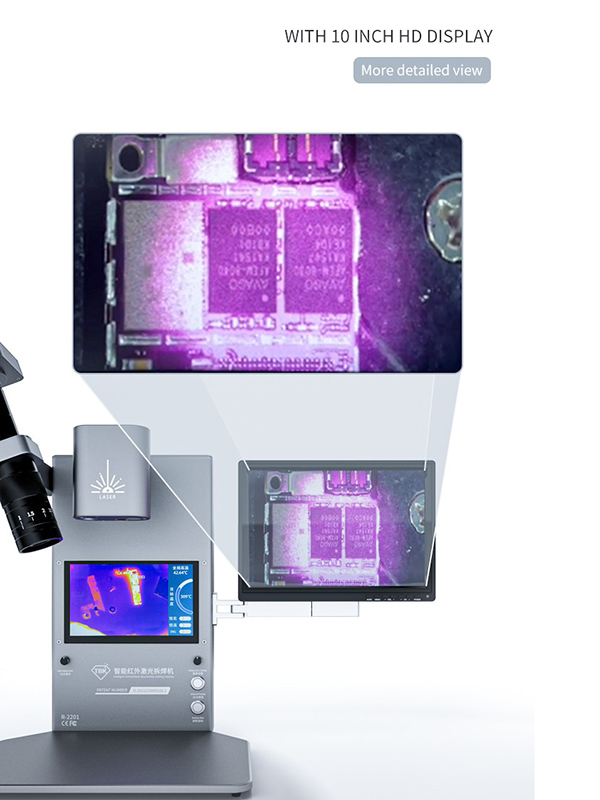

Features a 7-inch built-in control screen and a 10-inch external HD display.
Allows for simultaneous viewing of the thermal diagnostic image and the live microscope feed, enabling you to diagnose and operate at the same time.

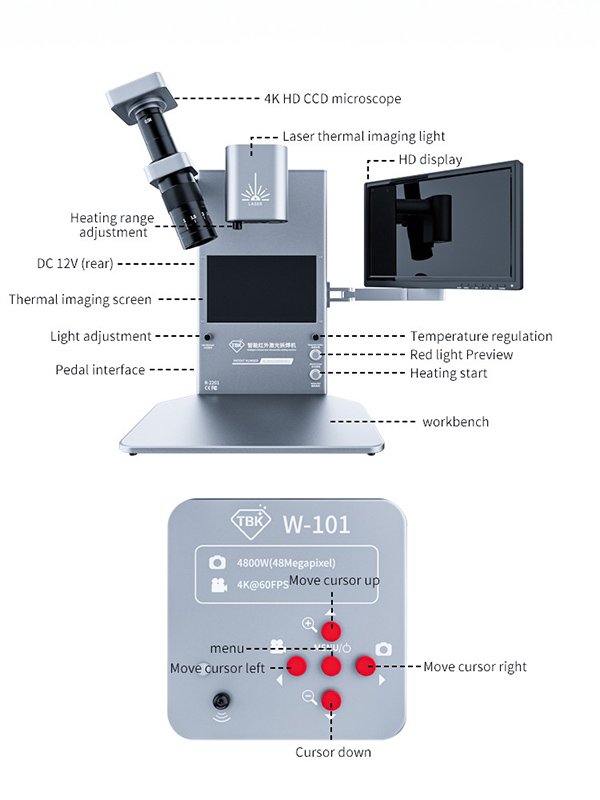

Integrated and User-Friendly Design:

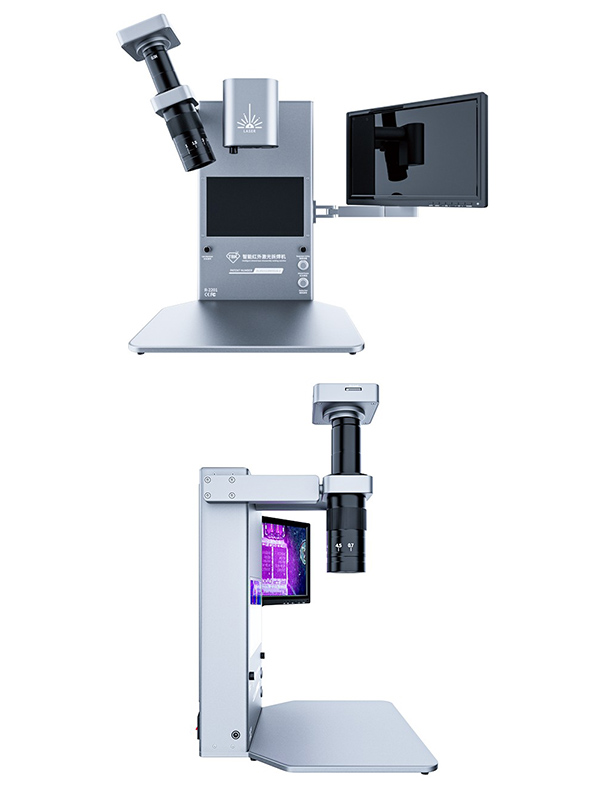

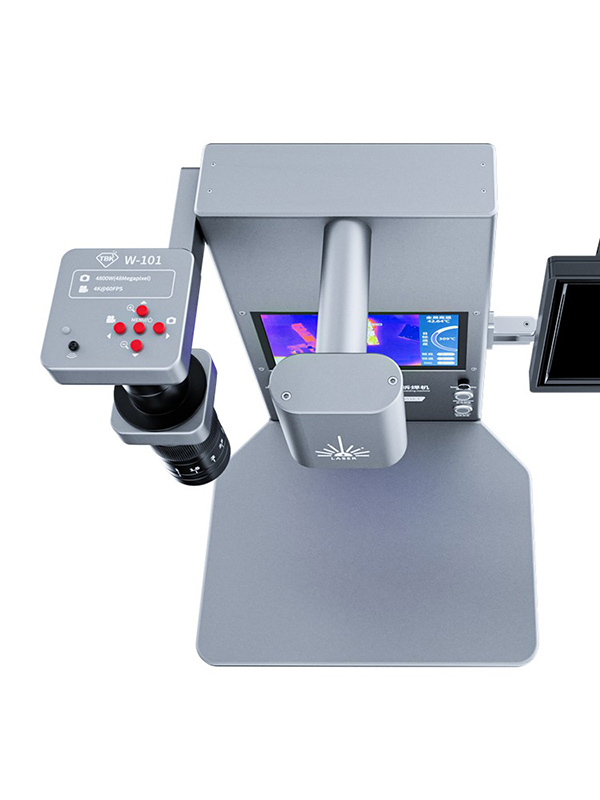

Combines diagnostics, soldering/desoldering, and inspection into a single, compact workstation.
Includes a foot switch for hands-free operation, allowing you to focus both hands on your precision work safely and conveniently.

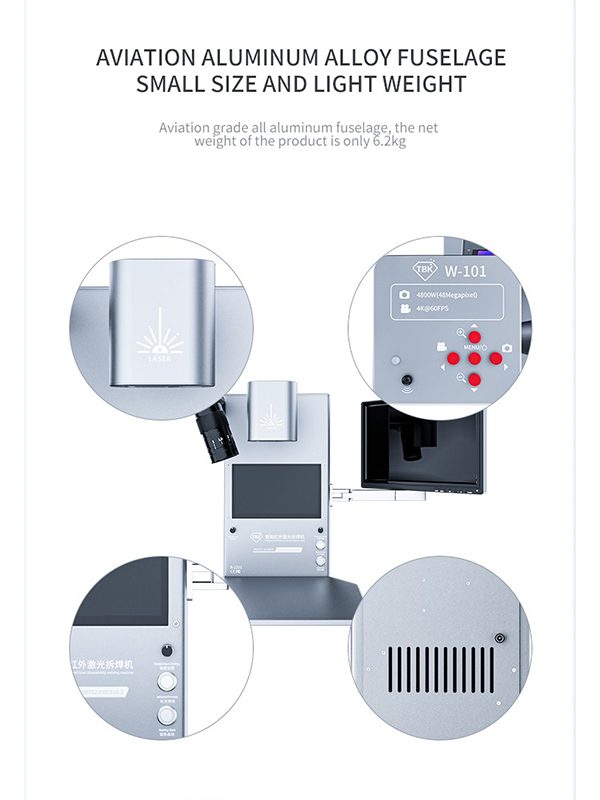

The body is constructed from durable and lightweight aviation-grade aluminum alloy.

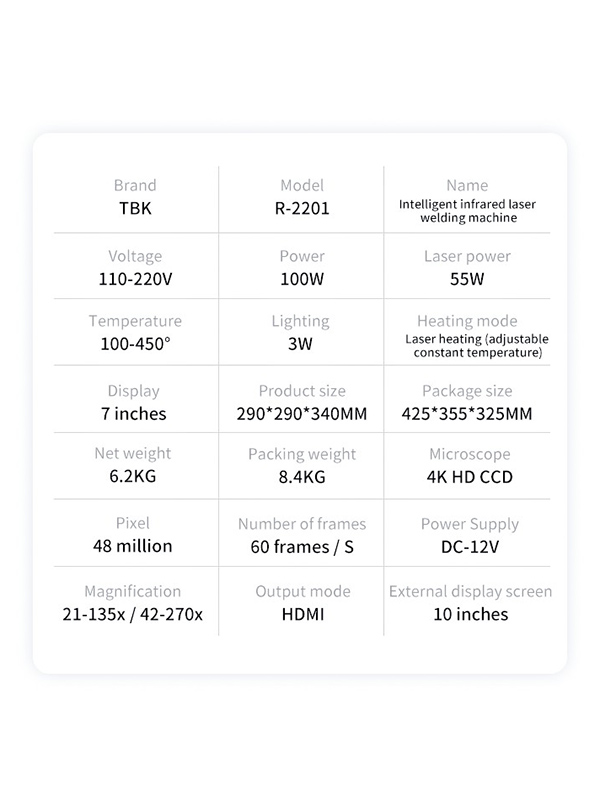

Brand, TBK
Model, R-2201
Name, Intelligent infrared laser welding machine
Laser Power, 55W
Total Power, 100W
Voltage, 110-220V
Temperature Range, 100-450°C
Display, 7 inches (built-in)
External Display, 10 inches
Microscope, 4K HD CCD
Pixel, 48 Million
Frame Rate, 60 frames / S
Magnification, 21-135x / 42-270x
Output Mode, HDMI
Net Weight, 6.2KG
Product Size, 290 * 290 * 340MM
Gross weight:8.4KG
Wooden box size:425*355*325mm
