TBK D7 Curve Waveform Meter: DC Power Supply, Soldering & Diagnostic Tool.

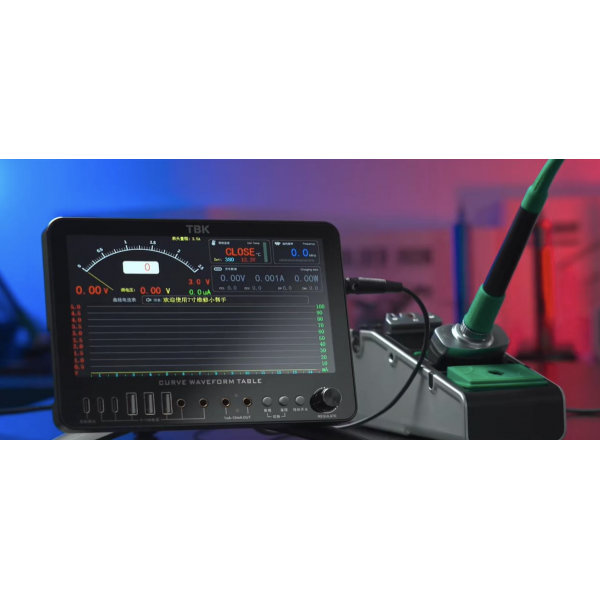

Discover the TBK-D7, an all-in-one desktop tool for electronics diagnostics and repair. This device combines several essential functions into one compact unit, serving as a powerful Multifunctional Curve Waveform Meter designed for technicians, repair shops, and hobbyists.

It features a large, clear screen that displays both digital meter readings and a real-time curve graph, allowing you to visually analyze power consumption and device behavior.

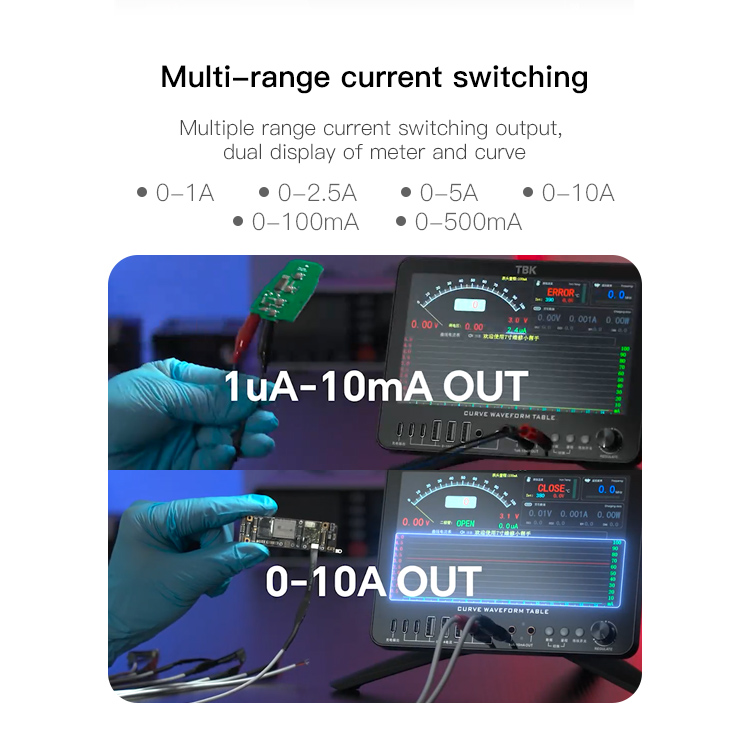

Multi-Range Current Output: Easily switch between different current ranges, including a high-precision 1uA-10mA output for delicate components and a powerful 0-10A output for general power needs.

Dual Display: View data simultaneously as large numerical readouts and as a "Curve Waveform Table" to track changes over time.

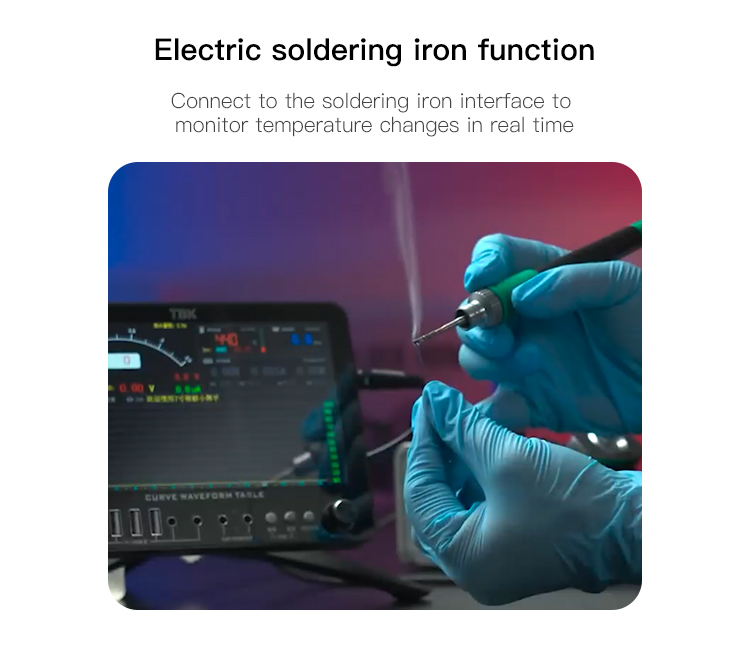

Integrated Soldering Function: Connect an electric soldering iron and monitor the temperature in real-time, with a maximum temperature of 480°C.

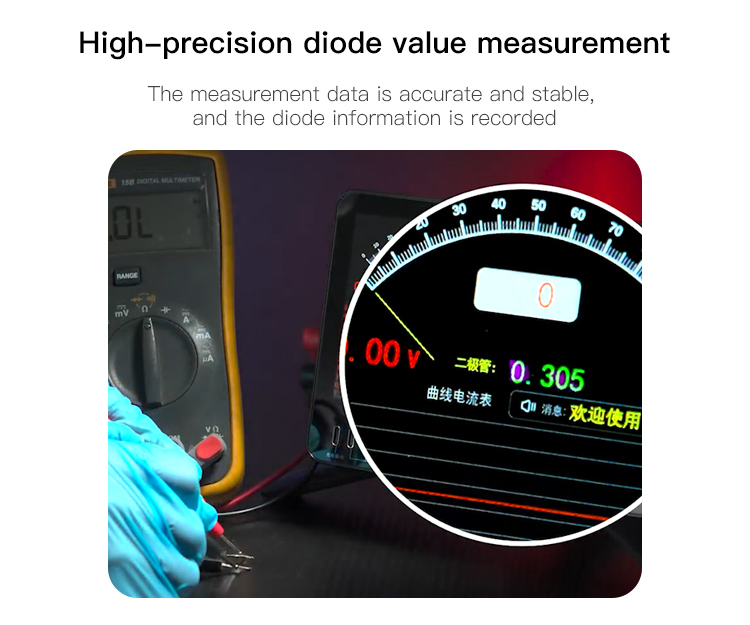

Component Measurement: Perform high-precision measurements, such as testing diode values, to quickly diagnose faulty components.

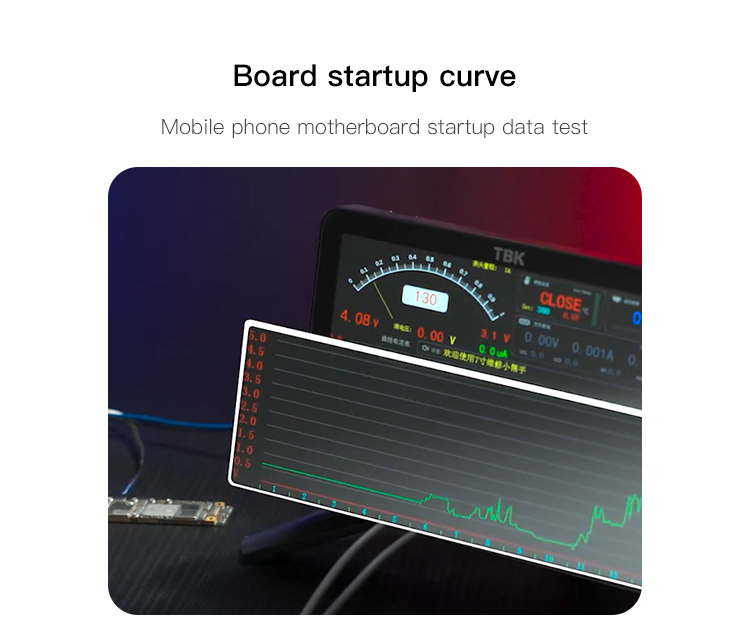

Board Startup Analysis: Test and record the startup data of devices like mobile phone motherboards to identify power-on issues.

Charging Data Analysis: Monitor the charging data of devices like smartphones in real-time, displaying voltage, current, and wattage.

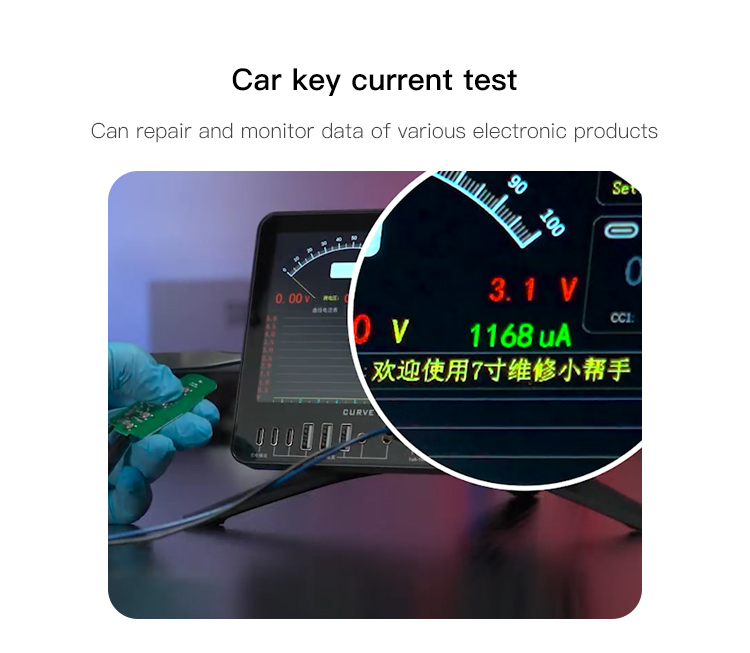

Broad Application: Ideal for repairing and monitoring data from a wide variety of electronic products, from car keys to motherboards.

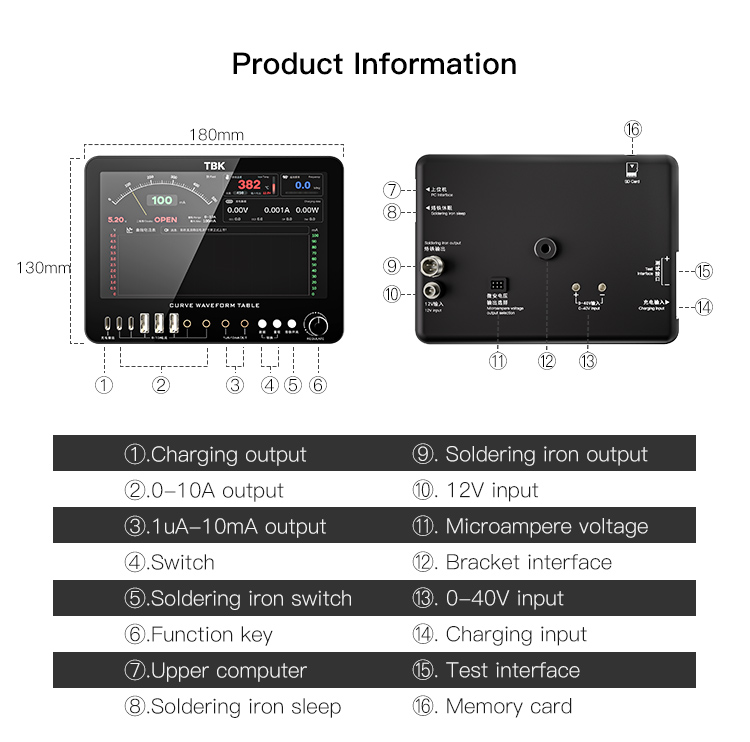

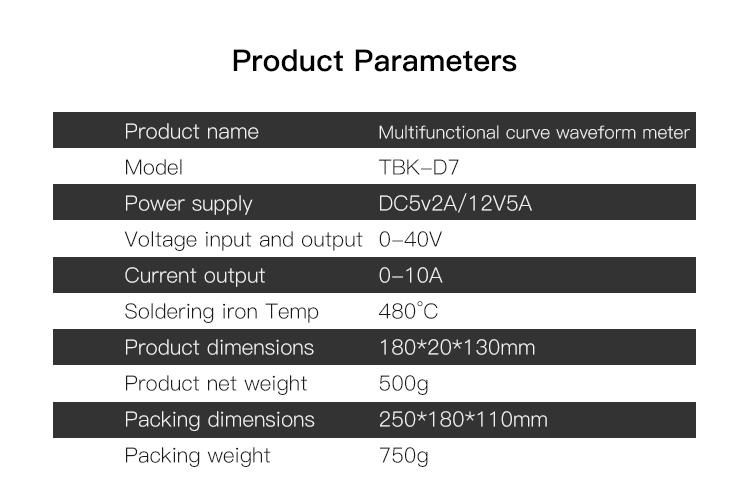

Model: TBK-D7

Power Supply: DC 5V/2A or 12V/5A

Voltage Input and Output: 0–40V

Current Output: 0–10A

Soldering Iron Temperature: 480°C

Product Dimensions: 180mm x 130mm x 20mm

Product Net Weight: 500g

Packing Dimensions: 250mm x 180mm x 110mm

Packing Weight: 750g

With Soldering Iron Packing Weight: 1Kg
