TBK 983A Compact Semi-Automatic Glue Dispenser with Built-in Quiet Compressor. Meet the TBK-983A, the all-in-one Semi-Automatic Glue Dispenser designed for precision and convenience at your workbench. Its biggest advantage is the built-in, ultra-quiet a

Product Code: TBK 983A Glue Dispenser
Availability: In Stock

189.00$

Description
Reviews (0)

TBK 983A Compact Semi-Automatic Glue Dispenser with Built-in Quiet Compressor.

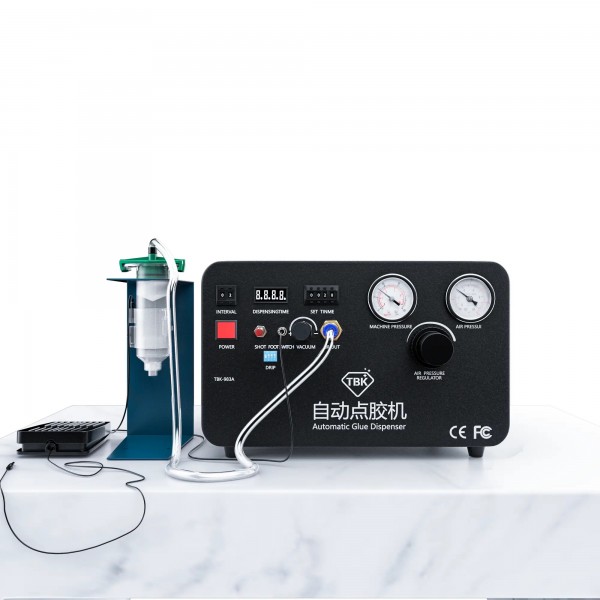

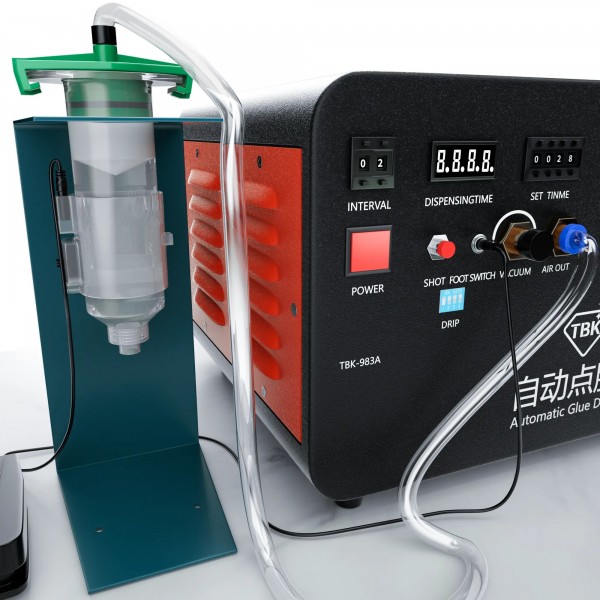

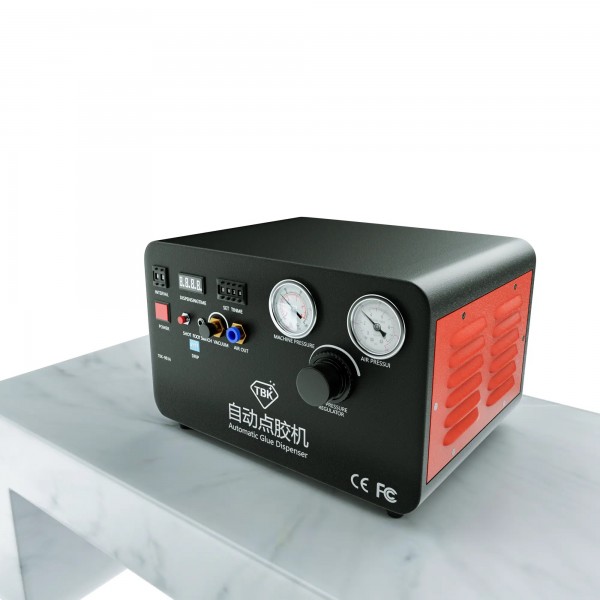

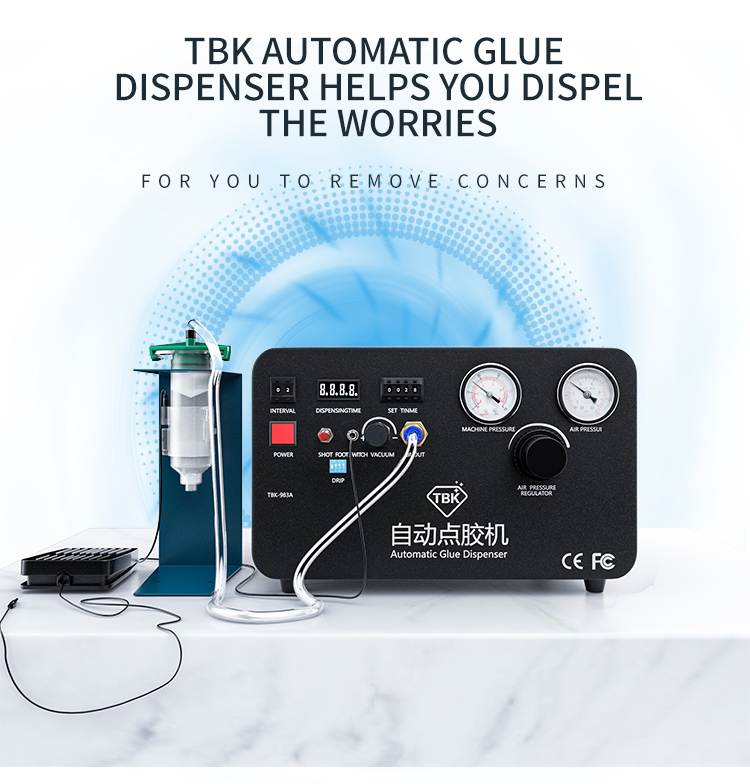

Meet the TBK-983A, the all-in-one Semi-Automatic Glue Dispenser designed for precision and convenience at your workbench. Its biggest advantage is the built-in, ultra-quiet air compressor, eliminating the need for a separate, noisy external unit.

This machine is designed for consistency. It solves common manual gluing problems (like uneven amounts and waste) by delivering a precise, timed dose of glue every time you press the foot pedal. It gives you operator-controlled precision—you guide the work, and it handles the perfect dispense.

It's the ideal compact solution for electronics assembly, mobile phone repair, and any task needing repeatable, clean glue application.

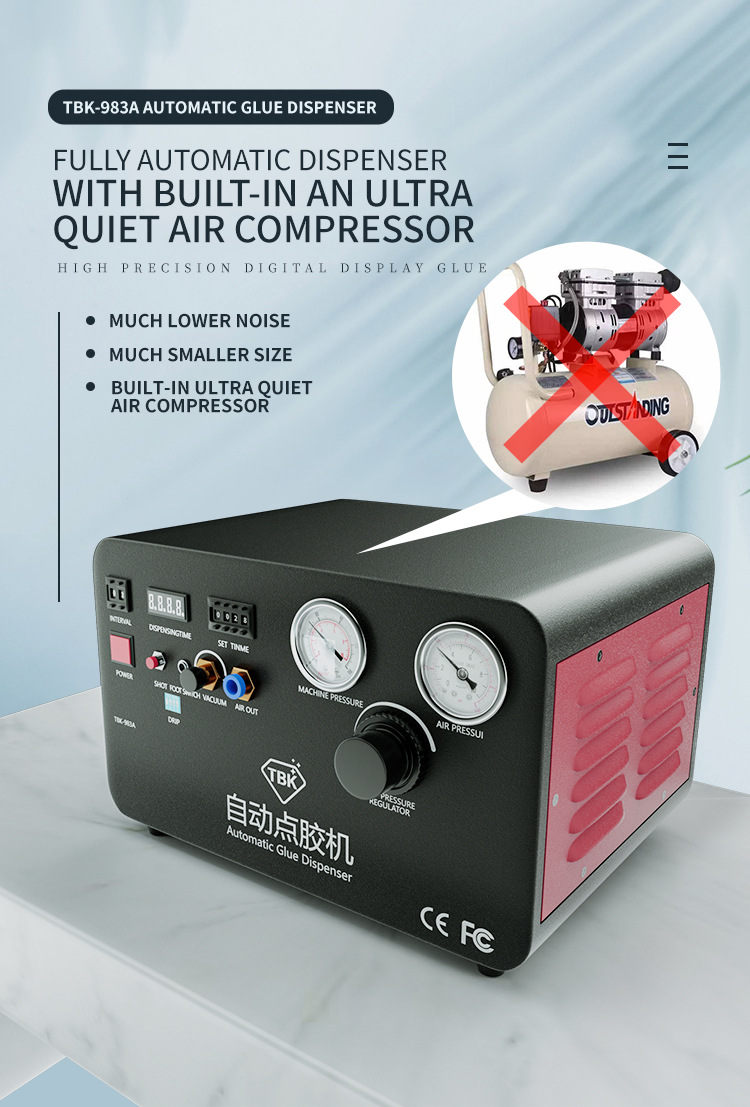

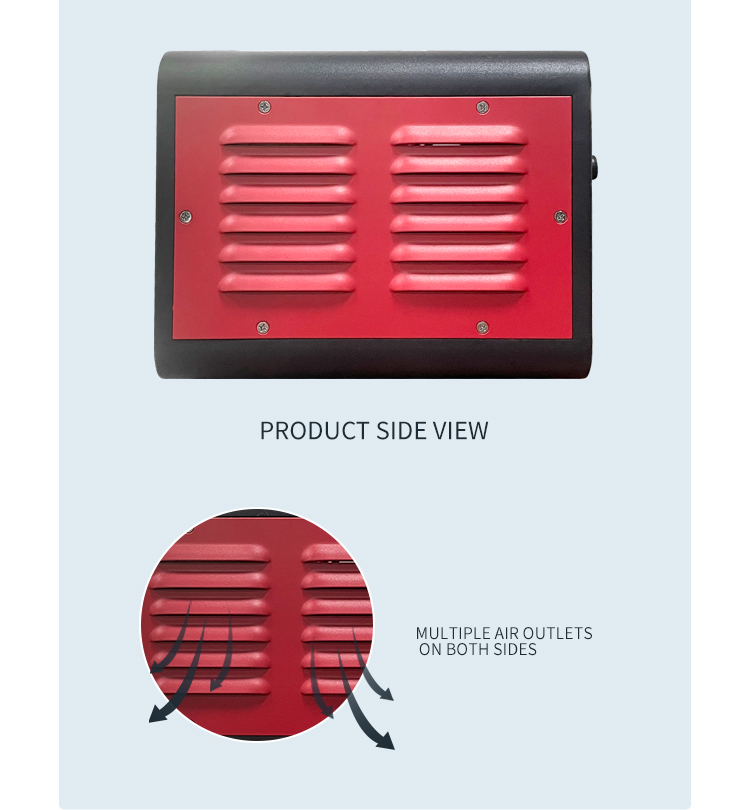

Built-in Ultra-Quiet Air Compressor: The all-in-one design saves space and maintains a quiet workspace. No external air source is needed.

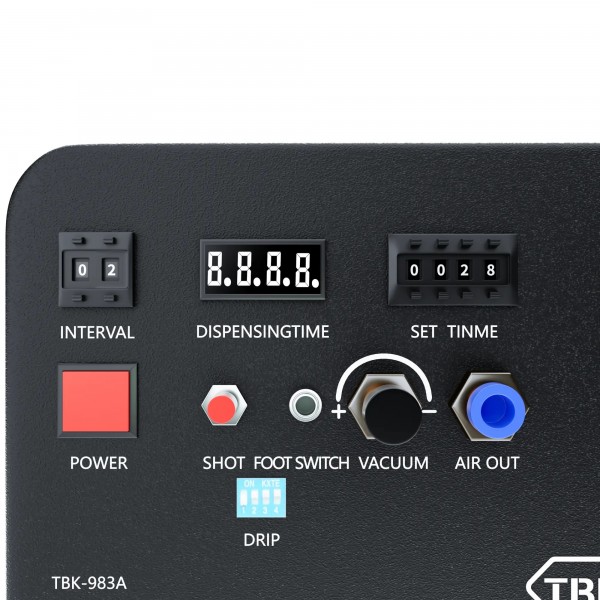

Precise Digital Timing: Set exact dispensing times (0.01-99.99S) and interval times (0.1-9.9S) for perfectly consistent dots and lines.

Dual Operation Modes:

Semi-Automatic (Pedal): Delivers one precisely timed shot every time you press the foot pedal.

Manual (Pedal/Switch): Dispenses for as long as you hold down the pedal or the manual "SHOT" button.

Anti-Drip Vacuum Function: A "suck-back" feature pulls glue back from the needle tip after each dispense, preventing unwanted drips and stringing.

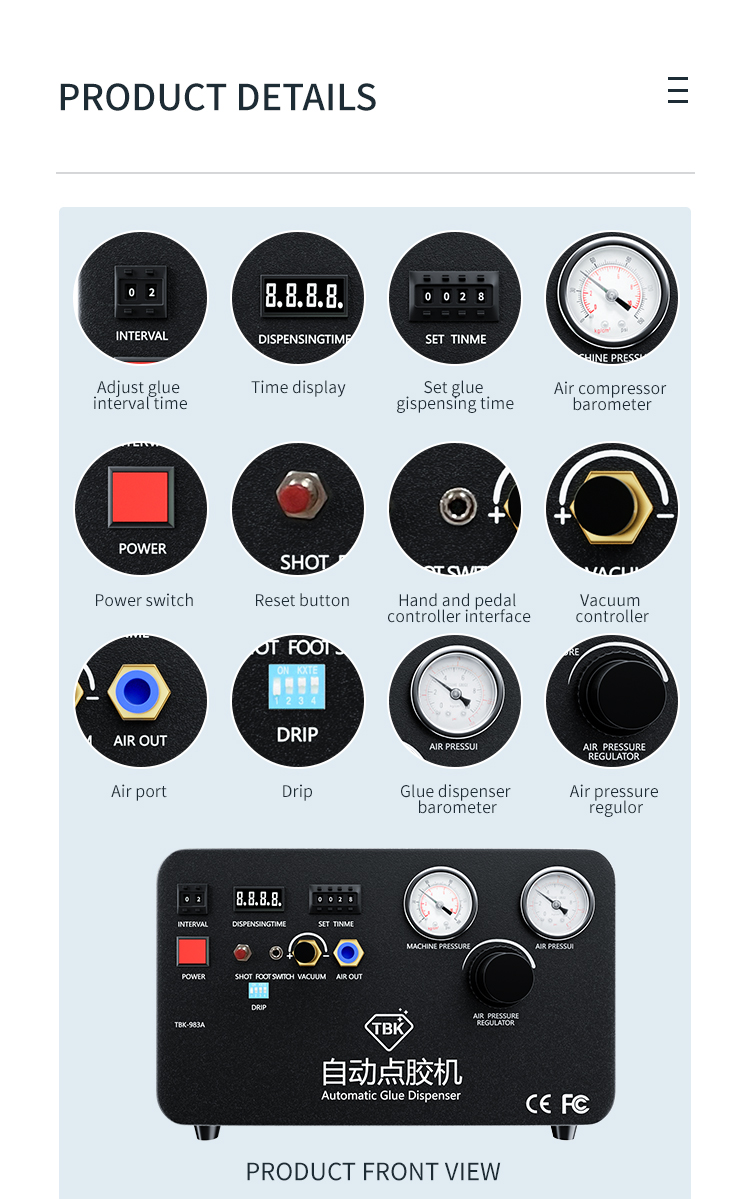

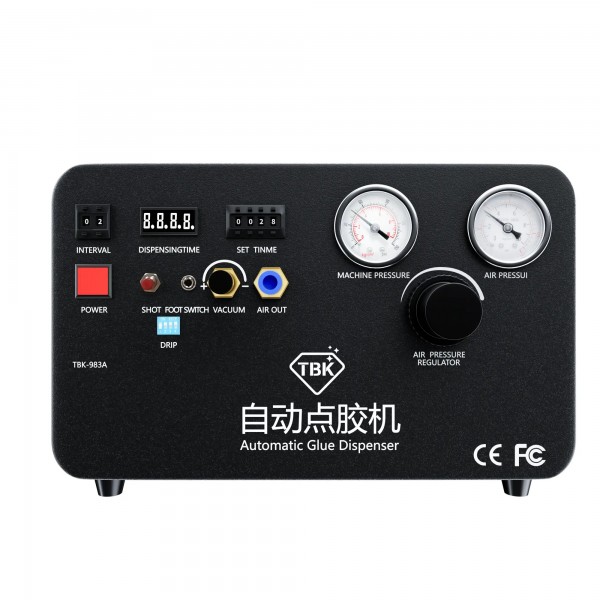

Precision Pressure Control: A manual regulator and two clear barometers (Machine Pressure & Air Pressure) let you fine-tune the force for any glue viscosity.

Wide Glue Compatibility: Works with most air-dispensable glues, including UV-LOCA, T-8000, silicone, bracket glues, and more.

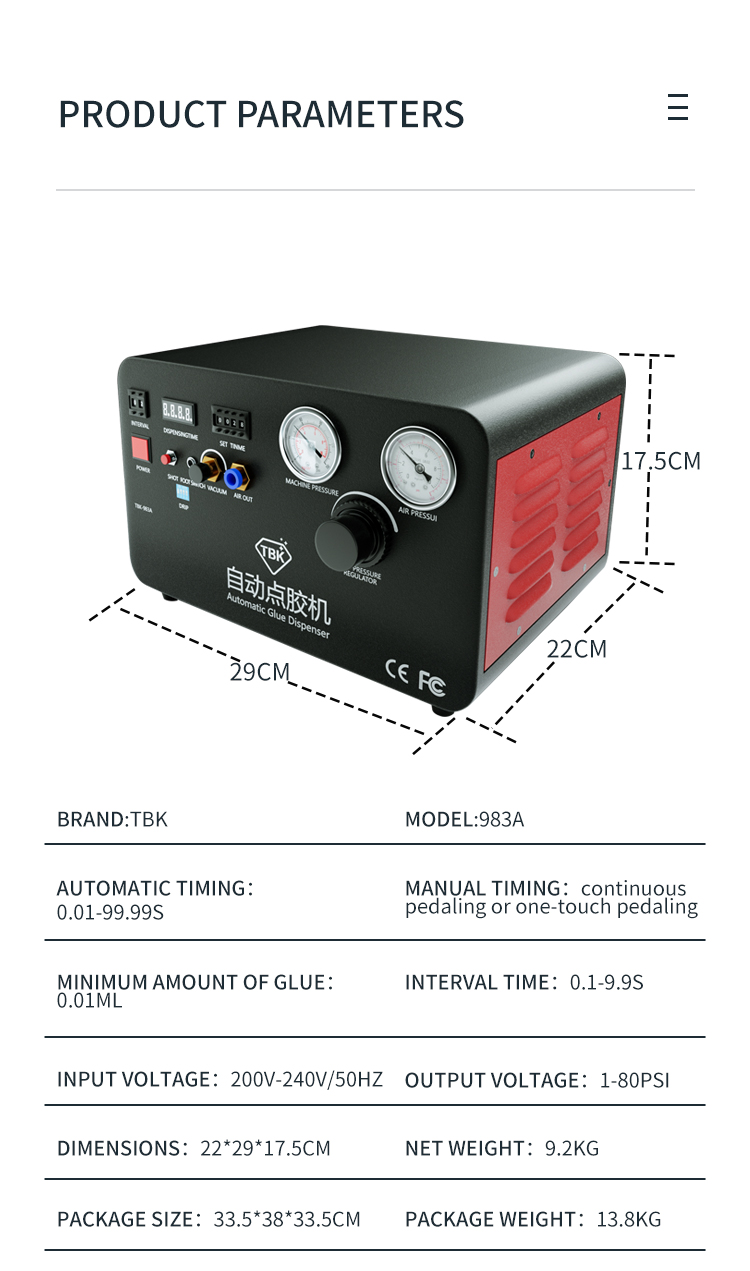

Model: TBK-983A

Input Voltage: 200V-240V / 50Hz

Output Pressure: 1-80 PSI

Automatic Timing: 0.01 - 99.99 seconds

Interval Time: 0.1 - 9.9 seconds

Minimum Dispense: 0.01 ML

Dimensions: 22 x 29 x 17.5 cm

Net Weight: 9.2 kg

Package Weight: 13.8 kg
