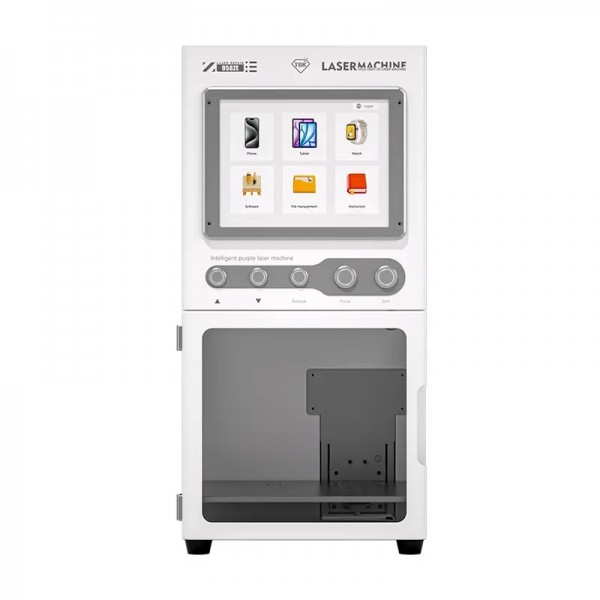

TBK 958ZE Affordable UV Phone Laser Machine for Phone Back Glass Removal | Screen Repair & DIY Marking

  • Product Code: TBK 958ZE UV Phone Laser Machine
  • Availability: In Stock
  • 2 590.00$


TBK 958ZE Affordable UV Phone Laser Machine for Phone Back Glass Removal | Screen Repair & DIY Marking.

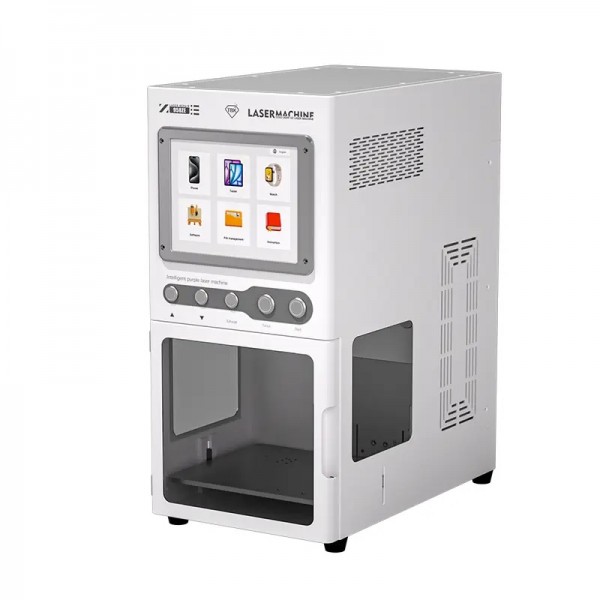

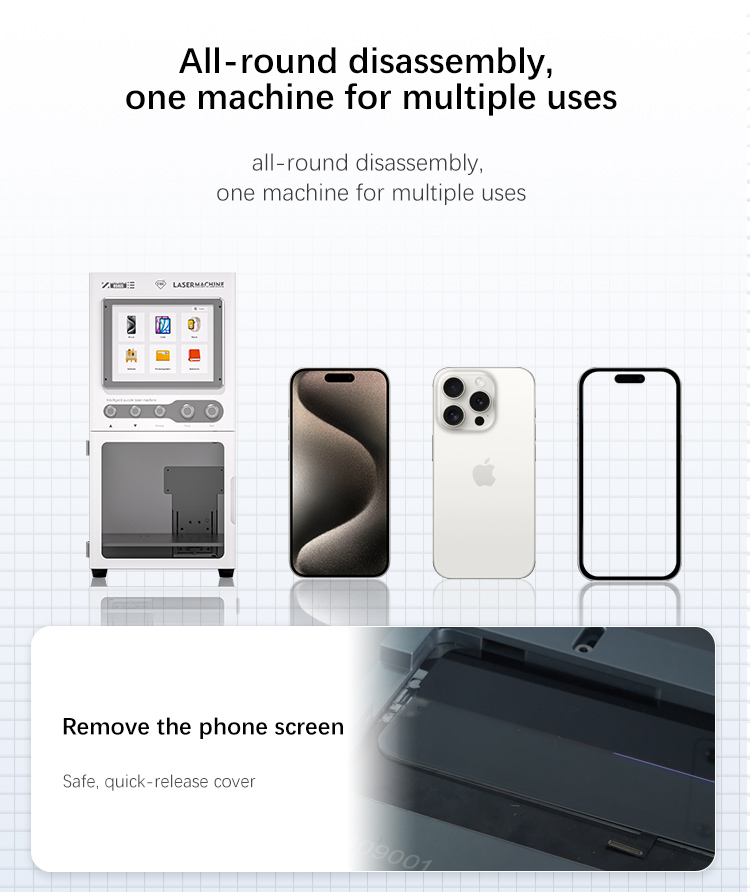

The TBK-958ZE is a compact and lightweight UV laser machine designed for maximum efficiency and versatility. Its lightweight design makes it perfect for any workspace and significantly reduces international shipping costs. This machine is an ideal all-in-one solution for phone repair, capable of safely separating broken LCD screens (including curved screens) in just 2 minutes, removing back glass in 4-8 minutes, and separating brackets. Beyond repairs, it excels at marking and engraving a wide variety of materials, including metal, plastic, and glass. User-friendly features like a built-in drawing library, autofocus, and an integrated fume extractor ensure a simple, safe, and clean workflow.

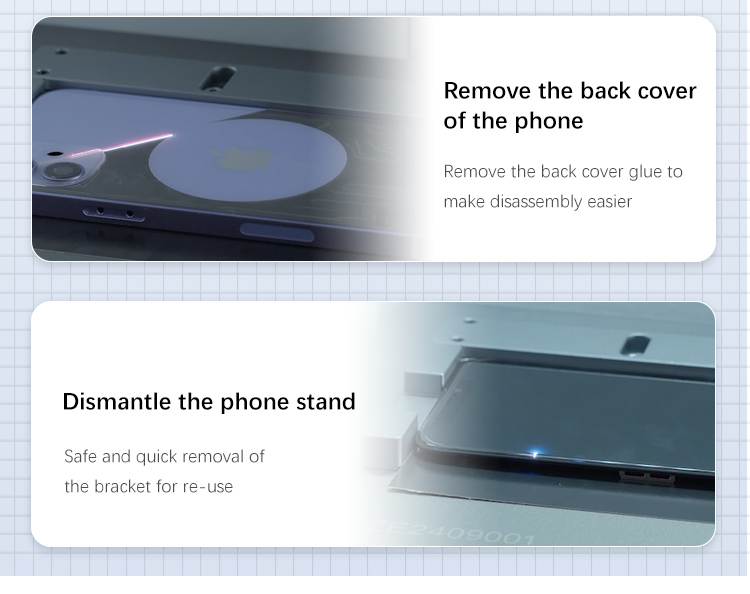

High-Speed Phone Repair: Drastically reduce repair time by removing a phone's back glass in 4-8 minutes. It allows for the safe separation of broken LCD screens (including curved screens) in just 2 minutes.

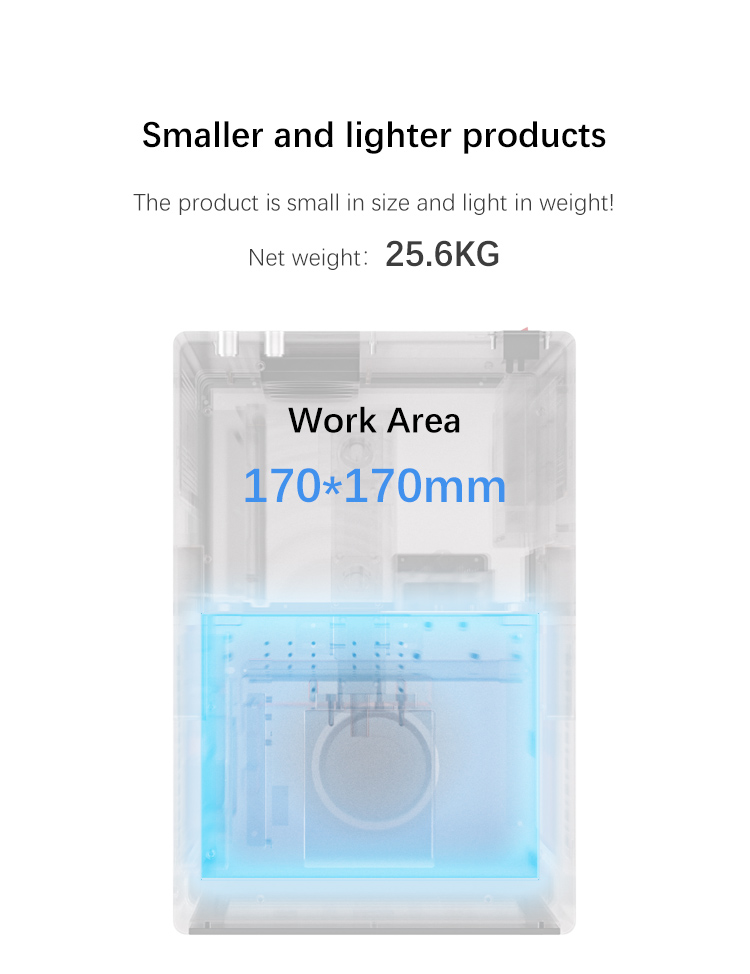

Compact & Lightweight: With a small footprint (240 * 400 * 500mm) and a low net weight of only 25.6 kg, this machine is easy to place and significantly reduces international shipping costs.

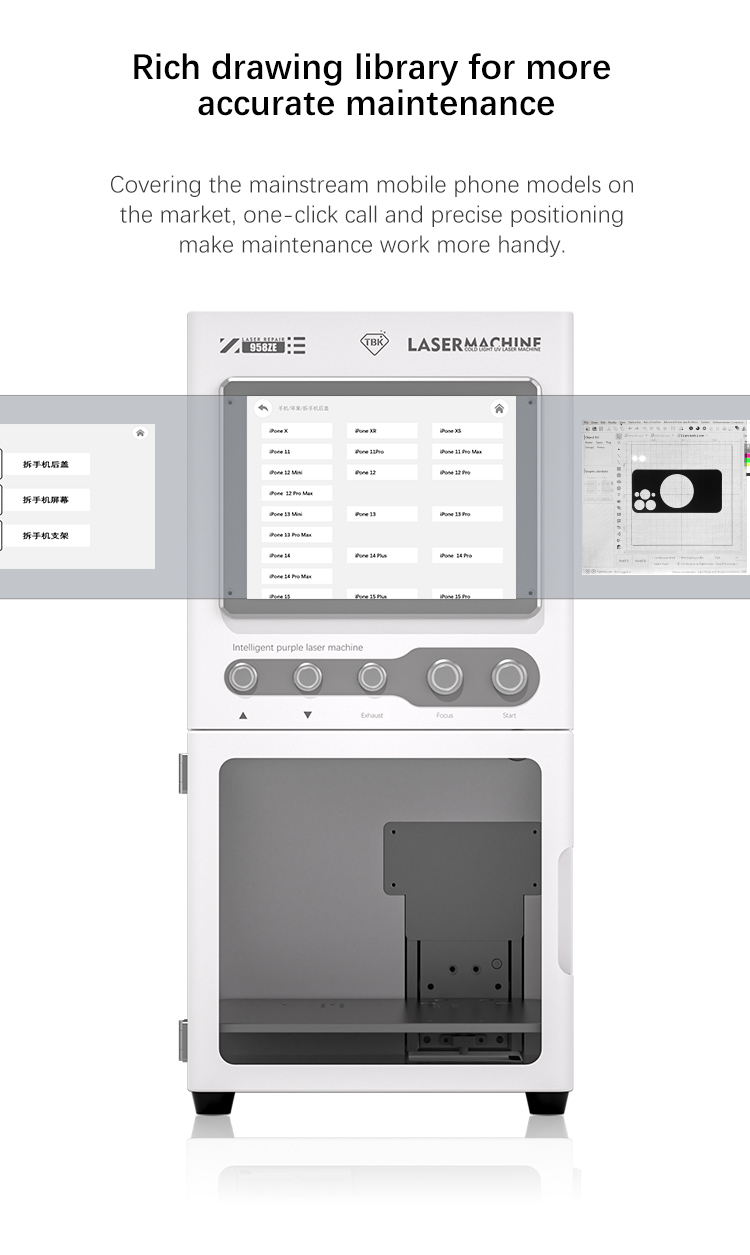

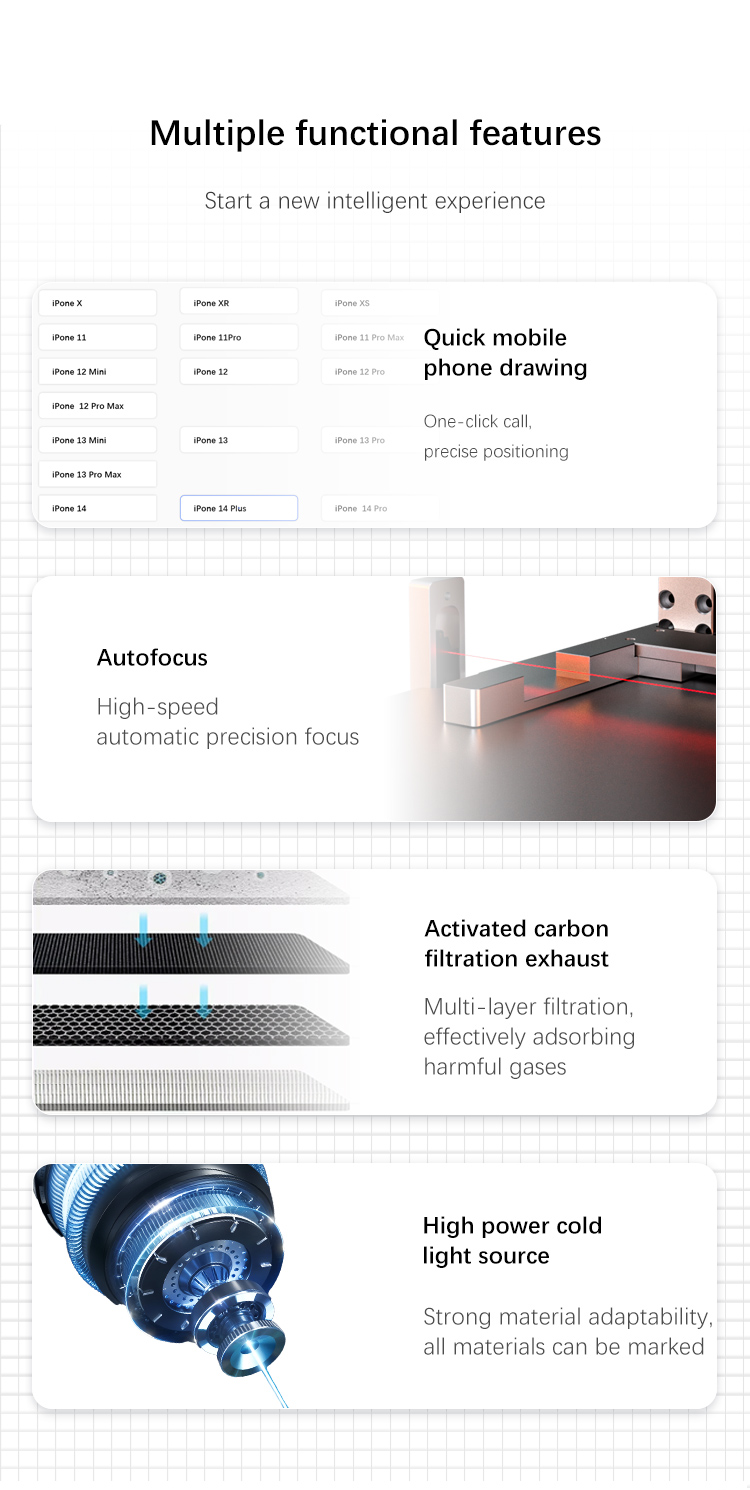

Rich Drawing Library: The built-in system comes pre-loaded with drawings for mainstream mobile phone models, ensuring precise and easy operation.
Autofocus System: Features high-speed automatic precision focus for quick setup and accurate results.
Wide Material Application: Capable of marking and engraving on materials such as metal, plastic, glass, silicone, ceramics, and more.
Bendable Platform: The adjustable platform design allows for the effective separation of curved phone screens.

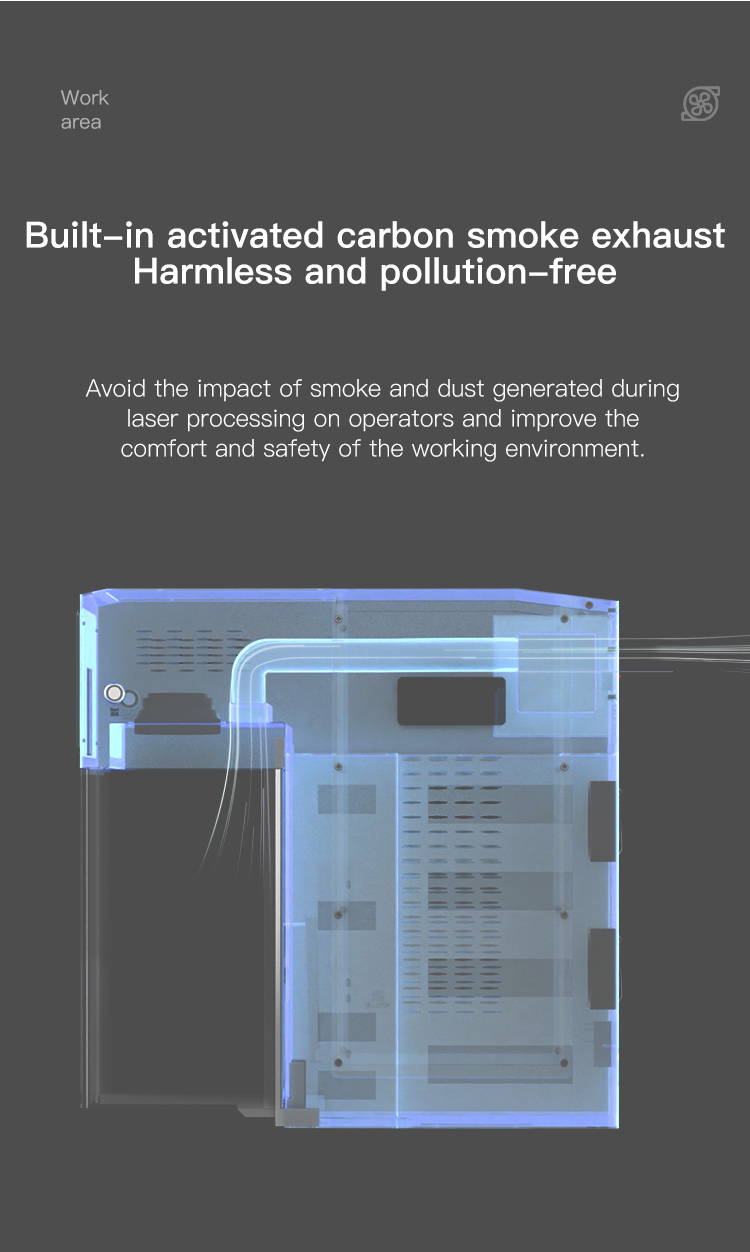

Built-in Fume Extractor: An integrated activated carbon filtration system absorbs smoke and dust, ensuring a safer and cleaner work environment.

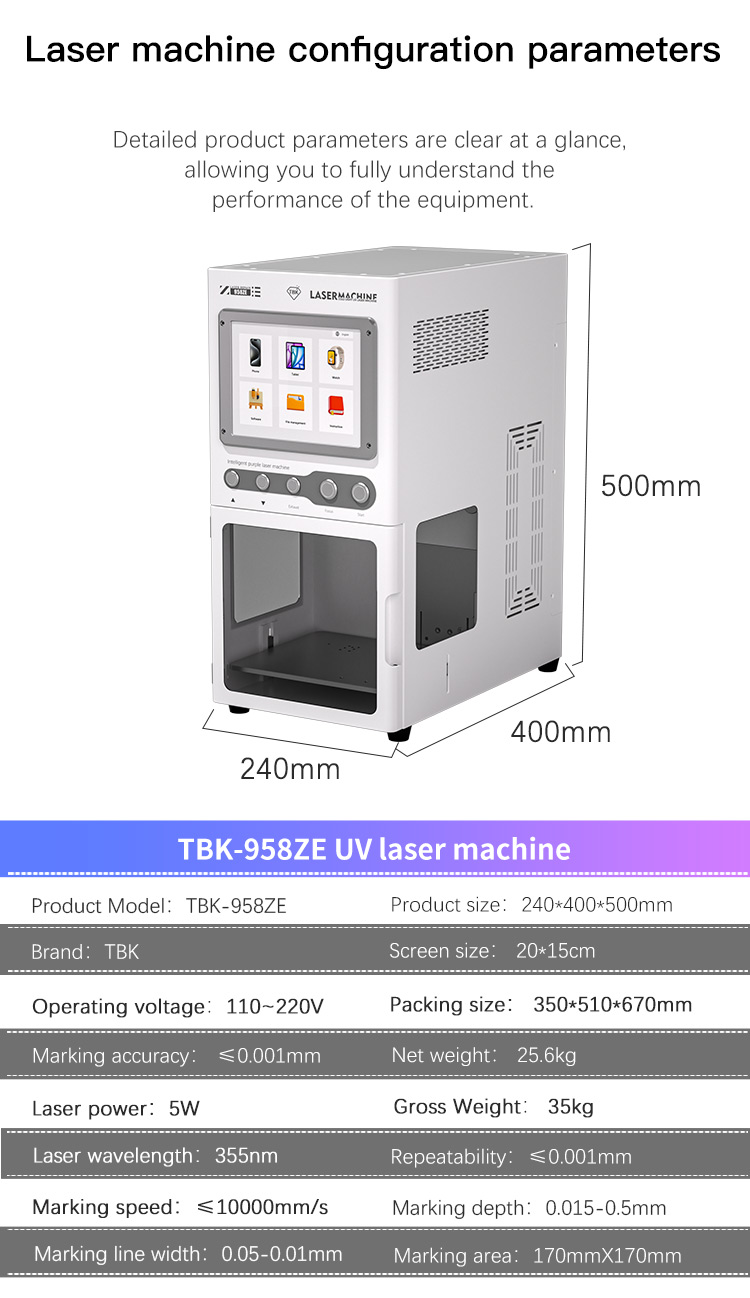

Product Model: TBK-958ZE
Brand: TBK
Operating Voltage: 110-220V
Laser Power: 5W
Laser Wavelength: 355nm
Marking Area: 170mm x 170mm
Marking Speed: ≤10000mm/s
Marking Line Width: 0.05-0.01mm
Marking Depth: 0.015-0.5mm
Marking Accuracy: ≤0.001mm
Repeatability: ≤0.001mm
Screen Size: 20cm x 15cm
Product Size: 240mm x 400mm x 500mm
Net Weight: 25.6 kg
Gross Weight: 35 kg
Packing Size: 350mm x 510mm x 670mm
