TBK 905 UV Curing Box, 200W High-Power Lamp with Large 400x320mm Area for Professional Factory Phone Screen Repair & OCA Curing. The TBK 905 is a UV curing box designed for high-volume repair facilities and factory production lines. It operates at 2

Product Code: TBK 905 UV Curing Box
Availability: In Stock

231.00$

Description
Reviews (0)

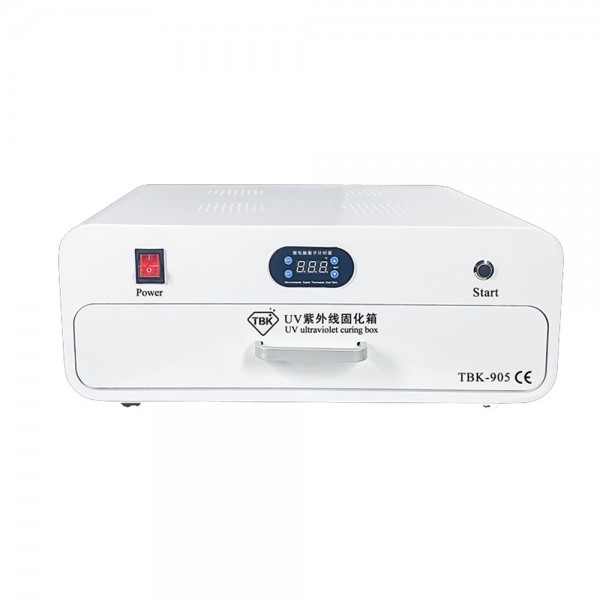

TBK 905 UV Curing Box, 200W High-Power Lamp with Large 400x320mm Area for Professional Factory Phone Screen Repair & OCA Curing.

The TBK 905 is a UV curing box designed for high-volume repair facilities and factory production lines. It operates at 200W, utilizing built-in 365nm light beads to provide consistent curing for OCA glue and other UV adhesives.

The key feature of this model is its spacious 400 x 320mm internal work area, which is engineered to accommodate multiple mobile phones simultaneously. This allows for efficient batch processing, significantly improving workflow for large-scale repair operations. A dual cooling system is integrated to maintain stable operating temperatures during extended use. The unit features a digital timer for precise control and a one-key start function.

200W High-Power Output: Utilizes imported 365nm lamp beads for thorough curing of UV adhesives.

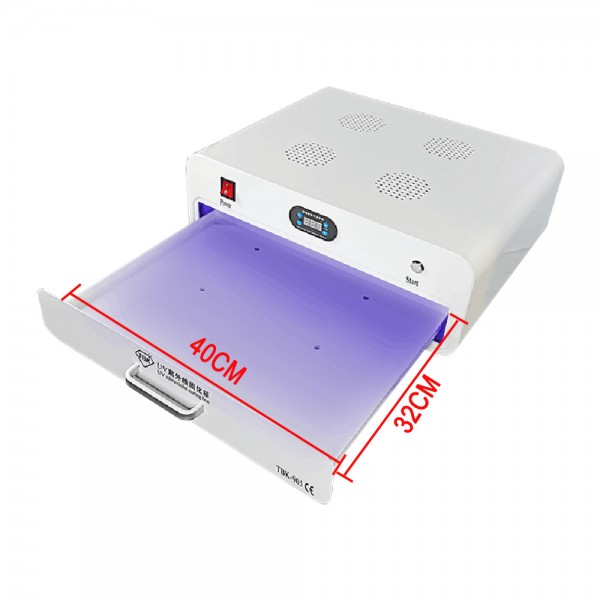

Large 400x320mm Work Area: Suited for factory settings and batch processing, allowing multiple devices to be cured at once.

Dual Cooling System: Equipped with two fans to manage heat, supporting stable performance and component longevity during continuous operation.

Precise Digital Timer: Allows for aTccurate setting of curing durations based on specific adhesive requirements.

Simple Operation: Features a one-key start function and a clear digital display for ease of use in a busy environment.

Durable Construction: Built to withstand the demands of a professional workshop.

Model: 905

Power: 200W

Voltage: 110V / 220V

UV Wavelength: 365nm

Cooling Method: Air Cooled

Working Area (Internal): 400 x 320mm

Product Dimensions: 360 x 450 x 195mm

Package Dimensions: 580 x 500 x 330mm

Net Weight: 12.4kg

Gross Weight: 14.8kg
