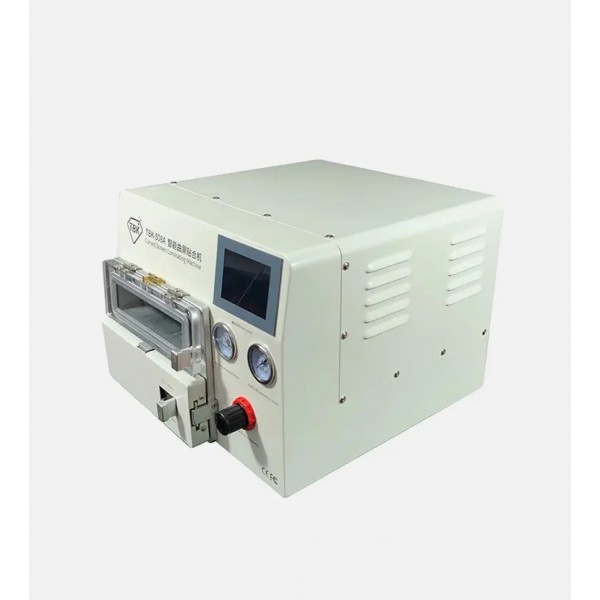

TBK 508A 15 Inch OCA Vacuum Lamination Machine for Curved Screen and iPad Repair

  • Product Code: TBK 508A Vacuum Machine
  • Availability: In Stock
  • 720.00$

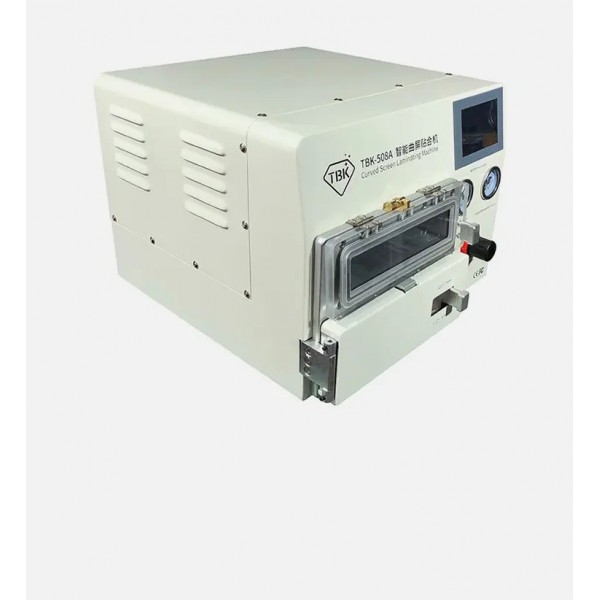

TBK 508A 15 Inch OCA Vacuum Lamination Machine for Curved Screen and iPad Repair.


The TBK-508A is a versatile screen repair tool designed to streamline the refurbishment process for mobile phone shops and factories. As a professional OCA vacuum lamination machine, it combines the functions of lamination and bubble removal into one unit. This allows technicians to repair screens efficiently without needing multiple separate devices.
This machine is engineered to handle a wide variety of devices. It supports straight screens found on many standard smartphones, curved OLED screens common on Samsung Edge models, and flat tablet screens like the iPad. The simplified design ensures that users can easily manage the entire screen laminating process through a smart touch screen interface.

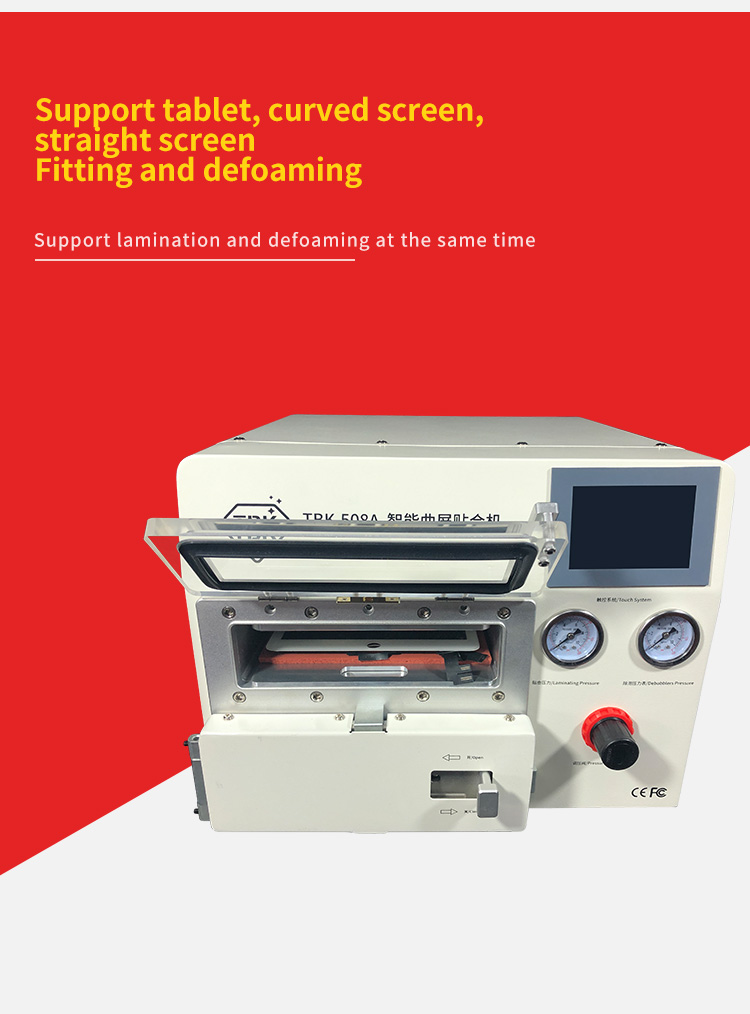

Dual Functionality: The system supports laminating and defoaming simultaneously. This dual-drive capability significantly improves work efficiency by allowing you to process more screens in less time.
Large Working Area: With a spacious 15-inch workspace (190mm x 290mm), this OCA vacuum lamination machine can easily accommodate larger devices, including tablets and iPads, which are often too big for standard repair machines.

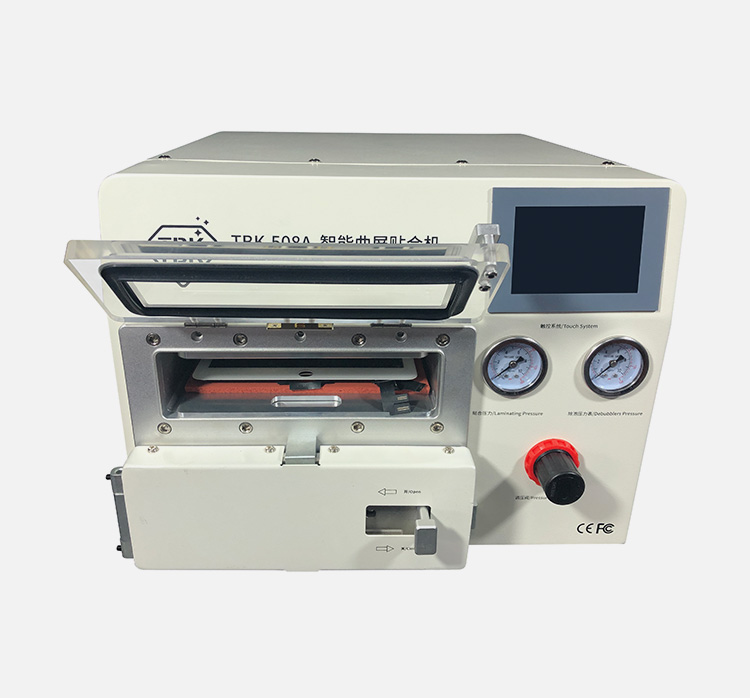

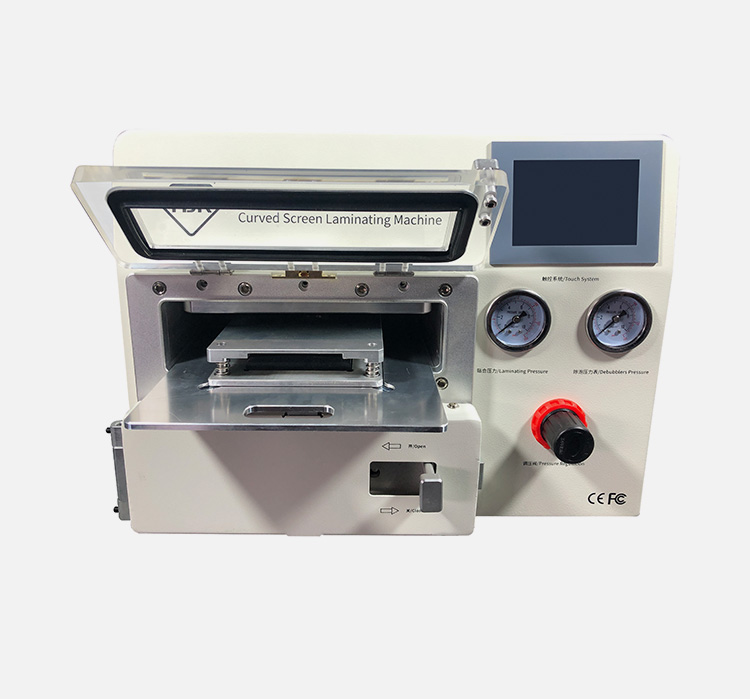

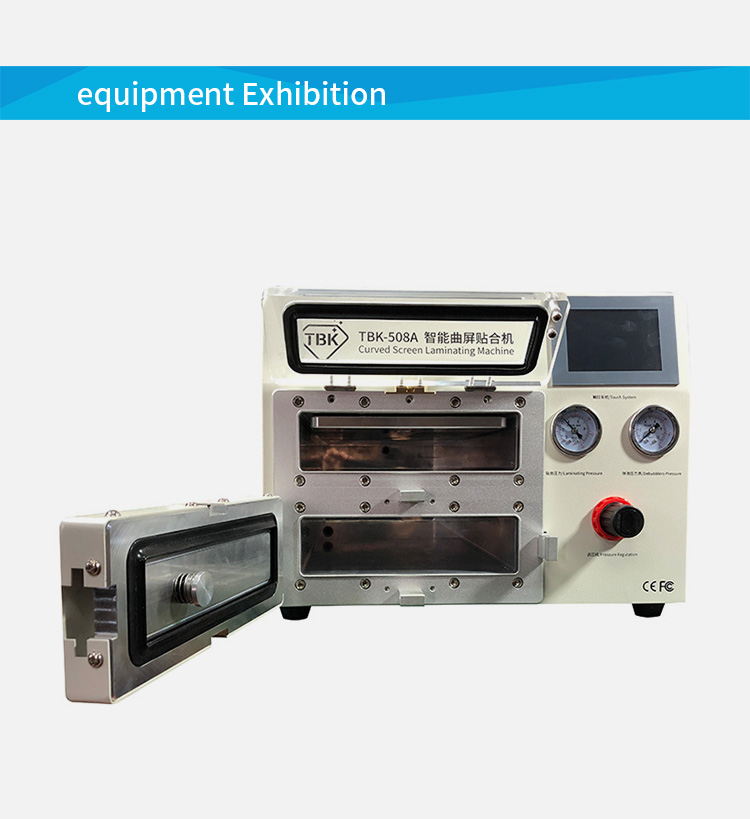

Smart Control System: The unit features a clear touch screen display for digital control, along with dual analog gauges that allow you to monitor lamination pressure and bubble removal pressure in real-time.

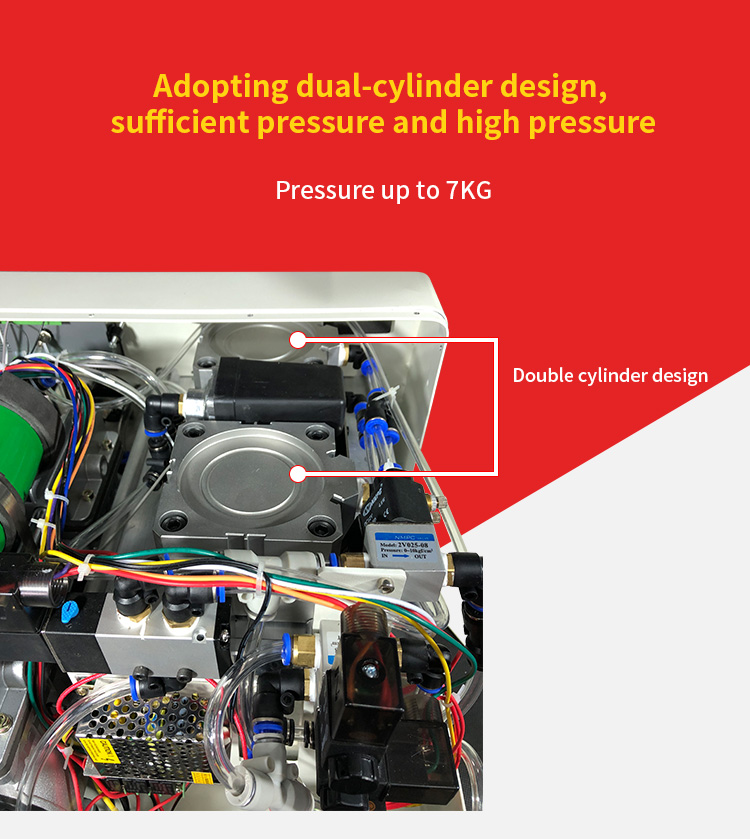

Strong Pressure System: Built with a dual-cylinder design, the machine provides consistent pressure up to 7KG. This ensures a tight fit and effective bubble removal for a factory-grade finish.

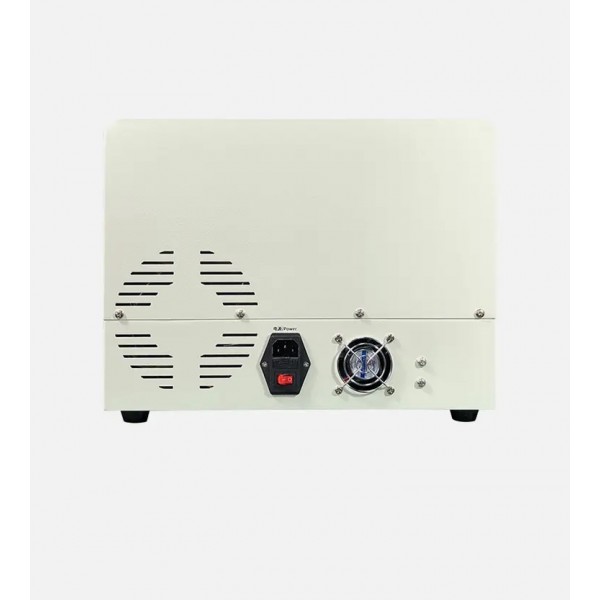

Active Cooling: The back of the unit is equipped with a dedicated cooling fan and ventilation slots. This prevents overheating during long hours of operation, making it reliable for commercial use.

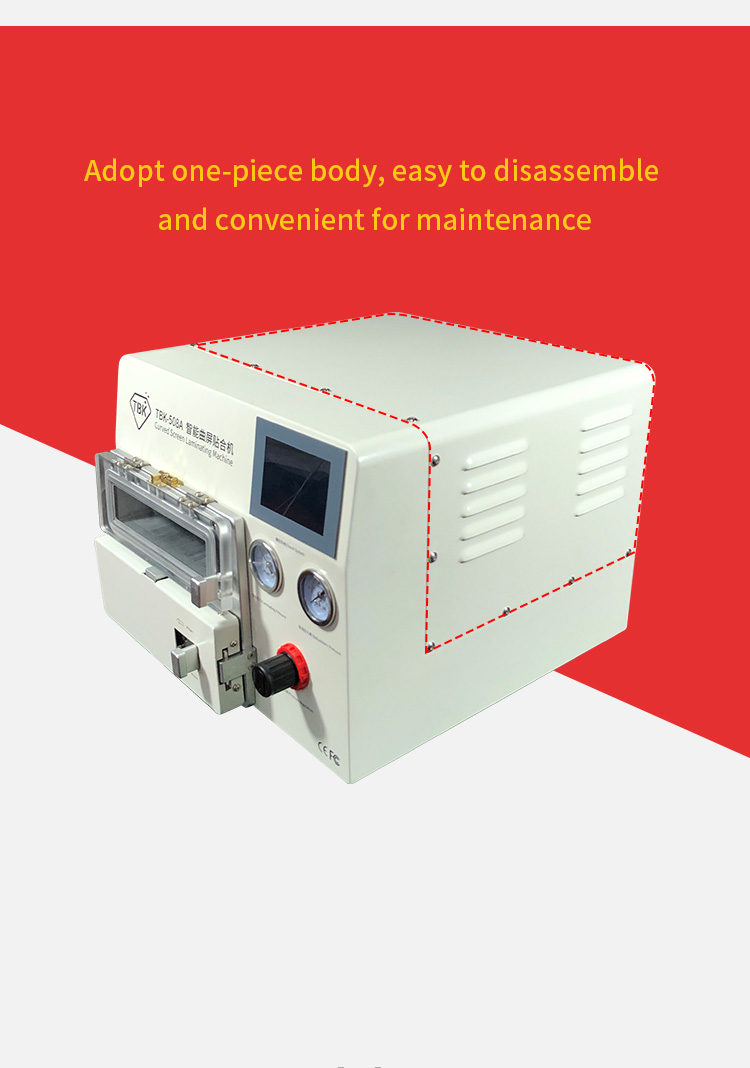

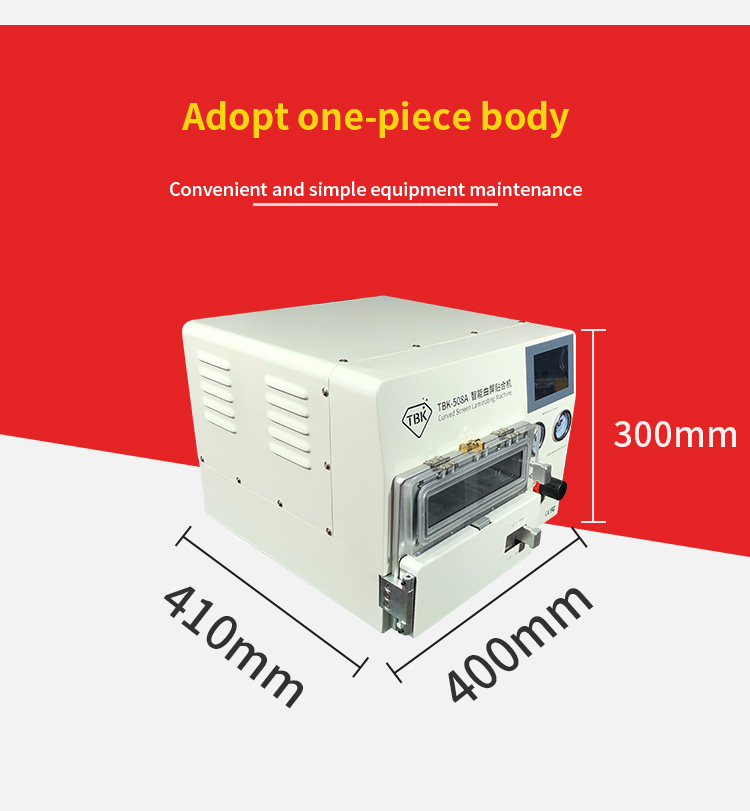

Easy Maintenance: The one-piece metal body is designed for durability but is also easy to disassemble if maintenance or part replacement is required.

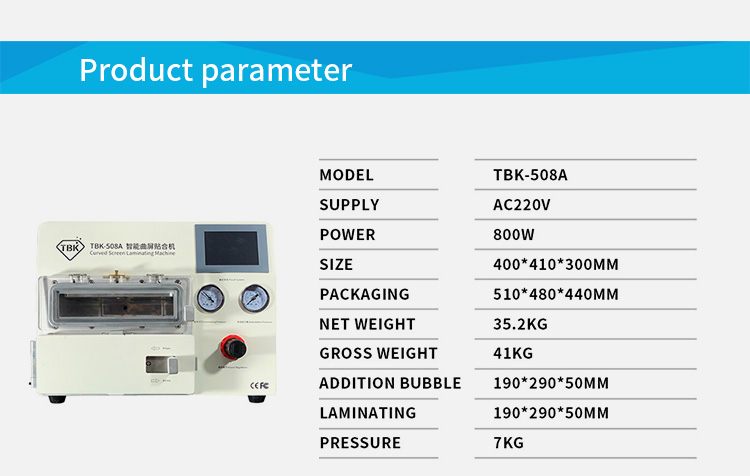

Model: TBK-508A
Supply Voltage: AC220V
Power Rating: 800W
Machine Dimensions: 400mm x 410mm x 300mm
Packaging Dimensions: 510mm x 480mm x 440mm
Net Weight: 35.2KG
Laminating Area Size: 190mm x 290mm x 50mm
Defoaming Area Size: 190mm x 290mm x 50mm
Maximum Pressure: 7KG
