TBK 503 Flex Bonding Machine for LCD & OLED Screen Repair | Fixes No Display, Touch Failure & Black Screen

  • Product Code: TBK 503 Flex Bonding Machine
  • Availability: In Stock
  • 2 300.00$


TBK 503 Flex Bonding Machine for LCD & OLED Screen Repair | Fixes No Display, Touch Failure & Black Screen.

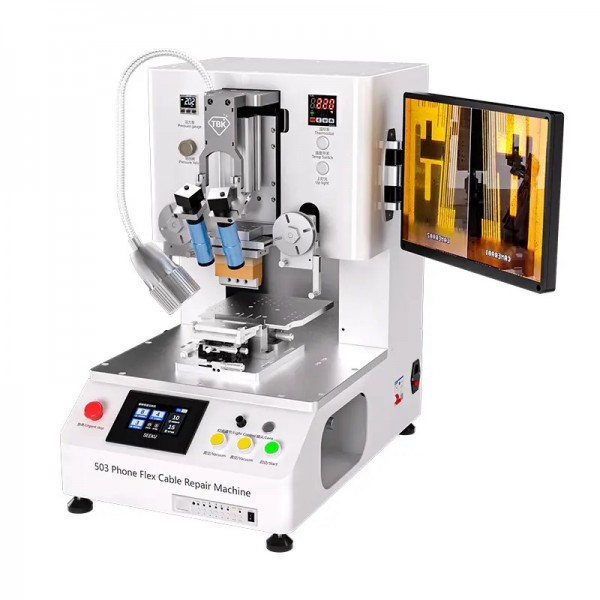

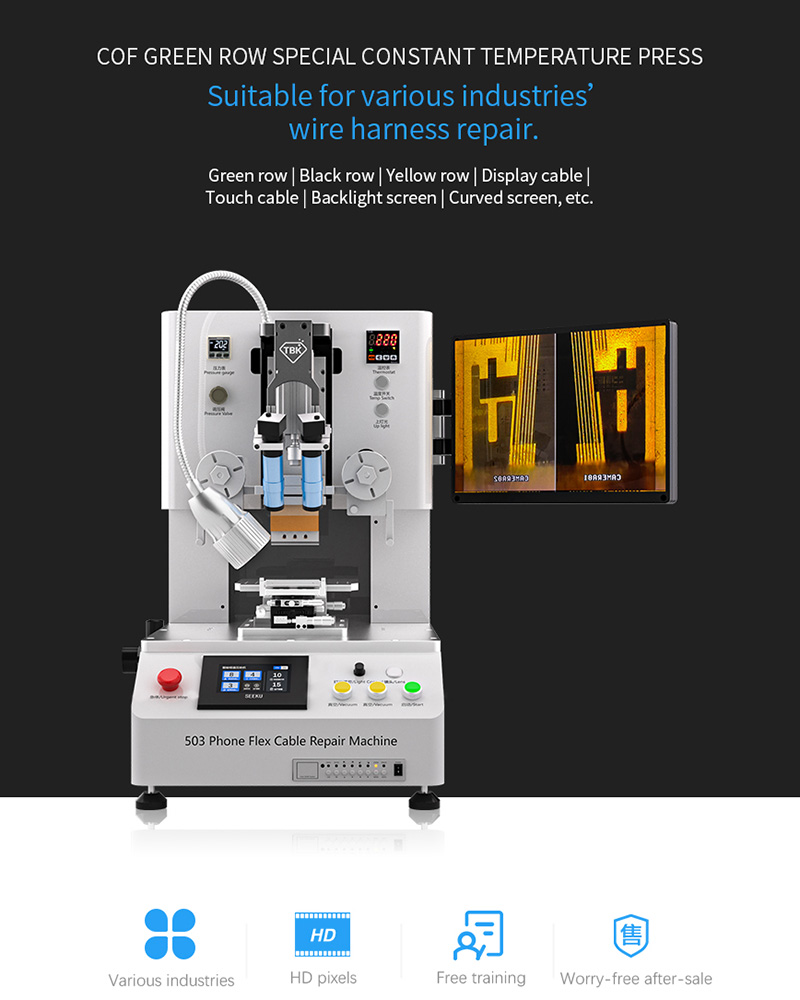

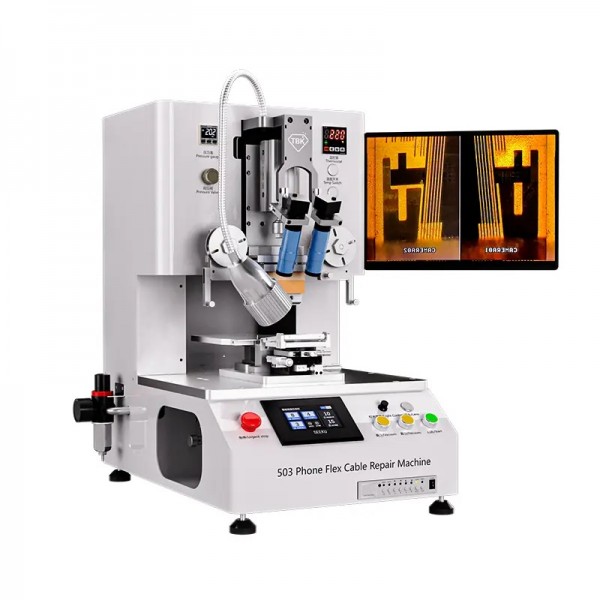

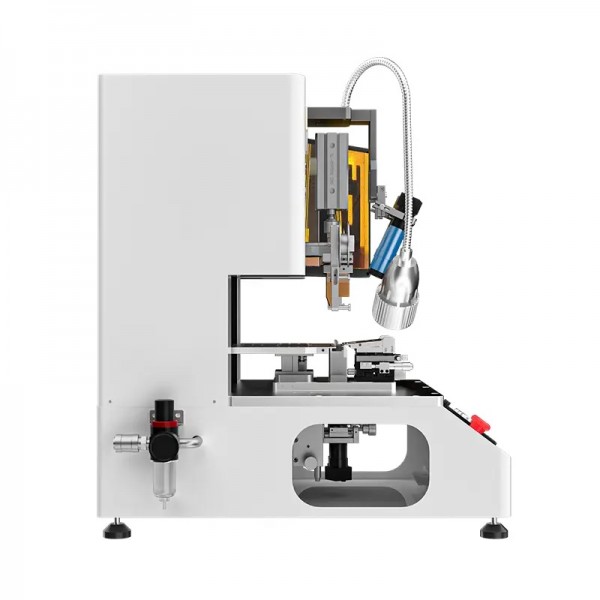

The TBK 503 Phone Flex Cable Repair Machine is a professional-grade unit designed for precise and efficient repair of flex cables on a wide range of electronic devices. It utilizes a constant temperature pressing process to bond and repair screen cables for products like mobile phones, tablets, and projectors. The machine is equipped with a high-definition, four-lens vision system and a micrometer platform for accurate alignment of components. Operations are managed through an intuitive PLC touch screen, which controls the automated heating, pressing, and cooling cycle. Built for versatility, it can handle various screen types, including curved and folding displays, making it a comprehensive solution for common screen malfunctions such as display failure, touch issues, and cable damage.

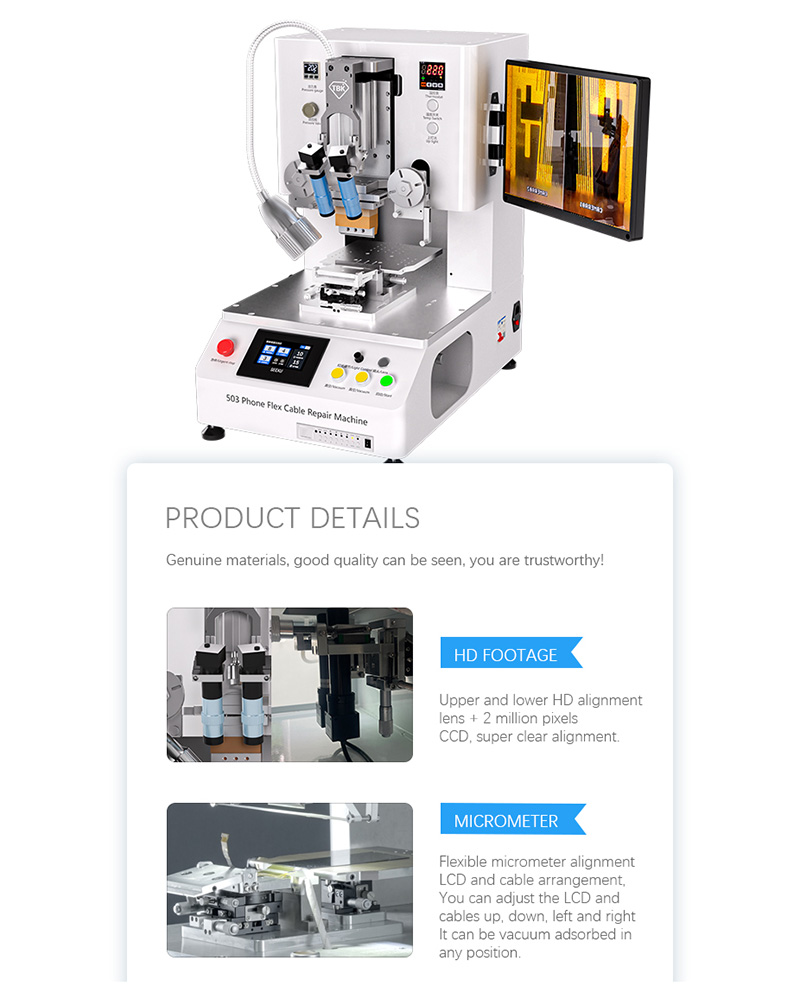

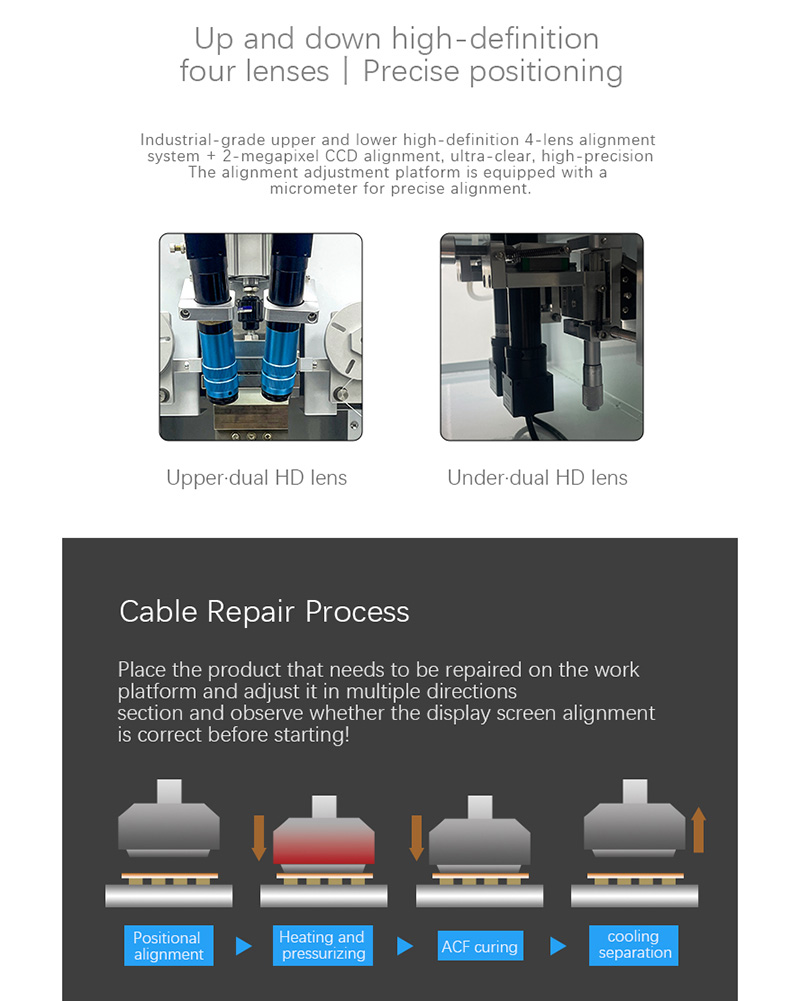

High-Precision Alignment: Features an industrial-grade, up-and-down four-lens system with 2-megapixel CCD cameras for ultra-clear and precise positioning of the flex cable and LCD.
Micrometer Adjustment: The work platform is equipped with a fine-tuning micrometer for precise manual alignment of the LCD and cable in any direction (up, down, left, or right).

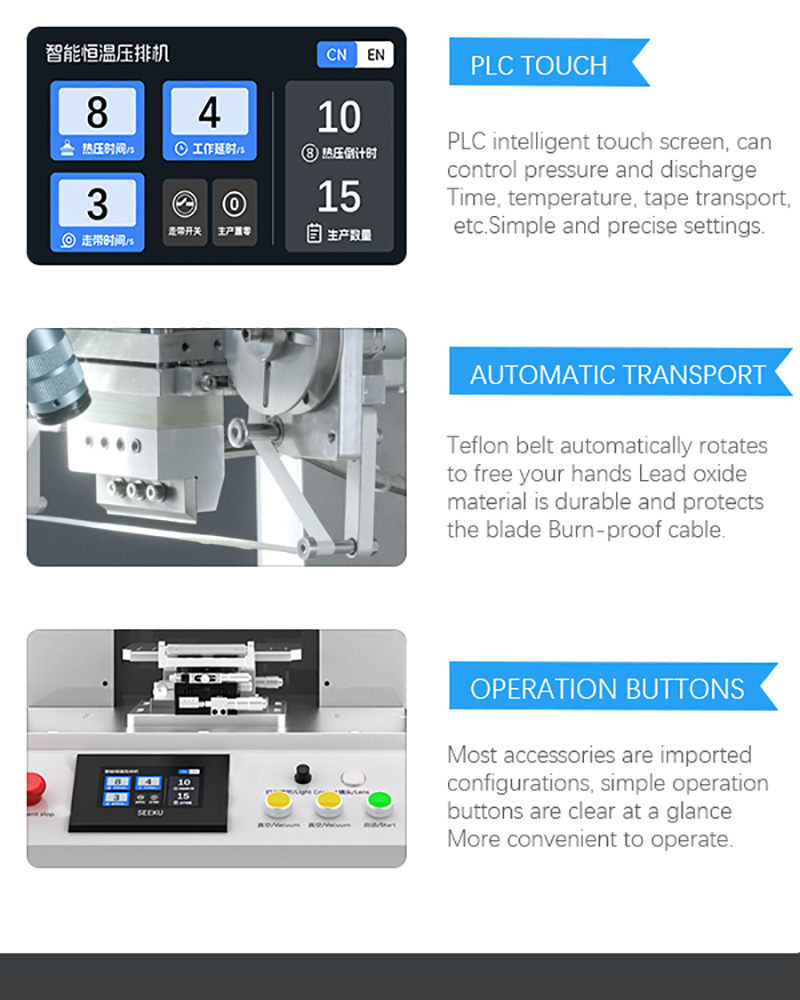

PLC Intelligent Control: An easy-to-use touch screen allows for precise control over temperature, pressure, and timing for a consistent and repeatable repair process.
Broad Compatibility: Suitable for repairing devices with screen sizes from 2.4 to 7.0 inches, including popular brands like Apple, Samsung, Huawei, and more. It can service flat, curved, and folding screens.

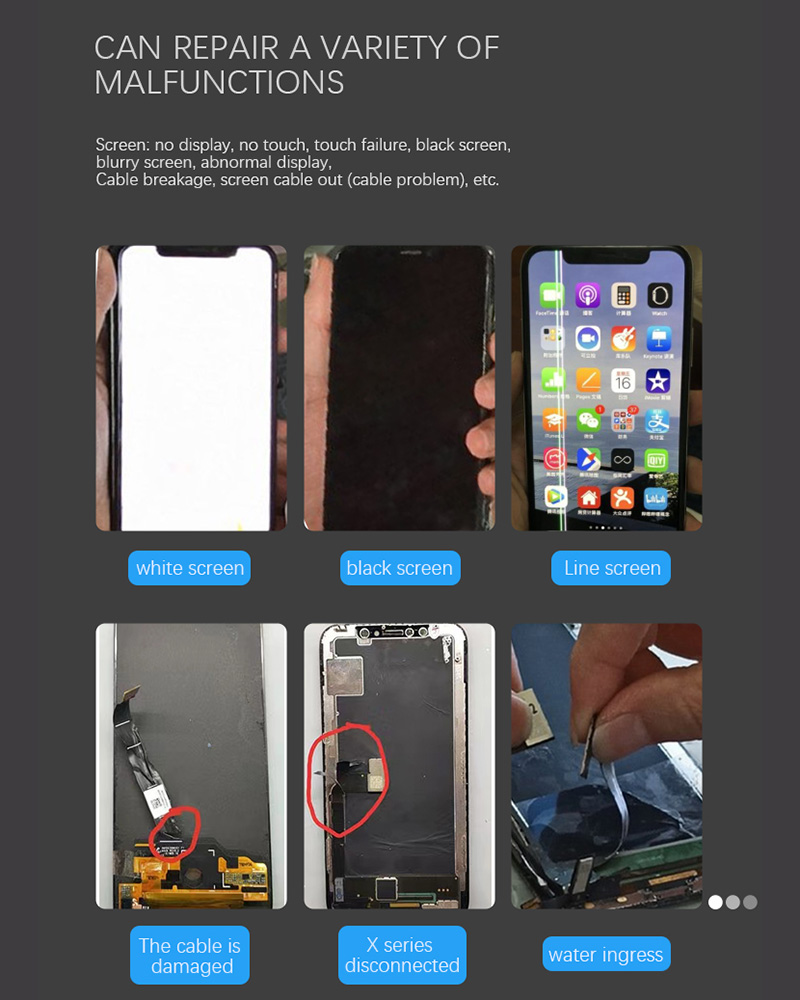

Versatile Repair Capability: Designed to fix a variety of common screen issues, such as black screens, white screens, lines on the screen, touch failures, and problems caused by cable damage.

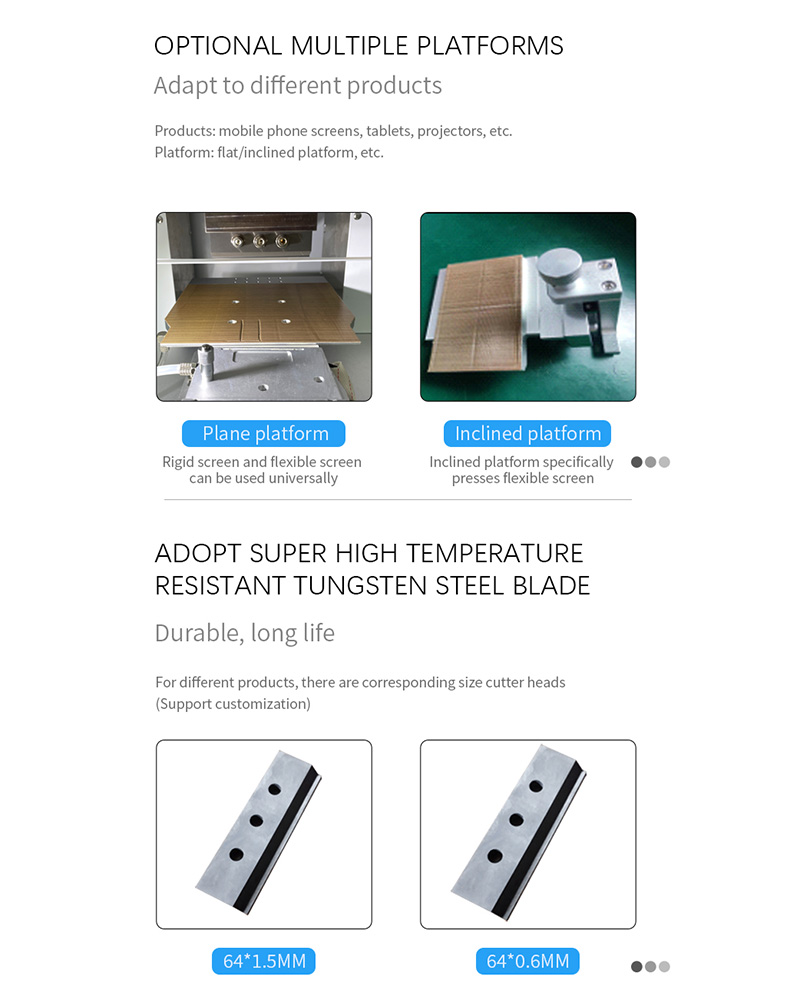

Durable Construction: Utilizes a high-temperature resistant tungsten steel blade for the pressing head to ensure longevity and consistent performance.
Efficient Operation: The machine has a processing efficiency of 10-15 seconds per piece, streamlining the repair workflow.

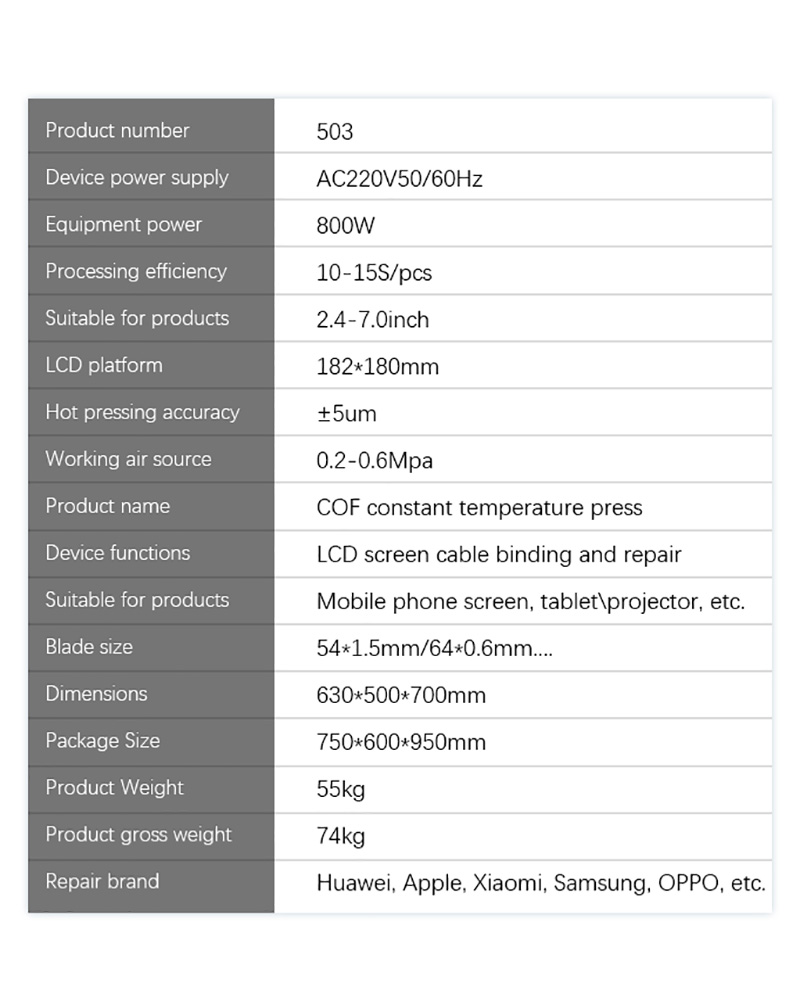

Product Number: 503
Device Power Supply: AC 220V 50/60Hz
Equipment Power: 800W
Processing Efficiency: 10-15 seconds per piece
Suitable for Products (Size): 2.4 - 7.0 inches
LCD Platform Size: 182 x 180mm
Hot Pressing Accuracy: ±5μm
Working Air Source: 0.2 - 0.6Mpa
Product Name: COF Constant Temperature Press
Device Functions: LCD screen cable binding and repair
Suitable for Products (Type): Mobile phone screen, tablet, projector, etc.
Blade Size: 54 x 1.5mm / 64 x 0.6mm...
Dimensions: 630 x 500 x 700mm
Package Size: 750 x 600 x 950mm
Product Weight: 55kg
Product Gross Weight: 74kg
Repair Brand: Huawei, Apple, Xiaomi, Samsung, OPPO, etc
