TBK 308A/UV 15 Inch 3-in-1 OCA Vacuum Lamination Machine for Curved Screens & Tablets

  • Product Code: TBK 308A/UV Vacuum Machine
  • Availability: In Stock
  • 810.00$


TBK 308A/UV 15 Inch 3-in-1 OCA Vacuum Lamination Machine for Curved Screens & Tablets.

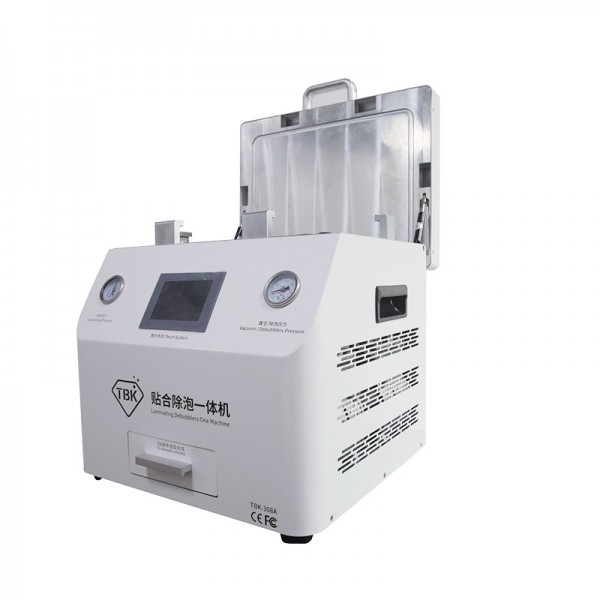

The TBK-308A/UV is a professional OCA Vacuum Lamination Machine designed to simplify the screen repair process. This unit combines two critical functions—laminating and bubble removing—into a single device. It is engineered to handle a wide variety of screen repairs, including curved mobile phone screens, straight screens, and large tablets. With its heavy-duty construction and intelligent operating system, this machine provides a stable and efficient solution for repair shops looking to streamline their refurbishment workflow. With a small UV box, support 7-inch screen curing.

Large Working Capacity The machine features a spacious 15-inch working area measuring 230mm by 325mm. This large capacity allows technicians to repair not just standard smartphones, but also larger devices like iPads and other tablets with ease.
3-in-1 Integrated Design This OCA Vacuum Lamination Machine integrates the lamination and defoaming processes into one chassis. This design saves valuable workspace and reduces the need for multiple pieces of equipment.
With a small UV box, support 7-inch screen curing.
HD Smart Touch Screen Operation is controlled through a high-definition smart touch screen. The digital interface allows for clear visibility and precise adjustment of parameters, making the machine accessible for users of varying experience levels.

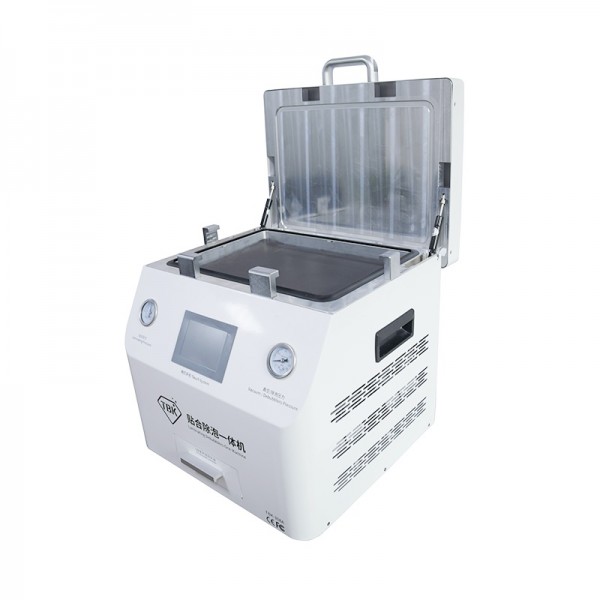

Durable Metal Construction The working warehouse is constructed from all-metal stainless steel. This heavy material provides better sealing during the vacuum process and adds stability to the machine. It is also equipped with an automatic lock-out function to ensure safety during high-pressure operation.

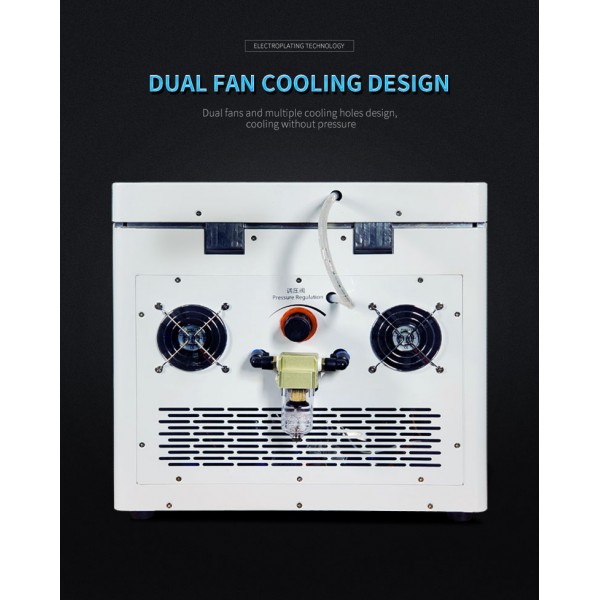

Efficient Cooling System To ensure the machine can run for extended periods without overheating, the back panel features a porous design with dual cooling fans. This setup facilitates rapid heat dissipation and extends the service life of the internal components.

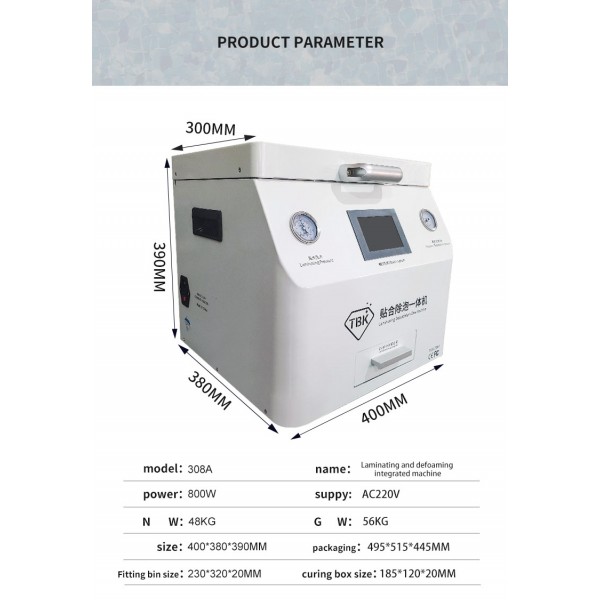

Model: TBK-308A/UV
Voltage: AC220V
Power: 800W
UV bin size: 195*118mm
Product Size: 400mm x 380mm x 370mm
Working Area: 230mm x 325mm x 20mm
Net Weight: 45KG
Package Weight: 50KG

Write a review

Note: HTML is not translated!
  Good     Bad

Recommended

.

Samsung A897 Display

Samsung A897 Display

Original LCD Display for Samsung A897  ..

16.00$

V8-C 1080P Android USB WiFi Mobile HD Dashcam

V8-C 1080P Android USB WiFi Mobile HD Dashcam

V8-C 1080P Single 140º HD USB Android + WiFi Mobile Dash Cam     Configuration: Main control GUOKE+2083  Optional languages: multiple languages  Wiring method: USB  Dual ..

15.50$

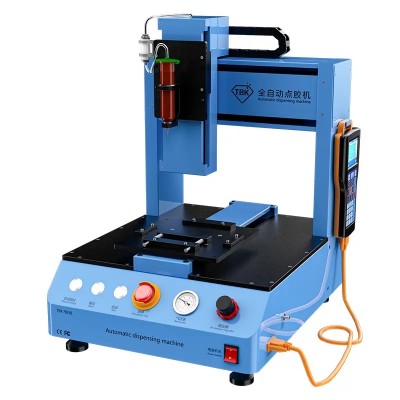

TBK 983B Glue Dispensing Machine
