TBK 218 Adjustable DC Bench Power Supply, 30V 10A with LCD Waveform Display

  • TBK 218 Adjustable DC Bench Power Supply, 30V 10A with LCD Waveform Display
  • Product Code: TBK 218 Power Supply
  • Availability: In Stock
  • 120.75$

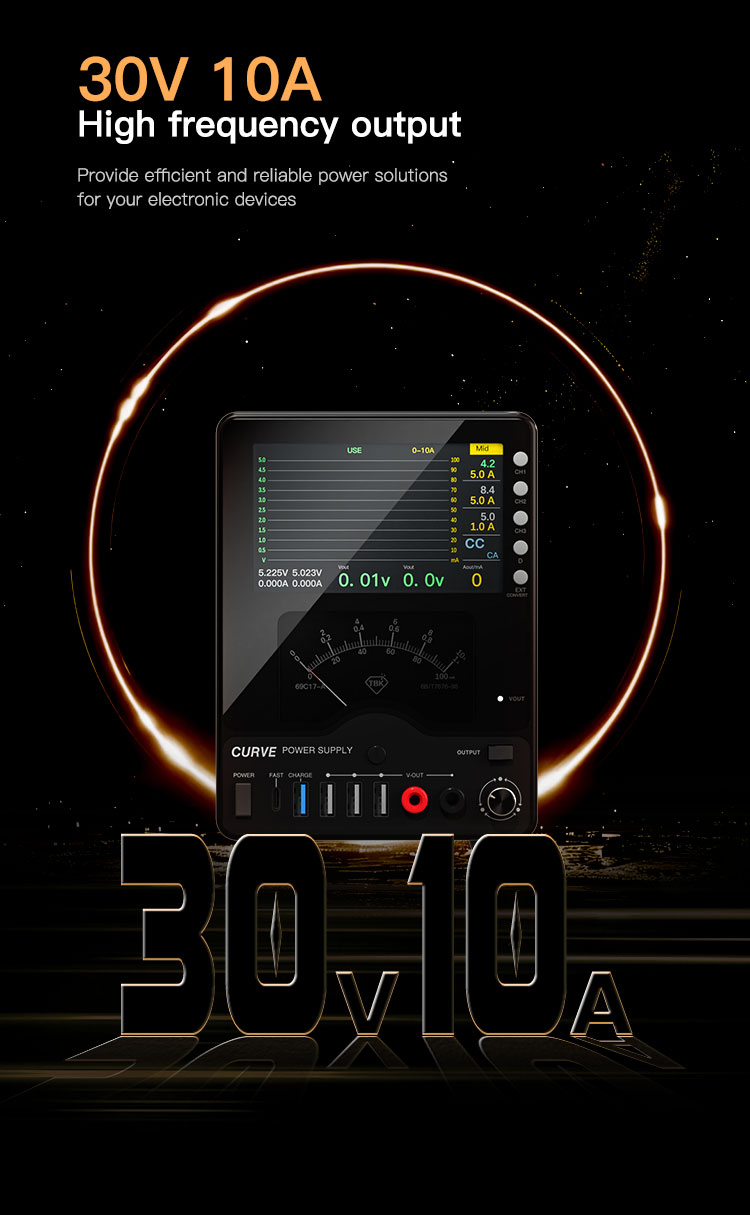

TBK 218 Adjustable DC Bench Power Supply, 30V 10A with LCD Waveform Display.


The TBK-218 is a professional DC regulated power supply designed for reliability and precision. It delivers a stable and adjustable output of up to 30V and 10A, making it suitable for a wide range of applications, including electronics repair, lab testing, and hobbyist projects.
This unit features a unique dual-display system: a large 4.3-inch color LCD screen and a classic analog pointer meter. The screen provides clear digital readouts and can also display real-time voltage and current waveforms, helping you visualize power consumption dynamically. The high-sensitivity analog meter offers three switchable ranges for precise current measurement. Powered by a robust 300W toroidal transformer, the TBK-218 ensures efficient and stable performance even under heavy loads. Additional functions like a simple oscilloscope, short-circuit repair mode, and multiple front-facing USB ports make it a versatile all-in-one tool for your workbench.

Adjustable High-Power Output: Provides a variable DC output from 0-30V and 0-10A.

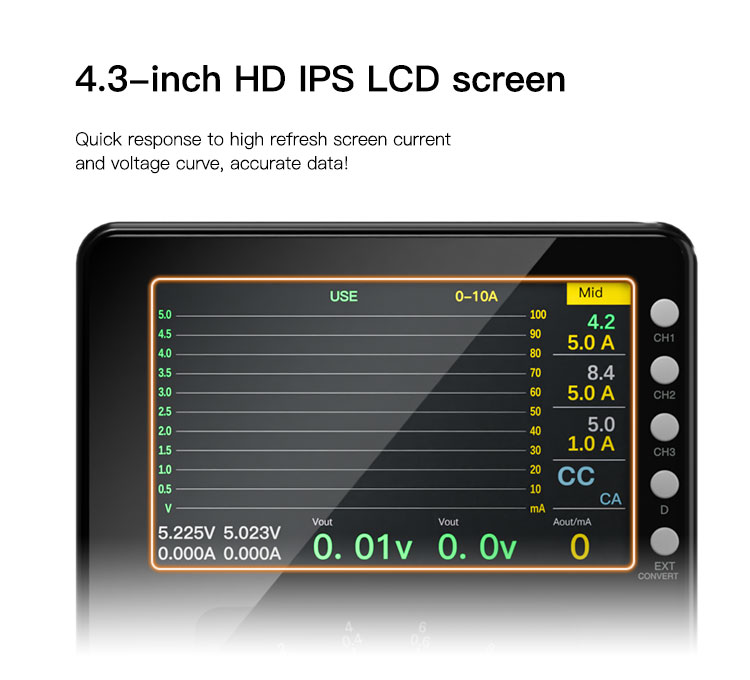

Dual Display System: Combines a 4.3-inch HD IPS screen for digital values and waveforms with a large, high-sensitivity analog ammeter.

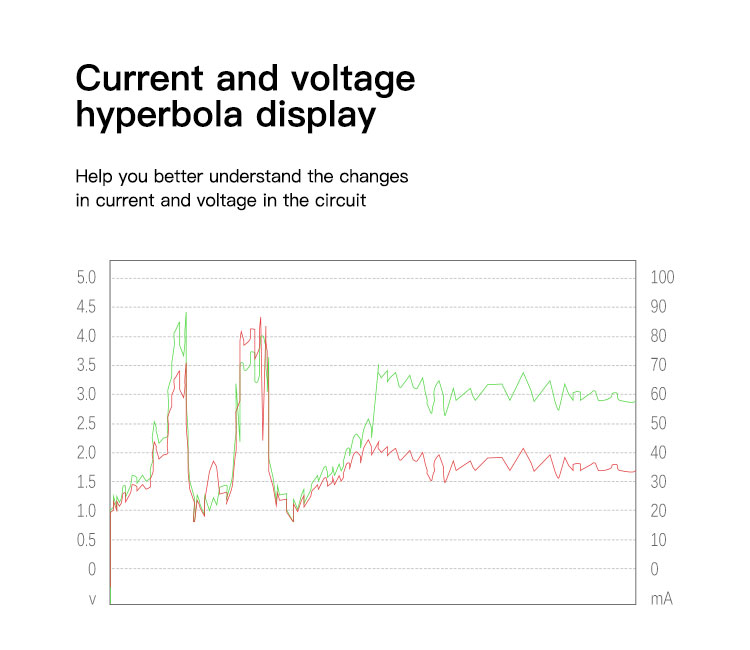

Real-time Waveform Graph: The color screen plots live voltage and current curves to help analyze circuit behavior.

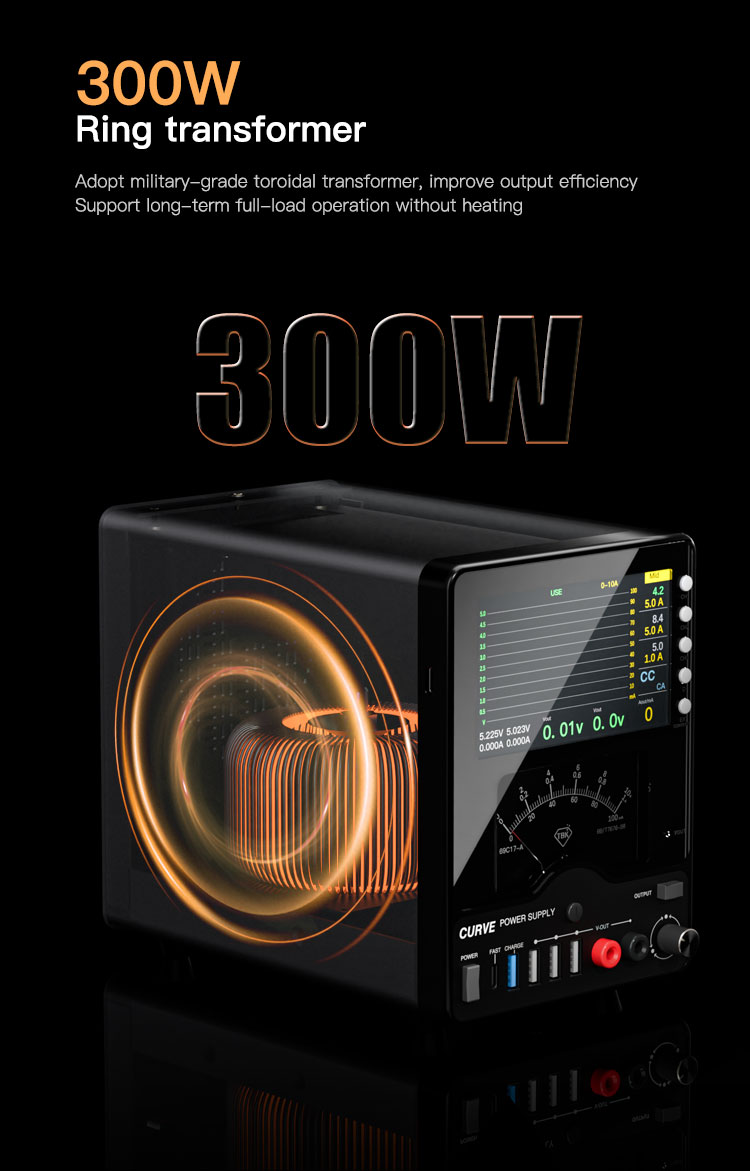

Stable Power Core: Built with a 300W toroidal transformer for efficient, low-heat, and consistent power delivery.
Integrated Functions: Includes a simple oscilloscope mode, diode measurement, and a dedicated short-circuit repair function.

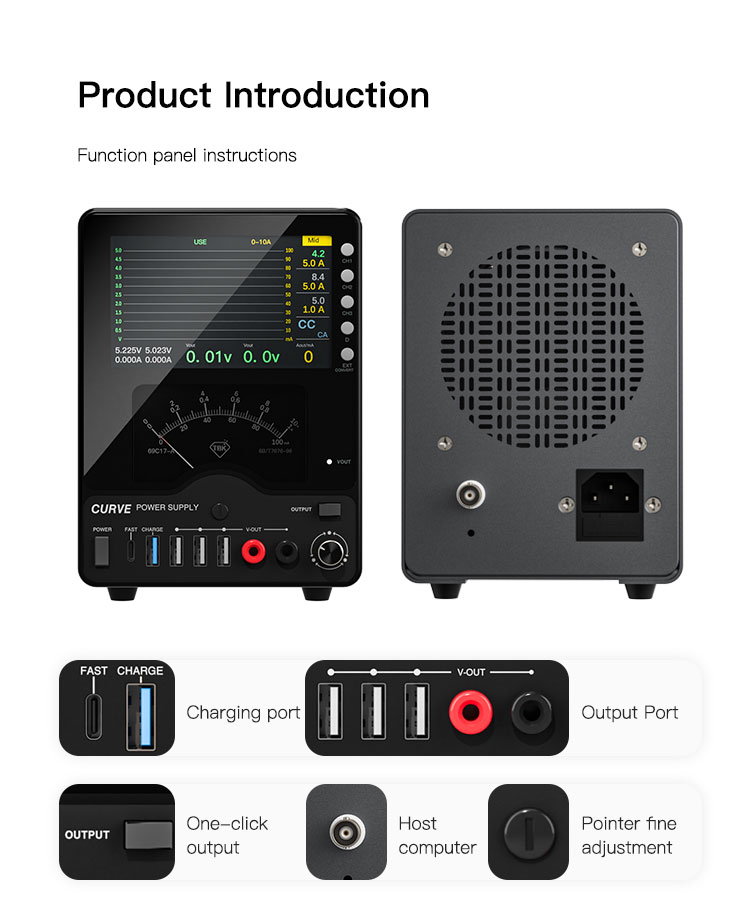

Versatile Connectivity: Features main output terminals, a fast-charging USB port, multiple standard USB ports, and a connection for host computer control.

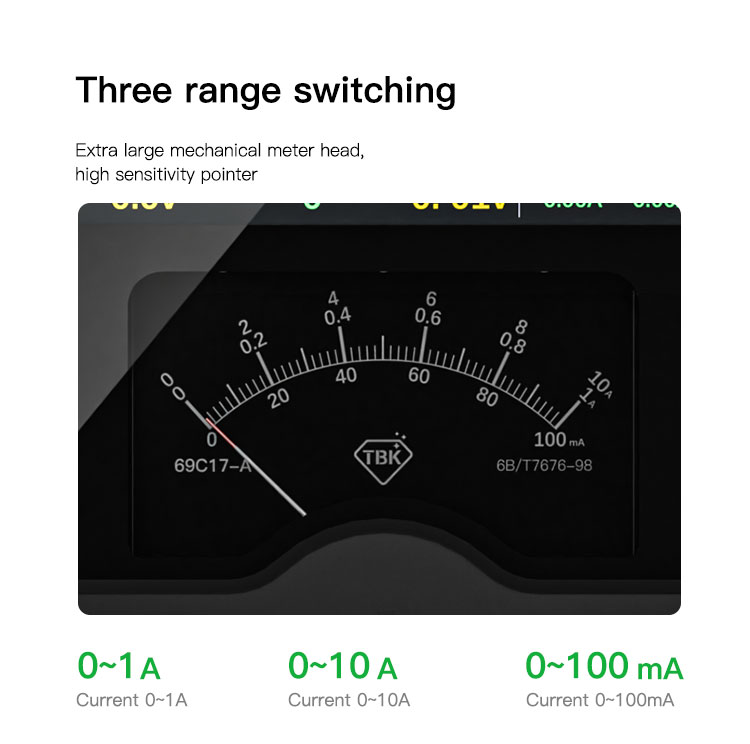

Three-Range Analog Meter: The physical pointer meter can be switched between 0-100mA, 0-1A, and 0-10A ranges for detailed current monitoring.

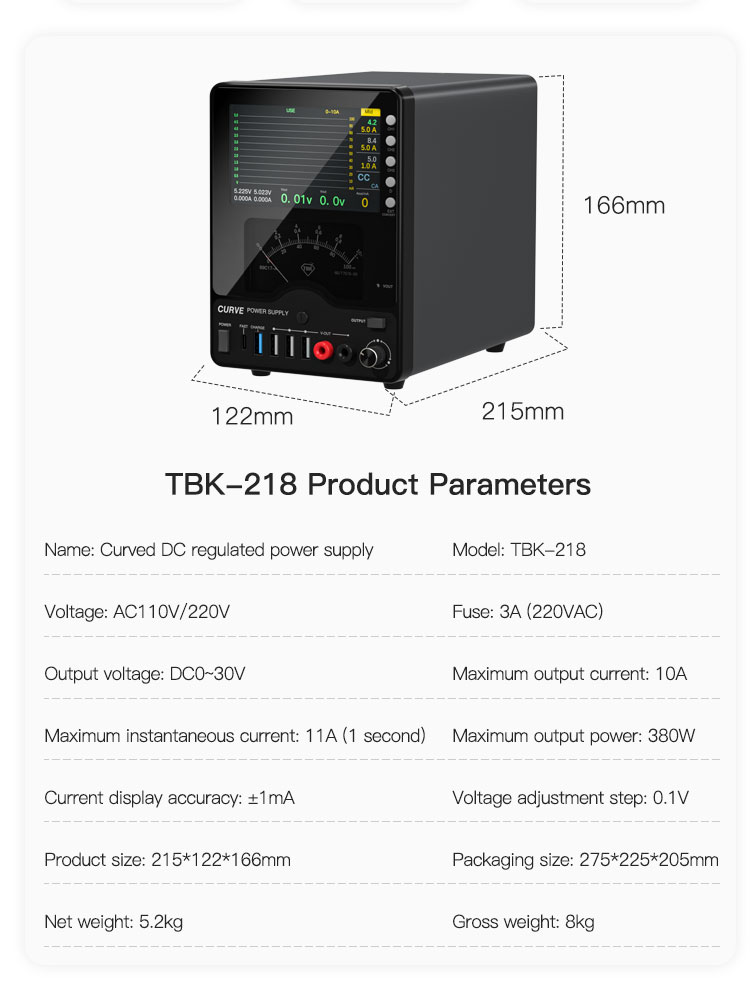

Model TBK-218
Input Voltage AC 110V / 220V
Output Voltage DC 0 - 30V
Maximum Output Current 10A
Maximum Instantaneous Current 11A (for 1 second)
Maximum Output Power 380W
Current Display Accuracy ±1mA
Voltage Adjustment Step 0.1V
Product Dimensions 215 x 122 x 166 mm
Net Weight 5.2 kg
Gross Weight 8 kg
