TBK 216 6-in-1 DC Power Supply for Phone & Motherboard Repair

  • Product Code: TBK 216 DC Power Supply
  • Availability: In Stock
  • 85.00$

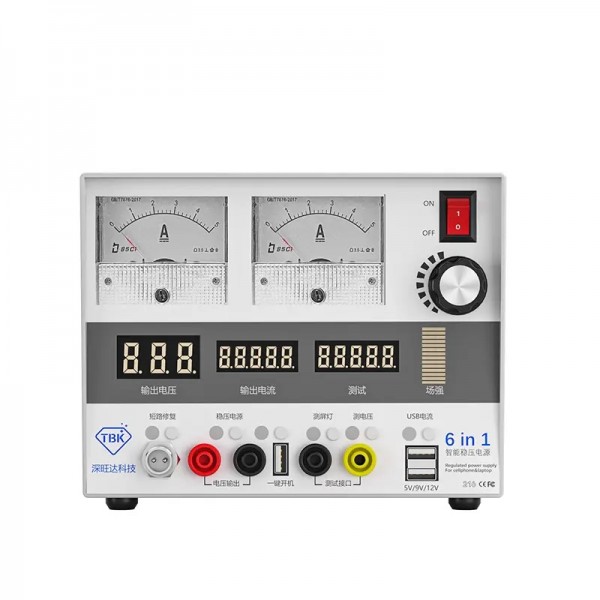

TBK 216 6-in-1 DC Power Supply for Phone & Motherboard Repair.

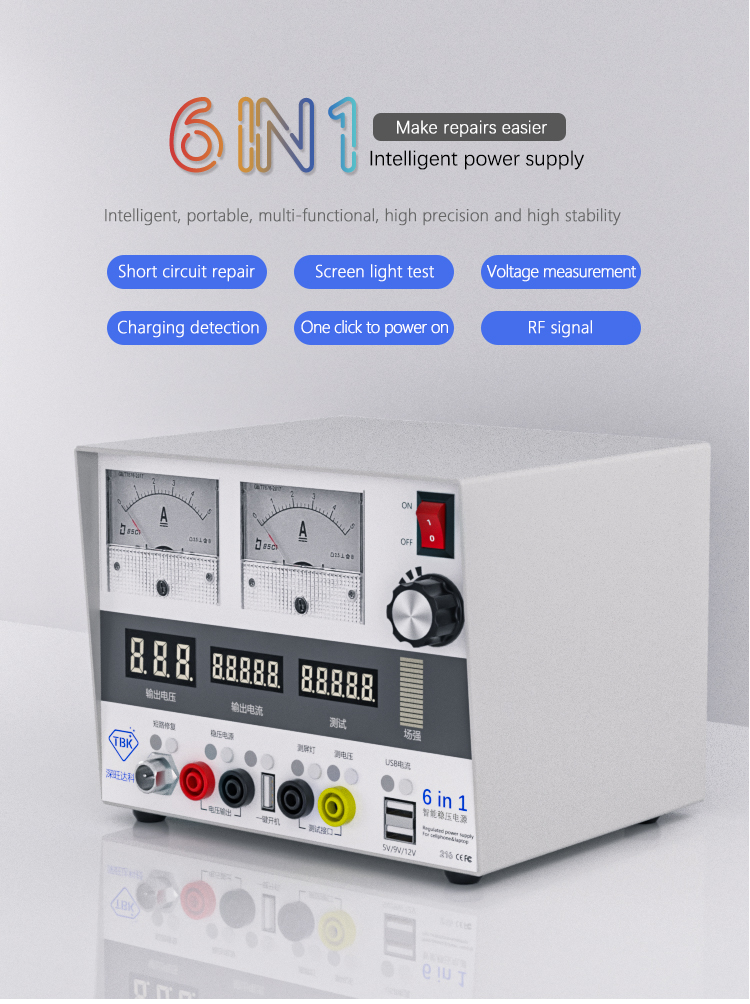

The TBK-216 is a versatile 6-in-1 intelligent power supply designed to simplify electronics repair. This compact and high-precision tool combines several essential functions into one convenient unit for technicians. It is built to diagnose and repair a wide range of issues, from motherboard short circuits and screen backlight failures to charging problems. The device also includes features for precise voltage measurement, direct power-on for phones, and RF signal detection, making it a highly practical and efficient addition to any repair workbench.

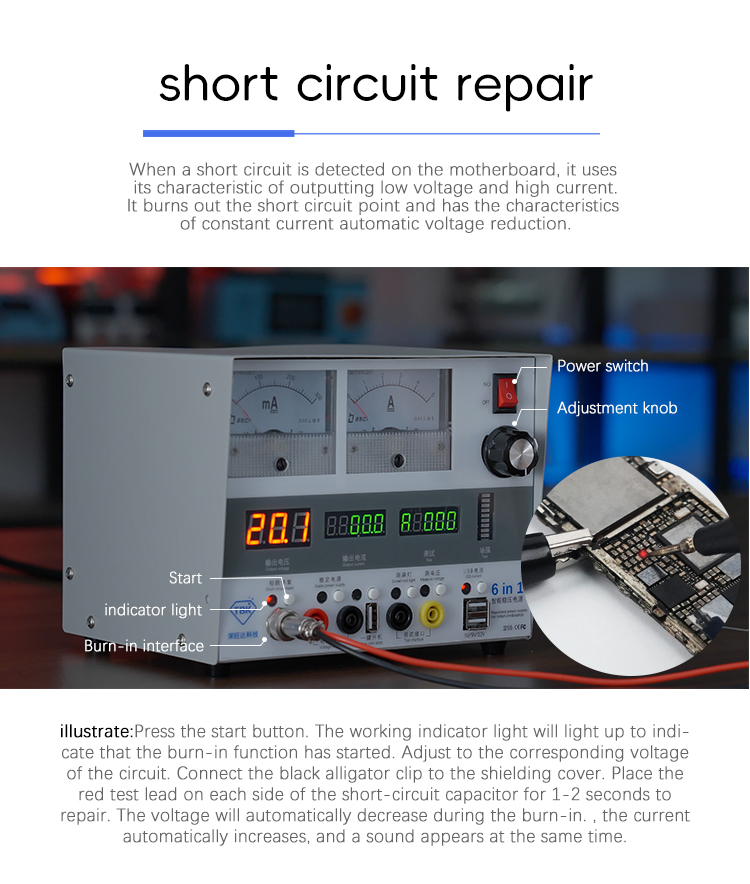

Short Circuit Repair: Safely burns out motherboard short circuits using a controlled low-voltage, high-current output.

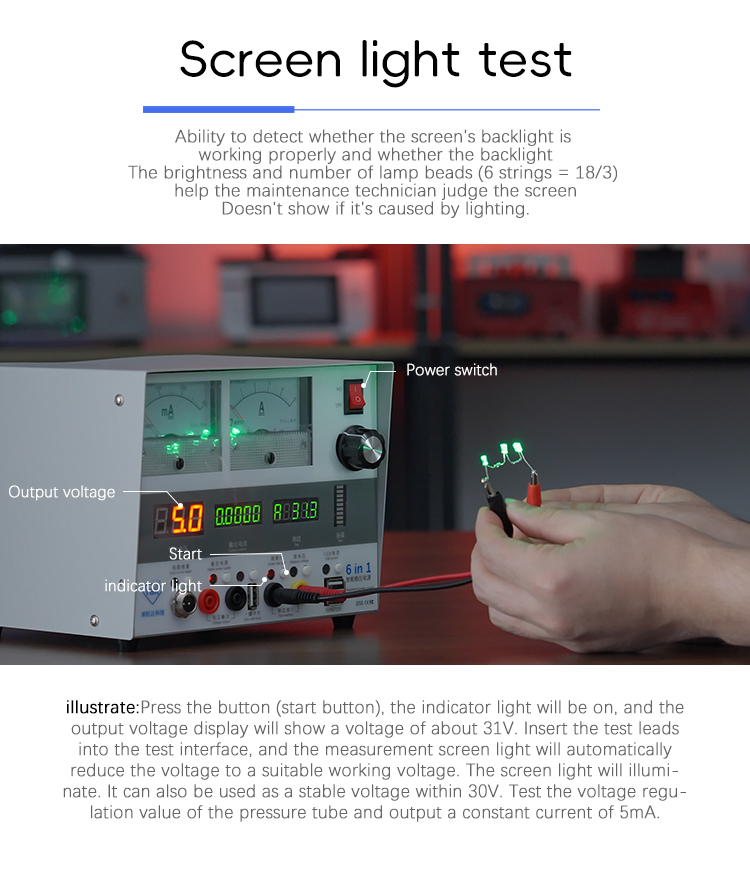

Screen Light Test: Detects and tests the functionality of screen backlights.
Voltage Measurement: Accurately measures the voltage of various motherboard components and batteries.

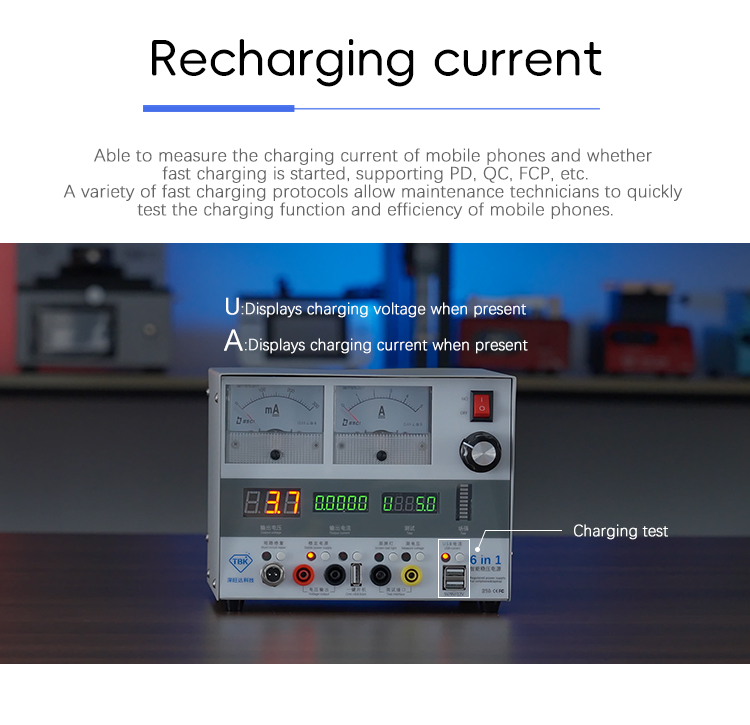

Charging Detection: Measures charging current and supports testing for fast charging protocols (PD, QC, FCP).

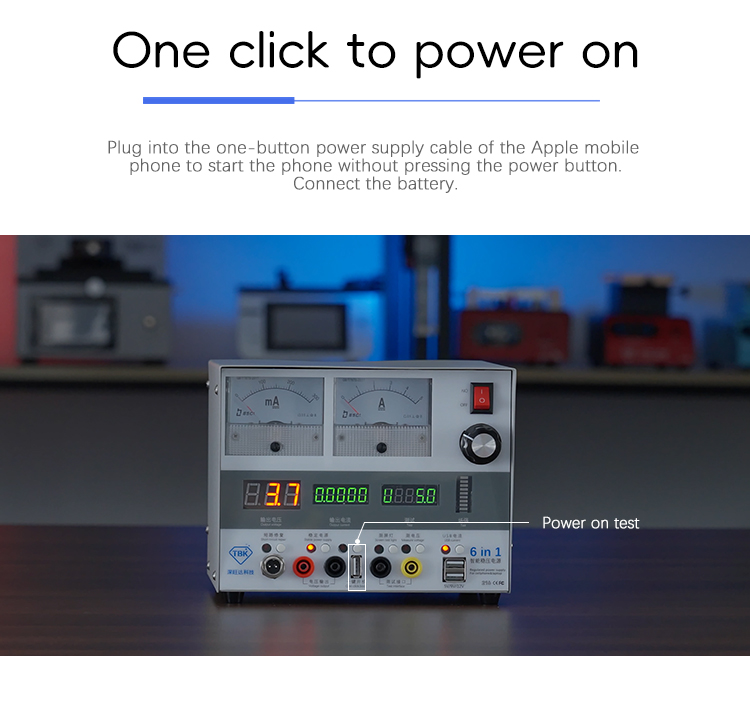

One-Click Power On: Allows you to power on iPhones directly without using the power button, ideal for testing.

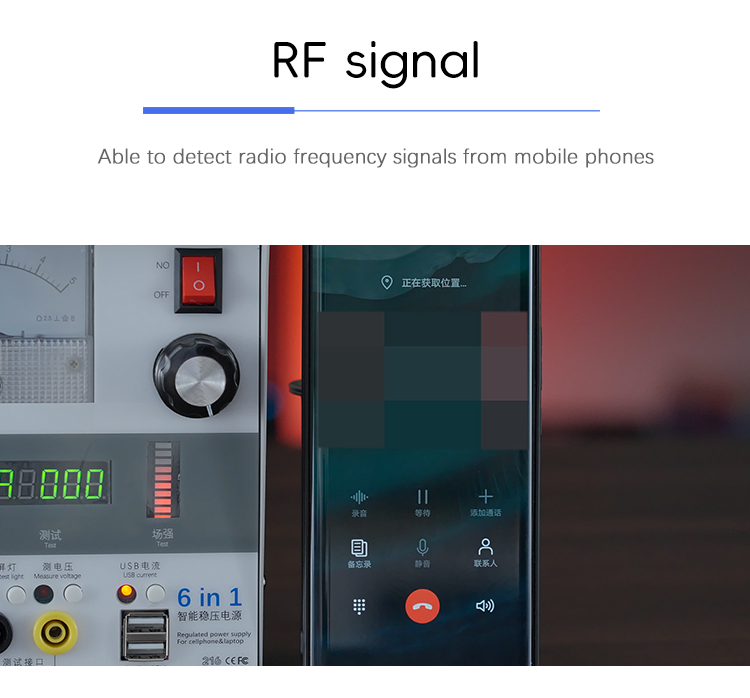

RF Signal Detection: Detects the presence and strength of radio frequency signals from mobile phones.

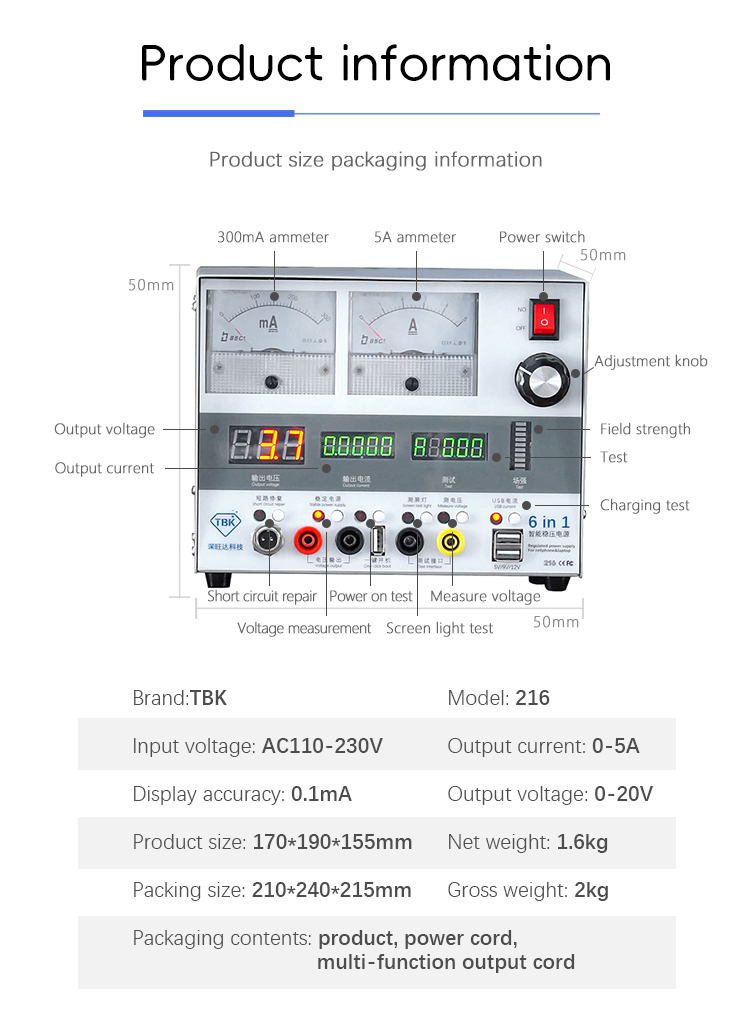

Brand: TBK
Model: 216
Input Voltage: AC 110-230V
Output Voltage: 0-20V
Output Current: 0-5A
Display Accuracy: 0.1mA
Product Size: 170 x 190 x 155mm
Net Weight: 1.6kg
Package Contents: Product, power cord, multi-function output cord.
